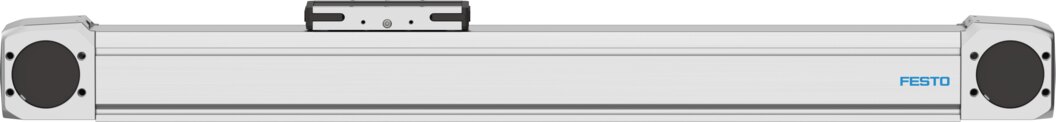

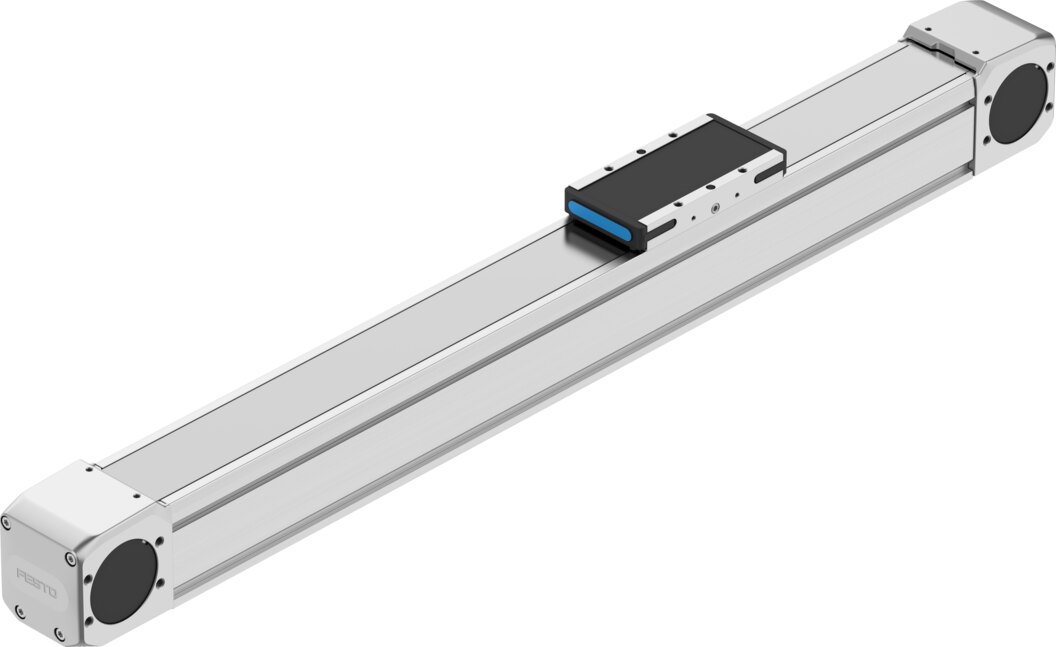

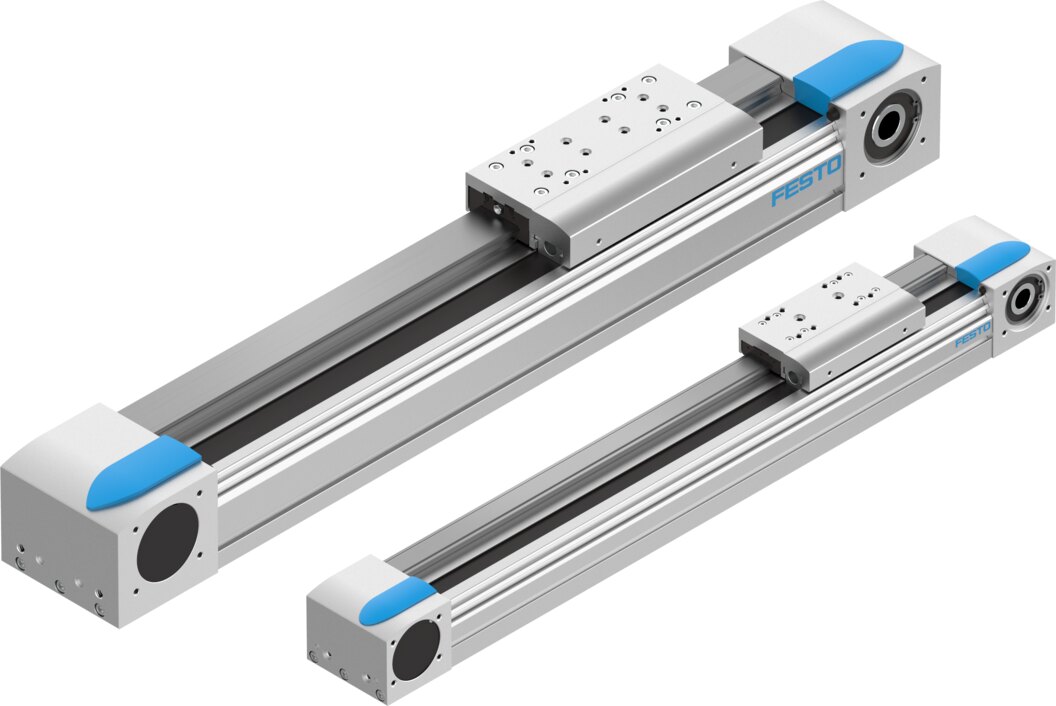

Toothed belt axis stroke 500 mm up to 3 m/s ELGD-TB-KF-60-500-0H-PU2 - Festo 8192346
The toothed belt axis ELGD-TB-KF-60-500-0H-PU2 moves loads over a 500 mm stroke and returns to position within ±0.04 mm. Toothed belt with 3 mm pitch and 99 mm/U feed constant, feed force up to 350 N and travel speed up to 3 m/s. Suitable for stepper and servo motors, degree of protection IP40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo toothed belt axis ELGD-TB-KF-60-500-0H-PU2 at a glance: 500 mm stroke, size 60, up to 3 m/s. The toothed belt with 3 mm pitch delivers 99 mm feed per revolution, allowing speeds up to 3 m/s at 100 m/s² acceleration.
Advantages
- Repeatability of ±0.04 mm over the full 500 mm stroke.
- Up to 3 m/s and 100 m/s² acceleration for short cycle times.
- Feed force up to 350 N in the direction of motion.
- Recirculating ball bearing guide for transverse forces up to 2200 N and moments up to 38 Nm.
- Lifetime lubrication, reference service life 5000 km.
- Cleanroom class 6 to ISO 14644-1 (extraction: class 4).
Application
The toothed belt axis ELGD-TB-KF-60-500-0H-PU2 suits long, fast travel over 500 mm in handling and gantry systems. Mounting position any, ambient temperature 0 to 60 °C. Designed for mounting stepper and servo motors. Price-list weight 4.7 kg.
Technical data
| Type | ELGD-TB-KF-60-500-0H-PU2 |
|---|---|
| Effective diameter of drive pinion | 31.51 mm |
| Working stroke | 500 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Toothed-belt pitch | 3 mm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With toothed belt |
| Type of motor | Stepper motor, servo motor |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 100 m/s² |
| Maximum speed | 3 m/s |
| Repetition accuracy | ±0.04 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), class 6 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.000125 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 485200 mm⁴ |
| 2nd moment of area Iz | 730600 mm⁴ |
| Maximum drive torque | 5.5 Nm |
| Maximum force Fy | 2200 N |
| Maximum force Fz | 2200 N |
| Maximum force Fy total axis | 1945 N |
| Maximum force Fz total axis | 2000 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Maximum idle running transfer resistance | 29.8 N |
| Maximum moment Mx | 38 Nm |
| Maximum moment My | 15 Nm |
| Maximum moment Mz | 15 Nm |
| Maximum moment Mx total axis | 41 Nm |
| Maximum moment My total axis | 36 Nm |
| Maximum moment Mz total axis | 36 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 157 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Distance between slide surface and guide centre | 49 mm |
| Maximum feed force Fx | 350 N |
| Frictional torque independent of load | 0.5 Nm |
| Torsional mass moment of inertia It | 192900 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.3128 kgcm² |
| Mass moment of inertia JL per kg of working load | 2.4822 kgcm² |
| Mass moment of inertia JO | 2.1016 kgcm² |
| Feed constant | 99 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 443 g |
| Product weight | 4936 g |
| Basic weight for 0 mm stroke | 2486 g |
| Additional weight per 10 mm stroke | 49 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, maximum 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | N48 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material pulleys | High-alloy stainless steel |
| Material slide | Wrought aluminium alloy |
| Material toothed belt | Polyurethane with steel cord |
| Weight (price list) | 4.7 kg |
| Weight | 4.7 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-TB-KF-60-500-0H-PU2 |
| EAN | 4052568644925 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 500 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
