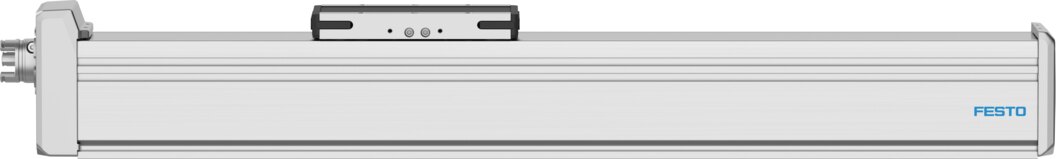

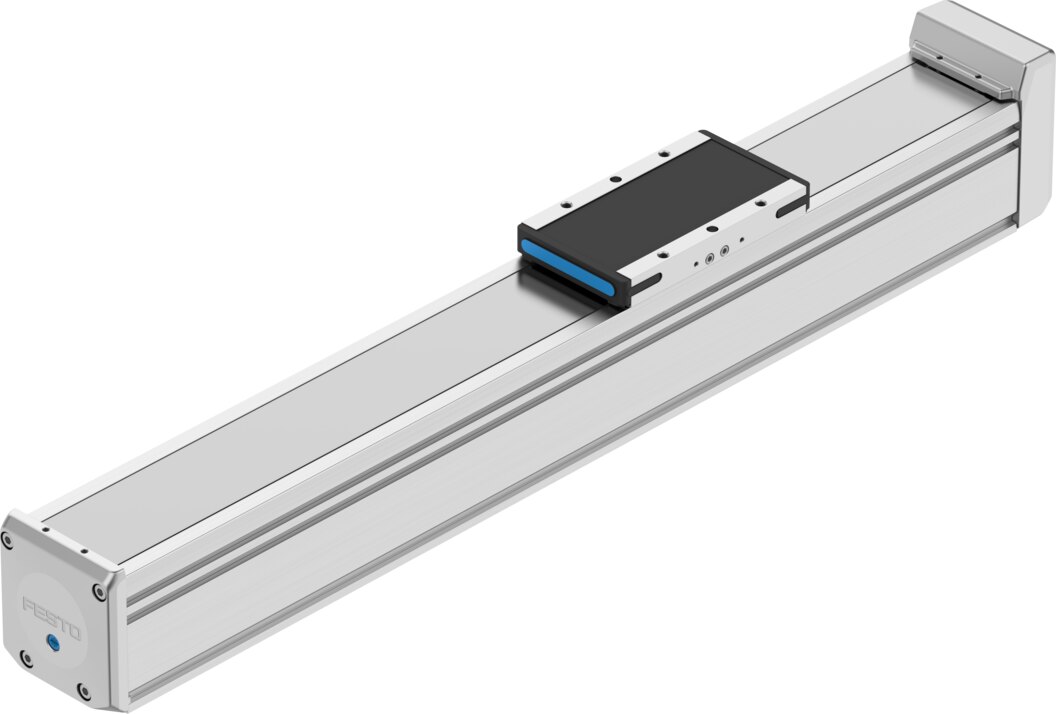

Ball screw axis size 80 stroke 800 mm pitch 5 mm ELGD-BS-KF-80-800-0H-5P - Festo 8192273
Over a working stroke of 800 mm, the ball screw axis ELGD-BS-KF-80-800-0H-5P positions loads in size 80 at up to 0.18 m/s. Repetition accuracy is ±0.01 mm and feed force reaches up to 2650 N. Per motor revolution the slide travels 5 mm via the ball screw. Weight 10 kg. Festo part number 8192273.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For 800 mm of stroke travelled repeatably, the ball screw axis ELGD-BS-KF-80-800-0H-5P provides up to 0.18 m/s at ±0.01 mm repetition accuracy.
Benefits
- Up to 0.18 m/s travel speed and 15 m/s² acceleration for short cycle times
- Repetition accuracy of ±0.01 mm for reproducible positions
- Feed force up to 2650 N
- Recirculating ball bearing guide for transverse forces up to 3906 N (Fy) and 3913 N (Fz) and moments up to 42 Nm (My)
- Spindle pitch of 5 mm/rev with a 16 mm spindle diameter for a defined feed per revolution
- Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Applications
Positioning and infeed tasks with 800 mm of stroke where feed force and repeatability count, for example in assembly and test equipment. Suitable drives are stepper and servo motors, with motor mounting to interface code T46 for the ELGD-BS-KF-80-800-0H-5P. Any mounting position is possible.
Technical data
| Type | ELGD-BS-KF-80-800-0H-5P |
|---|---|
| Festo part number | 8192273 |
| Working stroke | 800 mm |
| Size | 80 |
| Stroke reserve | 0 mm |
| Ball screw reversing backlash | ±0.02 mm |
| Spindle diameter | 16 mm |
| Spindle pitch | 5 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, Servo motor |
| Spindle type | Ball screw |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 2211 1/min |
| Maximum speed | 0.18 m/s |
| Repetition accuracy | ±0.01 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.002 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 1213000 mm⁴ |
| 2nd moment of area Iz | 2052000 mm⁴ |
| Idle torque at vmax | 0.172 Nm |
| Idle torque at vmin | 0.065 Nm |
| Maximum force Fy | 3906 N |
| Maximum force Fz | 3913 N |
| Maximum force Fy total axis | 2500 N |
| Maximum force Fz total axis | 2500 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 17576 N |
| Maximum moment Mx | 95 Nm |
| Maximum moment My | 42 Nm |
| Maximum moment Mz | 42 Nm |
| Maximum moment Mx total axis | 100 Nm |
| Maximum moment My total axis | 42 Nm |
| Maximum moment Mz total axis | 42 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 422 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 162 Nm |
| Distance between slide surface and guide centre | 62 mm |
| Maximum radial force at drive shaft | 500 N |
| Maximum feed force Fx | 2650 N |
| Torsional mass moment of inertia It | 405000 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.39016 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.00633 kgcm² |
| Mass moment of inertia JO | 0.10619 kgcm² |
| Feed constant | 12 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 1014 g |
| Product weight | 10347 g |
| Basic weight for 0 mm stroke | 3147 g |
| Additional weight per 10 mm stroke | 90 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max, 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | T46 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Wrought aluminium alloy |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight | 10 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-BS-KF-80-800-0H-5P |
| EAN | 4052568644642 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 800 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
