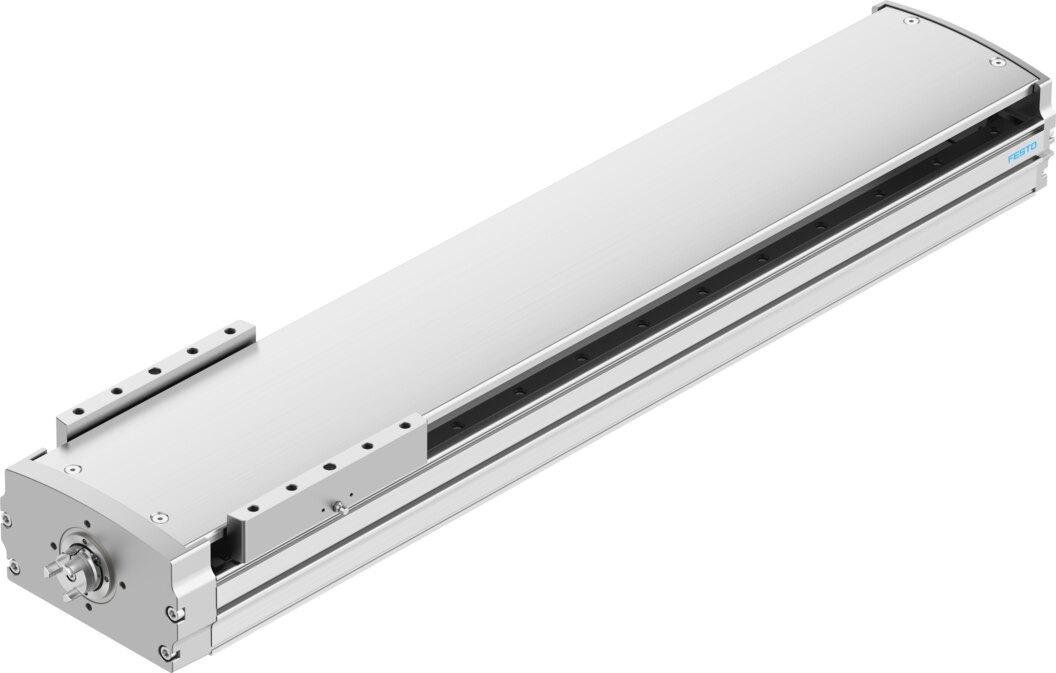

Ball screw axis size 60 stroke 600 mm pitch 10 mm ELGD-BS-KF-60-600-0H-10P - Festo 8192265
Up to 0.46 m/s travel speed and 15 m/s² acceleration: the Festo ball screw axis ELGD-BS-KF-60-600-0H-10P covers a working stroke of 600 mm in size 60. Repetition accuracy is ±0.01 mm and feed force reaches up to 1550 N. Per motor revolution the slide travels 10 mm via the ball screw. Weight 4.9 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
600 mm of working stroke, up to 0.46 m/s and ±0.01 mm repetition accuracy: these are the key values of the Festo ball screw axis ELGD-BS-KF-60-600-0H-10P in size 60.
Why this axis
- Up to 0.46 m/s travel speed and 15 m/s² acceleration for short cycle times
- Repetition accuracy of ±0.01 mm for reproducible positions
- Feed force up to 1550 N
- Recirculating ball bearing guide for transverse forces up to 2200 N (Fy) and 2200 N (Fz) and moments up to 15 Nm (My)
- Spindle pitch of 10 mm/rev with a 12 mm spindle diameter for a defined feed per revolution
- Cleanroom suitable: Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Applications
Typical uses are infeed axes, test stations and joining processes with 600 mm of travel in size 60. Suitable drives are stepper and servo motors, with motor mounting to interface code T42 for the ELGD-BS-KF-60-600-0H-10P. Any mounting position is possible.
Technical data
| Type | ELGD-BS-KF-60-600-0H-10P |
|---|---|
| Festo part number | 8192265 |
| Working stroke | 600 mm |
| Size | 60 |
| Stroke reserve | 0 mm |
| Ball screw reversing backlash | ±0.02 mm |
| Spindle diameter | 12 mm |
| Spindle pitch | 10 mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, Servo motor |
| Spindle type | Ball screw |
| Functional principle of measuring system | Incremental |
| Position detection | For inductive sensors |
| Maximum acceleration | 15 m/s² |
| Maximum rotational speed | 2731 1/min |
| Maximum speed | 0.46 m/s |
| Repetition accuracy | ±0.01 mm |
| Duty cycle | 100% |
| LABS (PWIS) conformity | VDMA24364-C1-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1 |
| Storage temperature | -20 to 60 °C |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 60 °C |
| Impact energy in end positions | 0.001 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| 2nd moment of area Iy | 508600 mm⁴ |
| 2nd moment of area Iz | 685700 mm⁴ |
| Idle torque at vmax | 0.14 Nm |
| Idle torque at vmin | 0.047 Nm |
| Maximum force Fy | 2200 N |
| Maximum force Fz | 2200 N |
| Maximum force Fy total axis | 930 N |
| Maximum force Fz total axis | 1300 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 9208 N |
| Maximum moment Mx | 37 Nm |
| Maximum moment My | 15 Nm |
| Maximum moment Mz | 15 Nm |
| Maximum moment Mx total axis | 31 Nm |
| Maximum moment My total axis | 34 Nm |
| Maximum moment Mz total axis | 26 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 157 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 60 Nm |
| Distance between slide surface and guide centre | 60 mm |
| Maximum radial force at drive shaft | 230 N |
| Maximum feed force Fx | 1550 N |
| Torsional mass moment of inertia It | 52300 mm⁴ |
| Mass moment of inertia JH per metre of stroke | 0.15716 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.02533 kgcm² |
| Mass moment of inertia JO | 0.0635 kgcm² |
| Feed constant | 10 mm/U |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass | 535 g |
| Product weight | 5014 g |
| Basic weight for 0 mm stroke | 1774 g |
| Additional weight per 10 mm stroke | 54 g |
| Dynamic deflection (moving load) | 0.05% of the axis length, max, 0.5 mm |
| Static deflection (load in standstill) | 0.1% of the axis length |
| Interface code, actuator | T42 |
| Material end cap | Aluminium gravity die-cast, painted |
| Material profile | Anodised wrought aluminium alloy |
| Note on materials | RoHS compliant |
| Material cover tape | High-alloy stainless steel |
| Material drive cover | Aluminium gravity die-cast, painted |
| Material guide slide | Steel |
| Material guide rail | Steel |
| Material slide | Wrought aluminium alloy |
| Material ball screw nut | Steel |
| Material spindle | Steel |
| Weight | 4.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | ELGD-BS-KF-60-600-0H-10P |
| EAN | 4052568644567 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 600 |
| Housing material | Aluminium, anodised |
| Protection rating | IP40 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
