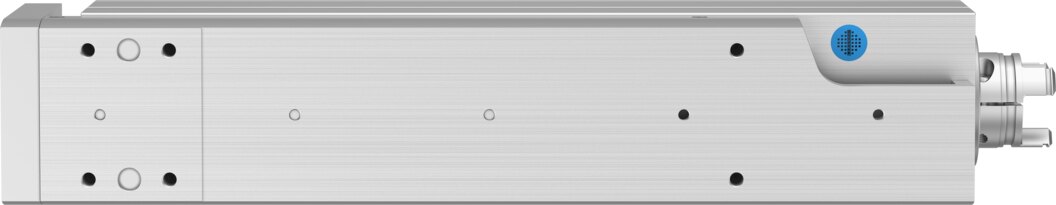

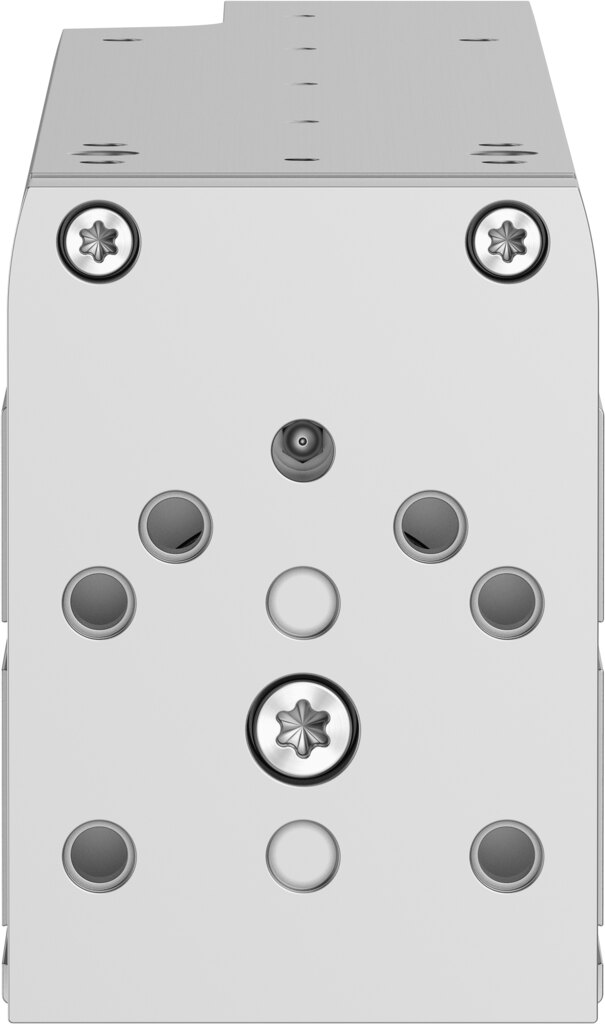

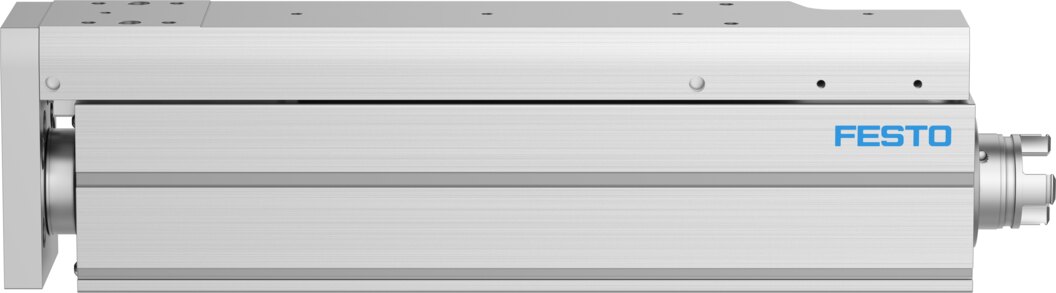

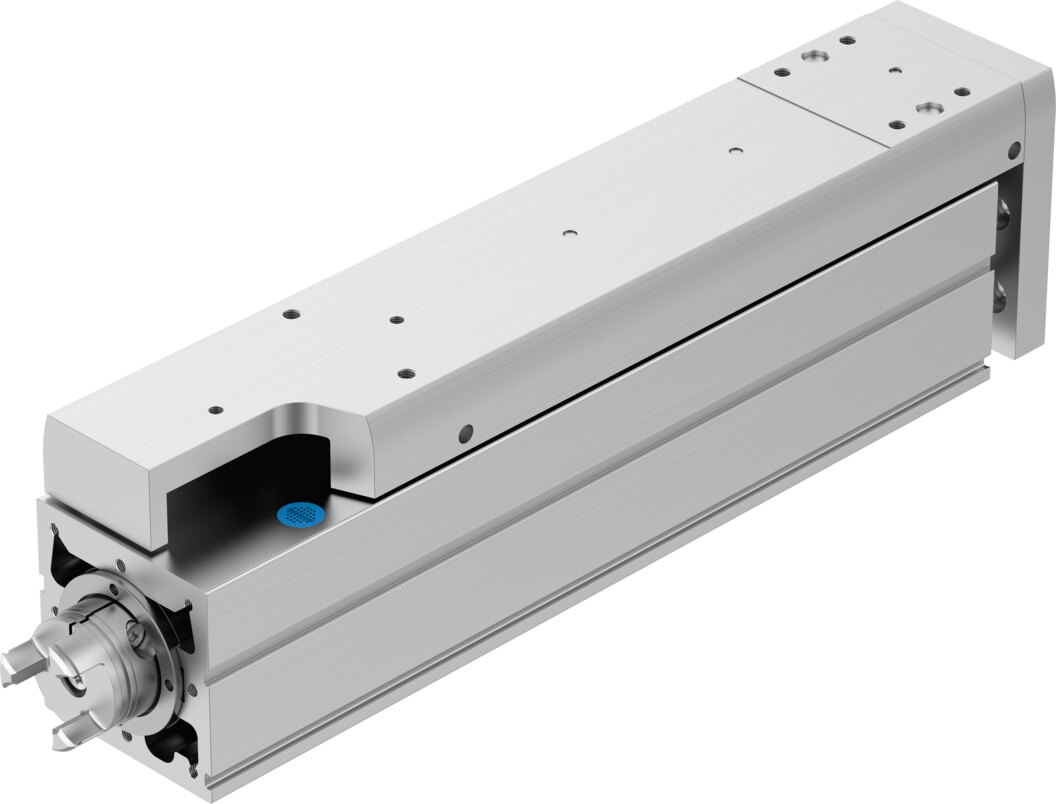

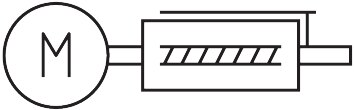

Mini slide with ball screw, size 60, stroke 200 mm, lead 5 mm/rev EGSC-BS-KF-60-200-5P - Festo 8162085
Compact mini slide in size 60 with 200 mm stroke and 5 mm/rev spindle pitch. Up to 0.25 m/s, ±0.015 mm repeatable and guided for transverse forces up to 4937 N. The motor is mounted separately.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For precise movements under transverse load, the EGSC-BS-KF-60-200-5P features a recirculating ball bearing guide and a ball screw (12 mm). Size 60, 200 mm stroke, up to 250 N feed force.
Benefits
- Repeatable: ±0.015 mm at up to 0.25 m/s and a maximum of 3000 1/min.
- Guided load capacity: transverse force Fy up to 4937 N, torque My up to 30 Nm, payload up to 25 kg.
- Flexible motor mounting: interface T42 for stepper or servo motor, referencing via fixed stop or reference switch.
- Quiet and clean: 55 dB(A) sound pressure level, Class 9 according to ISO 14644-1, suitable for battery production (F1a).
- Durable: lifetime lubrication, 5000 km reference service life, product weight 3455 g.
Applications
For placing, testing, dispensing and fine positioning in electronics and small-parts assembly. Position sensing via proximity switch, ambient temperature 0 to 50 °C, degree of protection IP40.
Technical data
| Working stroke | 200 mm |
|---|---|
| Size | 60 |
| Stroke reserve | 0 mm |
| Reversing backlash theoretical | 150 µm |
| Spindle diameter | 12 mm |
| Spindle pitch | 5 mm/rev |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Design | With ball screw |
| Type of motor | Stepper motor, Servo motor |
| Referencing | Positive fixed stop block, Negative fixed stop block, Reference switch |
| Spindle type | Ball screw |
| Position detection | Via proximity switch |
| Maximum acceleration | 5 m/s² |
| Maximum rotational speed | 3000 1/min |
| Maximum speed | 0.25 m/s |
| Repetition accuracy | ±0.015 mm |
| Duty cycle | 100% |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 9 according to ISO 14644-1 |
| Sound pressure level | 55 dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Impact energy in end positions | 0.000044 J |
| Note on the impact energy in the end positions | At maximum homing speed of 0.01 m/s |
| Dynamic basic load rating fixed bearing | 13321 N |
| Dynamic basic load rating linear guide | 13400 N |
| Dynamic basic load rating ball screw | 5900 N |
| Idle torque at vmax | 0.125 Nm |
| Idle torque at vmin | 0.032 Nm |
| Maximum force Fy | 4937 N |
| Maximum force Fz | 4937 N |
| Fy at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Fz at theoretical life value of 100 km (only guide consideration) | 13400 N |
| Maximum moment Mx | 20 Nm |
| Maximum moment My | 30 Nm |
| Maximum moment Mz | 30 Nm |
| Mx at theoretical life value of 100 km (only guide consideration) | 107 Nm |
| My at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Mz at theoretical life value of 100 km (only guide consideration) | 117 Nm |
| Maximum radial force at drive shaft | 230 N |
| Maximum feed force Fx | 250 N |
| Reference value effective load, horizontal | 25 kg |
| Reference value effective load, vertical | 25 kg |
| Static basic load rating ball screw | 10600 N |
| Static basic load rating linear guide | 26900 N |
| Mass moment of inertia JH per metre of stroke | 0.11539 kgcm² |
| Mass moment of inertia JL per kg of working load | 0.00633 kgcm² |
| Mass moment of inertia JO | 0.06624 kgcm² |
| Feed constant | 5 mm/rev |
| Static basic load rating fixed bearing | 7000 N |
| Reference service life | 5000 km |
| Maintenance interval | Lifetime lubrication |
| Moving mass for 0 mm stroke | 675 g |
| Additional moving mass per 10 mm stroke | 40 g |
| Product weight | 3455 g |
| Basic weight for 0 mm stroke | 1555 g |
| Additional weight per 10 mm stroke | 95 g |
| Type of mounting | With female thread, With centring sleeve, With accessories, Via cylindrical dowel pin |
| Interface code, actuator | T42 |
| Note on materials | RoHS compliant |
| Material guide slide | Bearing steel |
| Material guide rail | Bearing steel |
| Material housing | Anodised wrought aluminium alloy |
| Material yoke plate | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Material slide | Anodised wrought aluminium alloy |
| Material ball screw nut | Bearing steel |
| Material spindle | Bearing steel |
| Manufacturer | Festo |
| Hersteller-Nr | EGSC-BS-KF-60-200-5P |
| EAN | 4052568588267 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 200 |
| Housing material | Aluminium, anodised |
| Series | EGSC |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
