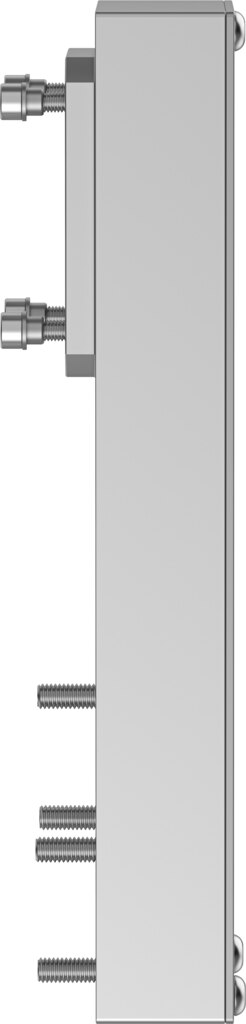

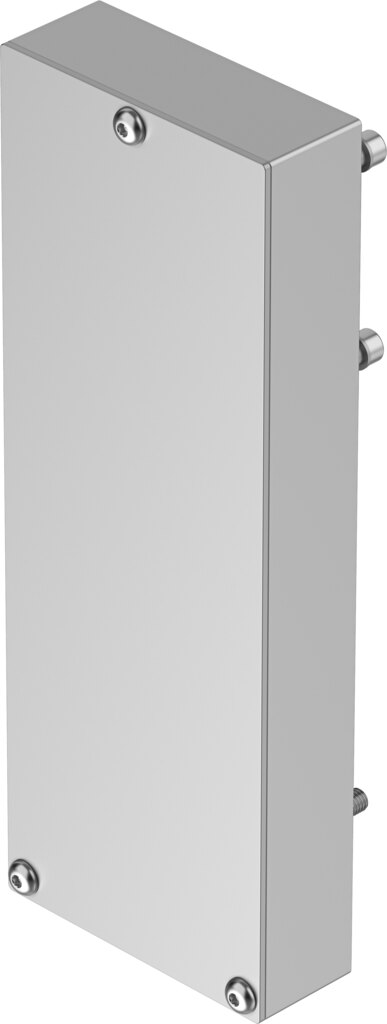

Parallel kit size 87 for motor mounting, actuator T46, motor 70AA or 70AB, 3 Nm EAMM-U-87-T46-70AA-147 - Festo 8126166
Where space along the axis is tight, the parallel kit EAMM-U-87-T46-70AA-147 mounts the motor (70AA or 70AB) next to the drive with interface T46. It transmits up to 3 Nm. Speed up to 3000 1/min, degree of protection IP40. Mass moment of inertia 41.2 kgmm².
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo parallel kit EAMM-U-87-T46-70AA-147 mounts the motor (interface 70AA or 70AB) parallel to the drive (interface T46). It transmits up to 3 Nm at a ratio of 1:1.
Benefits
- Transmittable torque 3 Nm between motor and drive
- Speed up to 3000 1/min
- Mass moment of inertia 41.2 kgmm² as input for drive sizing
- No-load driving torque 0.22 Nm
- Ratio 1:1, centre distance 147 mm
- Interfaces actuator T46, motor 70AA or 70AB
Applications
The EAMM-U-87-T46-70AA-147 is used whenever a motor with interface code 70AA or 70AB has to be fitted to an electric drive with interface T46. Typical applications are positioning axes in assembly, packaging and laboratory automation.
Technical data
| Size | 87 |
|---|---|
| Centre-to-centre distance | 147 mm |
| Mounting position | Any |
| Gear unit ratio | 1:1 |
| Max. rotational speed | 3000 1/min |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Mass moment of inertia | 41.2 kgmm² |
| Frictional torque independent of load | 0.22 Nm |
| Transmittable torque | 3 Nm |
| Product weight | 1037 g |
| Interface code, actuator | T46 |
| Interface code, motor in | 70AA, 70AB |
| Note on materials | RoHS compliant |
| Weight | 1.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-87-T46-70AA-147 |
| EAN | 4052568552695 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
