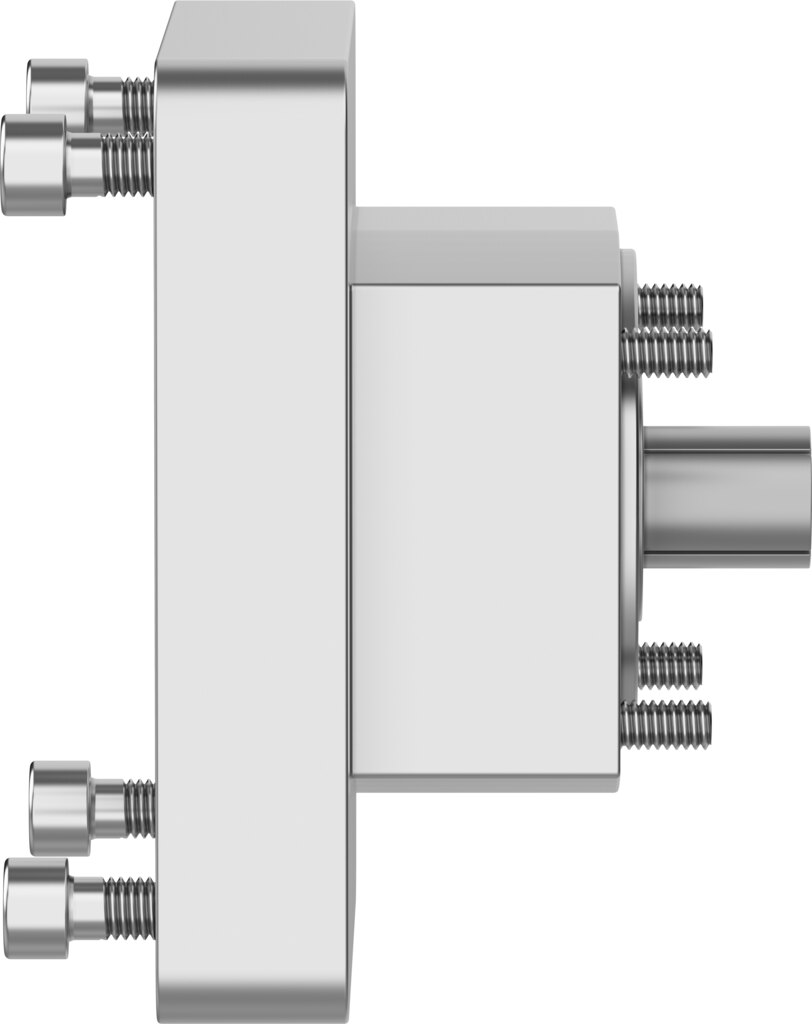

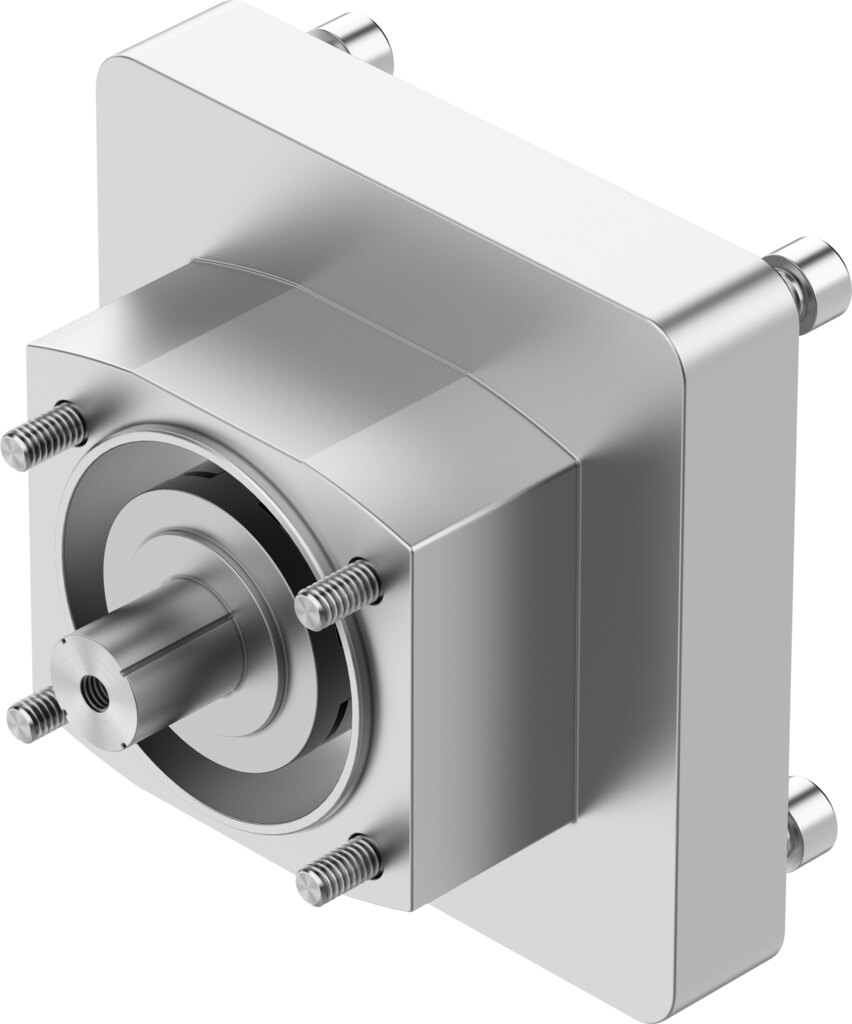

Axial kit for motor mounting, actuator N80, motor 140A or 150A, 47 Nm EAMM-A-N80-150A - Festo 8157277

Festo ✓ Original product Brand new

For axial motor mounting on drives with interface N80: the kit EAMM-A-N80-150A takes motors with code 140A or 150A and transmits a torque of up to 47 Nm. Speed up to 5500 1/min, degree of protection IP40. Mass moment of inertia 151 kgmm².

Net
€379.48
excl. VAT
Item FES-8157277
Manufacturer no. EAMM-A-N80-150A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-N80-150A connects a motor with interface code 140A or 150A coaxially to an electric drive with interface N80. Transmittable torque is 47 Nm, maximum speed 5500 1/min.

Benefits

  • Transmittable torque 47 Nm between motor and drive
  • Speed up to 5500 1/min
  • Mass moment of inertia 151 kgmm² as input for drive sizing
  • Interfaces actuator N80, motor 140A or 150A
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code N80, on the motor side 140A or 150A.

Technical data

Nominal length72.5 mm
Mounting positionAny
Max. rotational speed5500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia151 kgmm²
Transmittable torque47 Nm
Product weight2407 g
Interface code, actuatorN80
Interface code, motor in140A, 150A
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-N80-150A
EAN4052568597009
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
