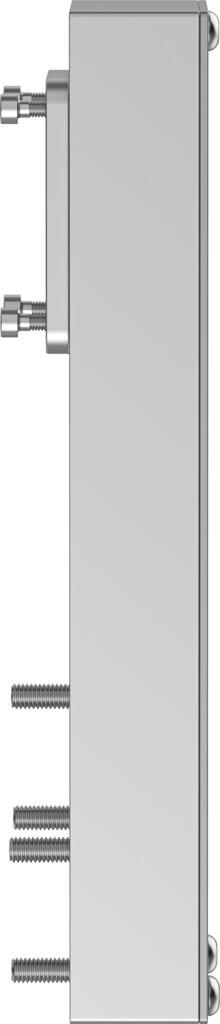

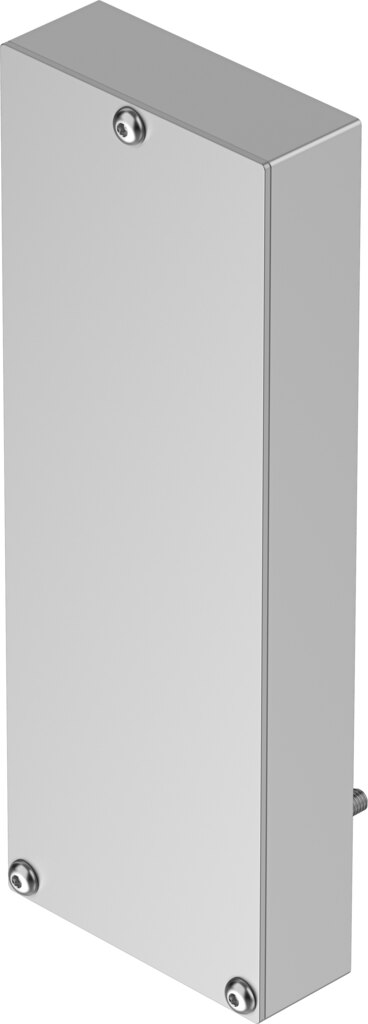

Parallel kit size 87 for motor mounting, actuator T46, motor 60RA, 3 Nm EAMM-U-87-T46-60RA-147 - Festo 8126163

Festo ✓ Original product Brand new

Motor alongside instead of in line with the axis: the kit EAMM-U-87-T46-60RA-147 connects motors with code 60RA to drives with interface T46 at up to 3 Nm torque. Speed up to 3000 1/min, degree of protection IP40. Mass moment of inertia 41.2 kgmm².

Net
€260.42
excl. VAT
Item FES-8126163
Manufacturer no. EAMM-U-87-T46-60RA-147
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Size 87, 3 Nm transmittable torque and interfaces for actuator T46 and motor 60RA: the parallel kit EAMM-U-87-T46-60RA-147 shortens the installed length because the motor sits next to the drive instead of behind it.

Benefits

  • Transmittable torque 3 Nm between motor and drive
  • Speed up to 3000 1/min
  • Mass moment of inertia 41.2 kgmm² as input for drive sizing
  • No-load driving torque 0.22 Nm
  • Ratio 1:1, centre distance 147 mm
  • Interfaces actuator T46, motor 60RA

Applications

When sizing the axis, the mass moment of inertia of 41.2 kgmm² and the transmittable torque of 3 Nm feed into the choice of motor and controller. The kit is mounted between motor (60RA) and drive (T46).

Technical data

Size87
Centre-to-centre distance147 mm
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed3000 1/min
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature0 to 50 °C
Mass moment of inertia41.2 kgmm²
Frictional torque independent of load0.22 Nm
Transmittable torque3 Nm
Product weight1015 g
Interface code, actuatorT46
Interface code, motor in60RA
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-U-87-T46-60RA-147
EAN4052568552664
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
