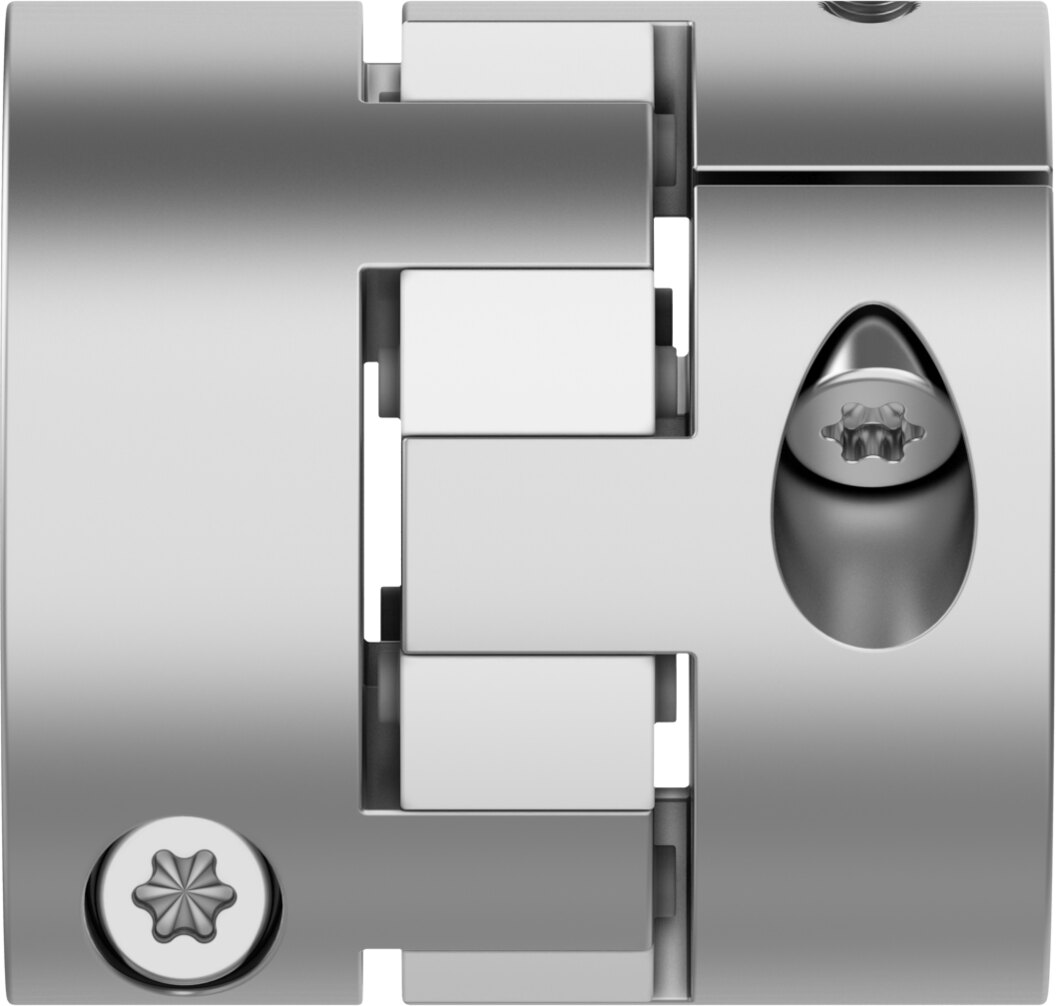

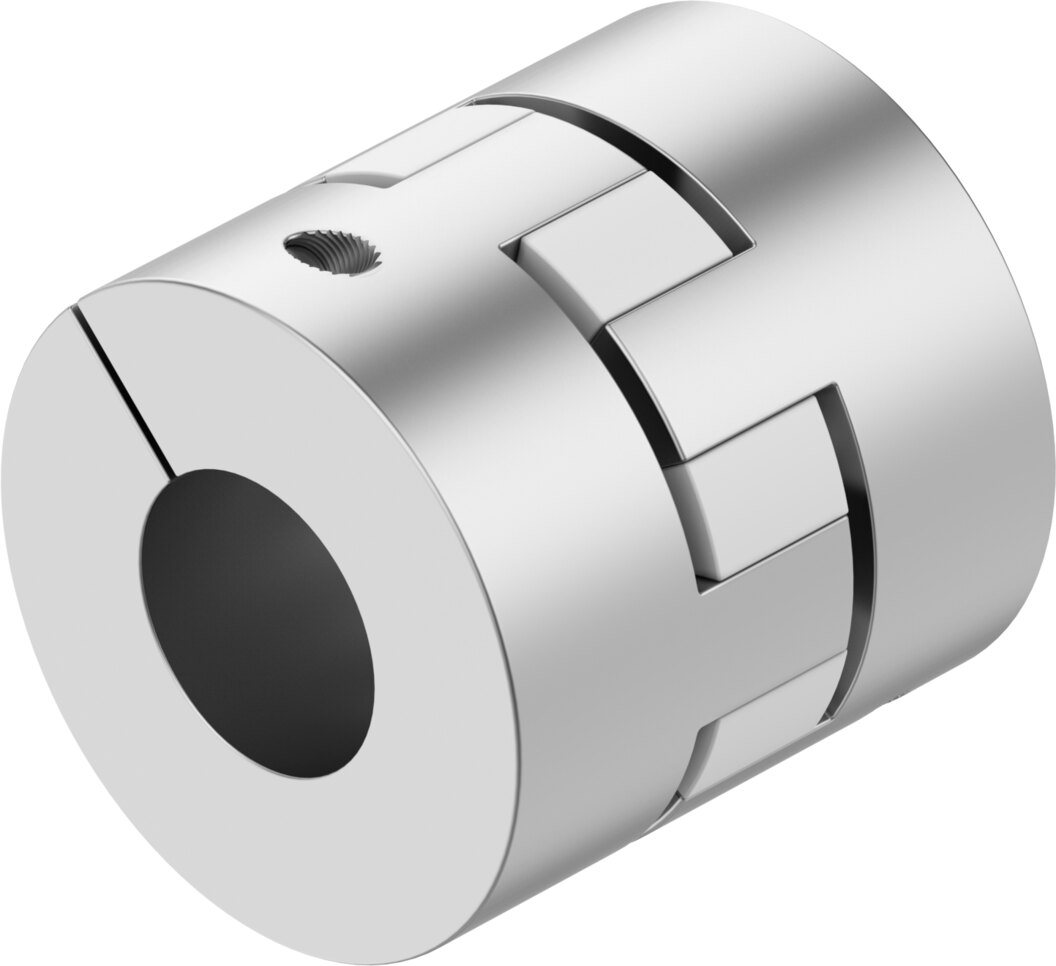

Coupling for motor mounting Ø 25/25 mm, 75 Nm EAMC-56-58-25-25-U - Festo 8203733

Festo ✓ Original product Brand new

Fitted between motor shaft and axis shaft, the coupling EAMC-56-58-25-25-U transmits the drive torque. The mounting diameters are 25 mm and 25 mm. Up to 75 Nm of torque is transmitted, speeds of up to 5500 1/min are permitted.

Net
€99.70
excl. VAT
Item FES-8203733
Manufacturer no. EAMC-56-58-25-25-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Fitted between motor shaft and axis shaft, the coupling EAMC-56-58-25-25-U transmits the drive torque. Up to 75 Nm of torque is transmitted, speeds of up to 5500 1/min are permitted.

Why this part

  • Transmittable torque 75 Nm
  • Speeds up to 5500 1/min
  • Mass moment of inertia 128 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMC-56-58-25-25-U.

Technical data

TypeEAMC-56-58-25-25-U
Festo part no.8203733
Size56
Nominal length58 mm
Mounting diameter 125 mm
Mounting diameter 225 mm
Transmittable torque75 Nm
Max. rotational speed5500 1/min
Mass moment of inertia128 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight266 g
Note on materialsRoHS compliant
Weight0.32 kg
ManufacturerFesto
Hersteller-NrEAMC-56-58-25-25-U
EAN4052568647711
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)25
Temperature (max.)60
