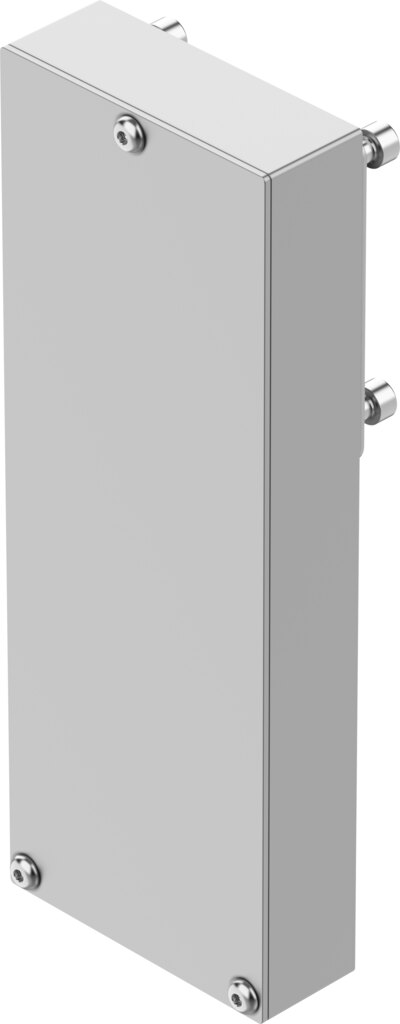

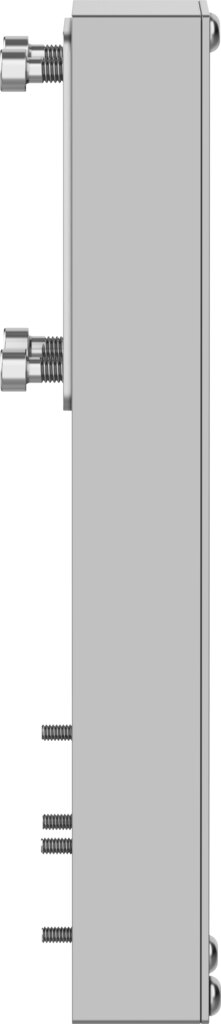

Parallel kit for motor mounting, 3 Nm, actuator T42, motor 87A EAMM-U-87-T42-87A-147 - Festo 8223783

Festo ✓ Original product Brand new

The EAMM-U-87-T42-87A-147 kit is intended for parallel motor mounting, with the motor lying next to the axis. It transmits up to 3 Nm of torque, speeds of up to 3000 1/min are permitted. Matches actuator interface T42 and motor interface 87A.

Net
€273.24
excl. VAT
Item FES-8223783
Manufacturer no. EAMM-U-87-T42-87A-147
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The EAMM-U-87-T42-87A-147 kit is intended for parallel motor mounting, with the motor lying next to the axis. It transmits up to 3 Nm of torque, speeds of up to 3000 1/min are permitted.

Key benefits

  • Transmittable torque 3 Nm
  • Speeds up to 3000 1/min
  • Ratio 1:1, motor speed and torque reach the axis unchanged
  • No-load driving torque only 0.22 Nm
  • Mass moment of inertia 41.2 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-U-87-T42-87A-147.

Technical data

TypeEAMM-U-87-T42-87A-147
Festo part no.8223783
Size87
Centre-to-centre distance147 mm
Gear unit ratio1:1
Transmittable torque3 Nm
Frictional torque independent of load0.22 Nm
Max. rotational speed3000 1/min
Mass moment of inertia41.2 kgmm²
Interface code, actuatorT42
Interface code, motor in87A
Degree of protectionIP40
Mounting positionAny
Ambient temperature0 to 50 °C
Storage temperature-20 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-zone III
Product weight996 g
Note on materialsRoHS compliant
Weight1 kg
ManufacturerFesto
Hersteller-NrEAMM-U-87-T42-87A-147
EAN4052568802028
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich0-50 °C
Temperature (max.)50
