Axial kit for motor mounting, 0.95 Nm, actuator X22, motor 42A EAMM-A-X22-42A - Festo 8210057

Festo ✓ Original product Brand new

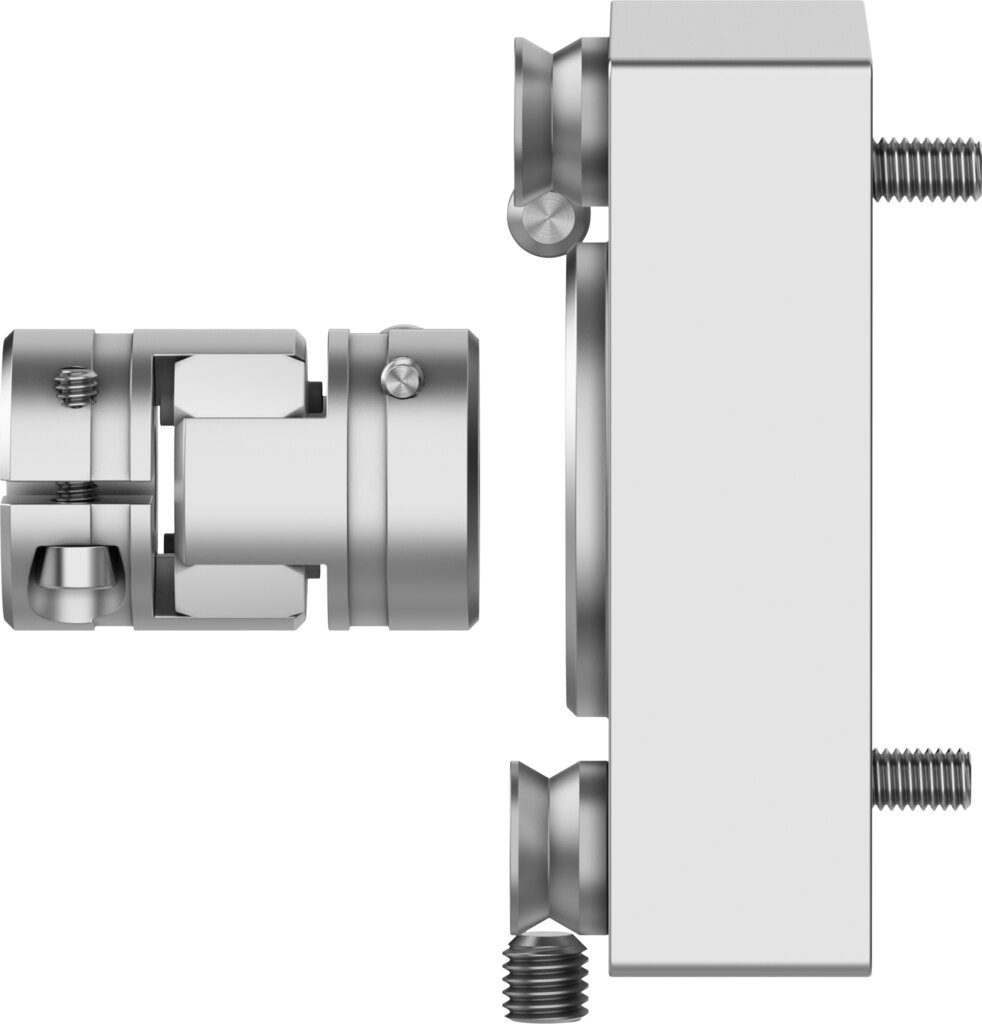

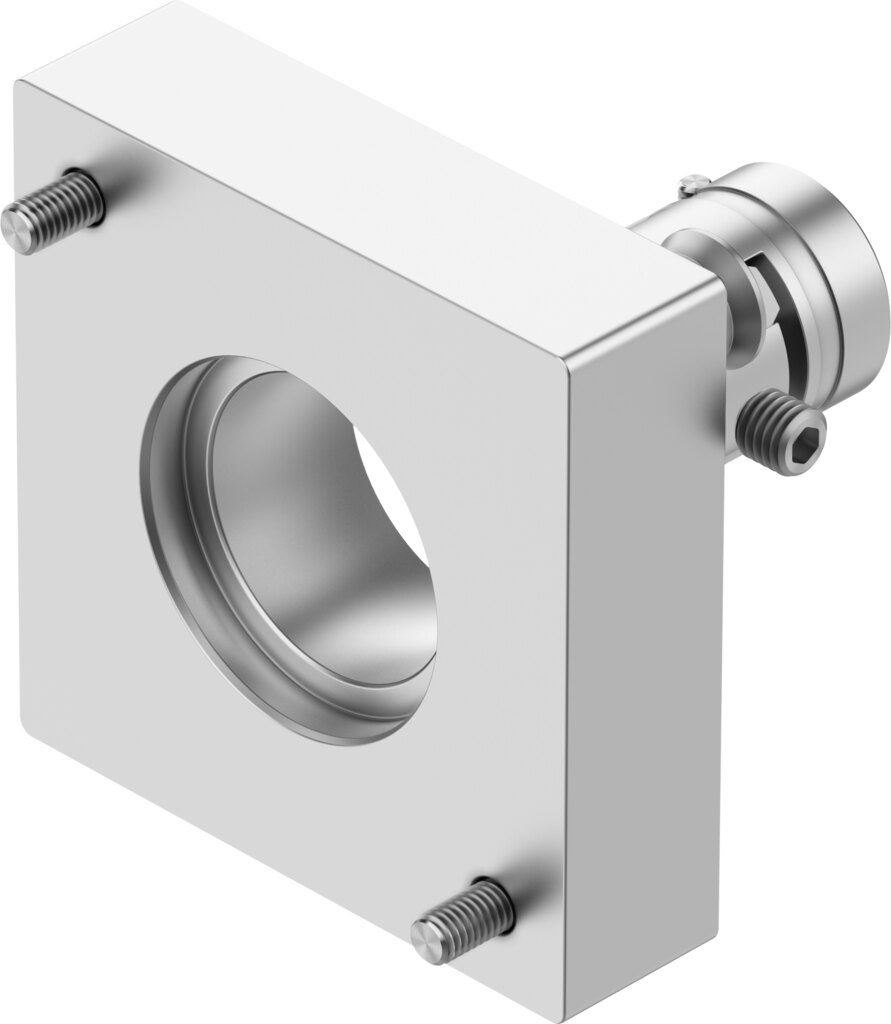

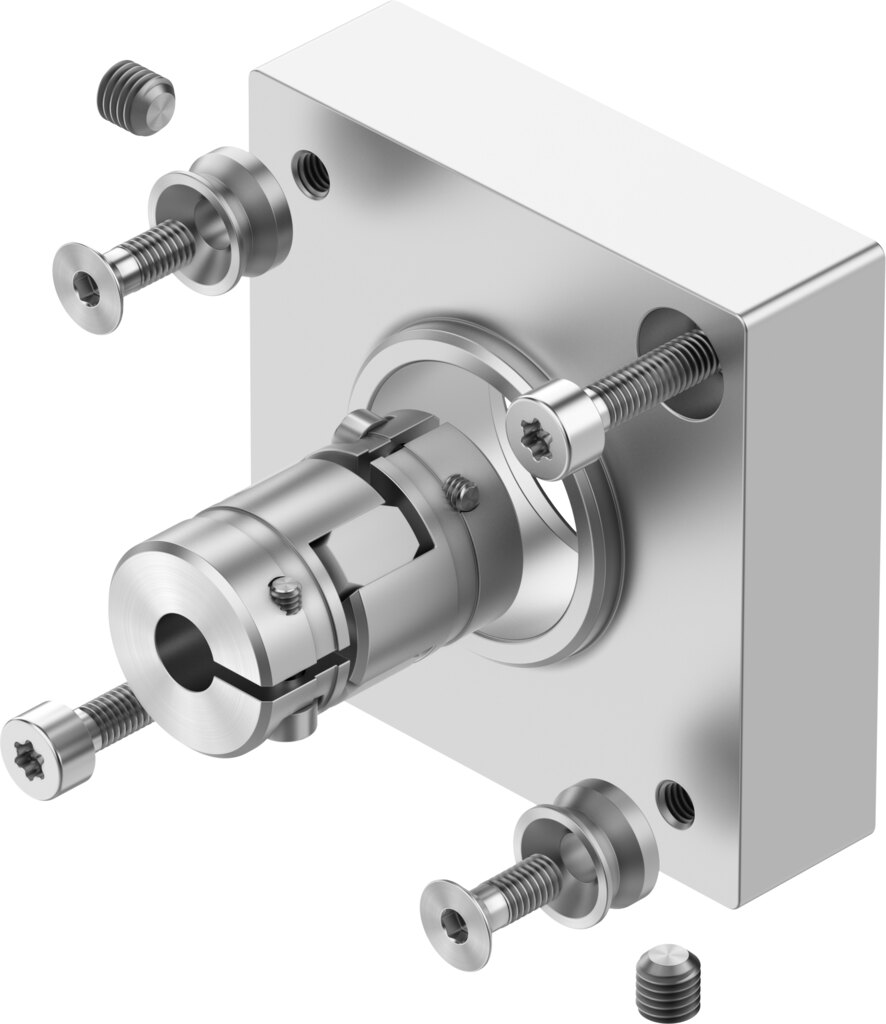

The axial kit EAMM-A-X22-42A connects motor and axis on a common centre line. Up to 0.95 Nm of torque is transmitted, the part is rated for up to 10000 1/min. The codes X22 (actuator) and 42A (motor) define the match.

Net
€134.89
excl. VAT
Item FES-8210057
Manufacturer no. EAMM-A-X22-42A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-X22-42A connects motor and axis on a common centre line. Up to 0.95 Nm of torque is transmitted, the part is rated for up to 10000 1/min.

Benefits

  • Transmittable torque 0.95 Nm
  • Speeds up to 10000 1/min
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-zone III, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMM-A-X22-42A.

Technical data

TypeEAMM-A-X22-42A
Festo part no.8210057
Transmittable torque0.95 Nm
Max. rotational speed10000 1/min
Interface code, actuatorX22
Interface code, motor in42A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-zone III
Product weight60 g
Note on materialsRoHS compliant
Weight0.16 kg
ManufacturerFesto
Hersteller-NrEAMM-A-X22-42A
EAN4052568784539
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
