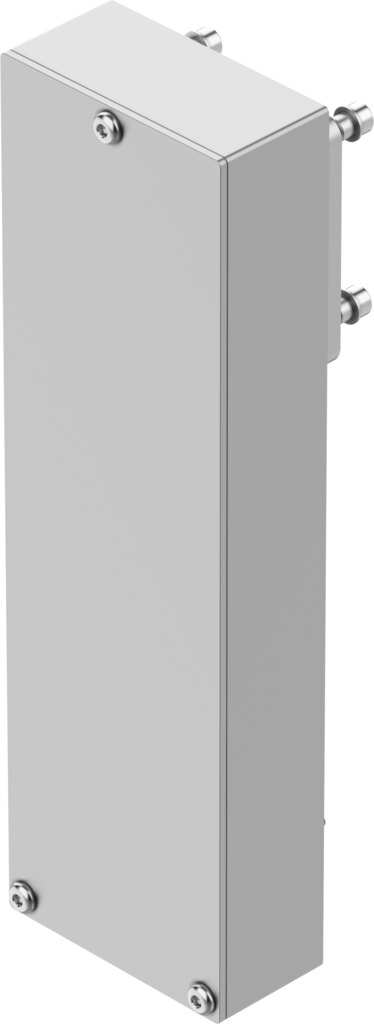

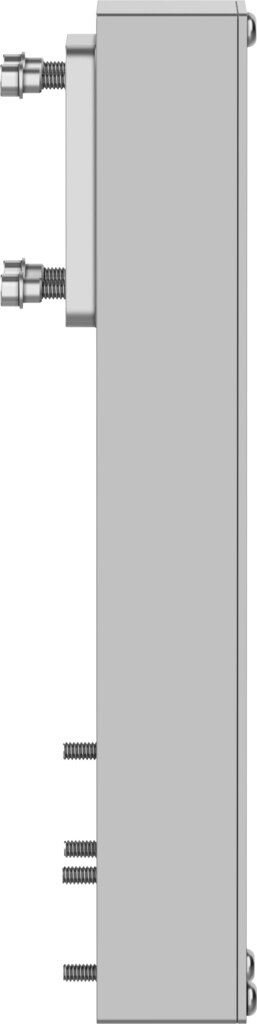

Parallel kit for motor mounting, 3 Nm, actuator T42, motor 55A, 58AA EAMM-U-65-T42-55A-147 - Festo 8223771
With the parallel kit EAMM-U-65-T42-55A-147 the motor sits alongside the axis instead of extending it. The transmittable torque is 3 Nm, speeds of up to 3000 1/min are permitted. Actuator interface code T42, motor side 55A, 58AA.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the parallel kit EAMM-U-65-T42-55A-147 the motor sits alongside the axis instead of extending it. The transmittable torque is 3 Nm, speeds of up to 3000 1/min are permitted.
Why this part
- Transmittable torque 3 Nm
- Speeds up to 3000 1/min
- Ratio 1:1, motor speed and torque reach the axis unchanged
- No-load driving torque only 0.22 Nm
- Mass moment of inertia 41.2 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
Application
Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMM-U-65-T42-55A-147.
Technical data
| Type | EAMM-U-65-T42-55A-147 |
|---|---|
| Festo part no. | 8223771 |
| Size | 65 |
| Centre-to-centre distance | 147 mm |
| Gear unit ratio | 1:1 |
| Transmittable torque | 3 Nm |
| Frictional torque independent of load | 0.22 Nm |
| Max. rotational speed | 3000 1/min |
| Mass moment of inertia | 41.2 kgmm² |
| Interface code, actuator | T42 |
| Interface code, motor in | 55A, 58AA |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-zone III |
| Product weight | 774 g |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-U-65-T42-55A-147 |
| EAN | 4052568801984 |
| Zolltarifnummer | 84839089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
