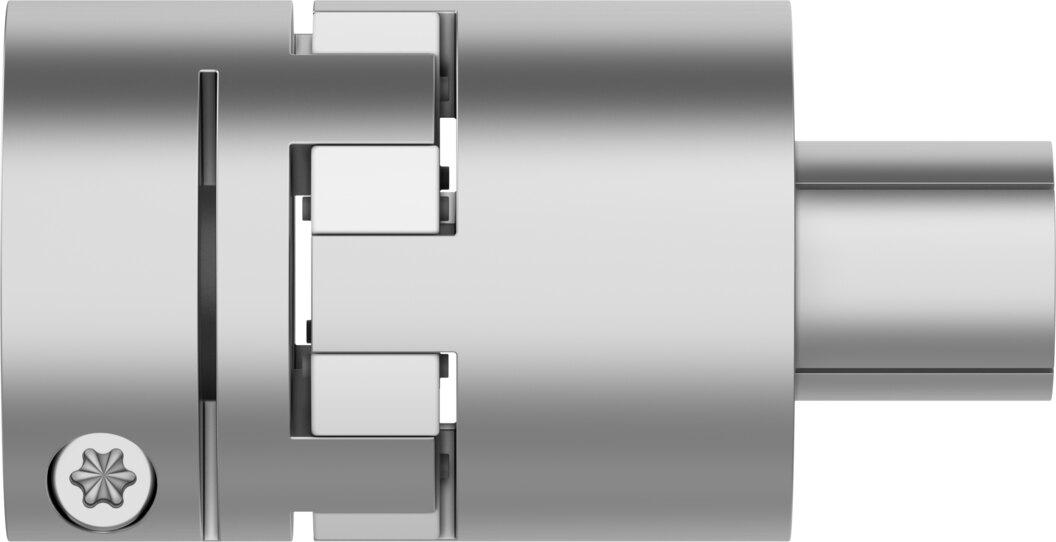

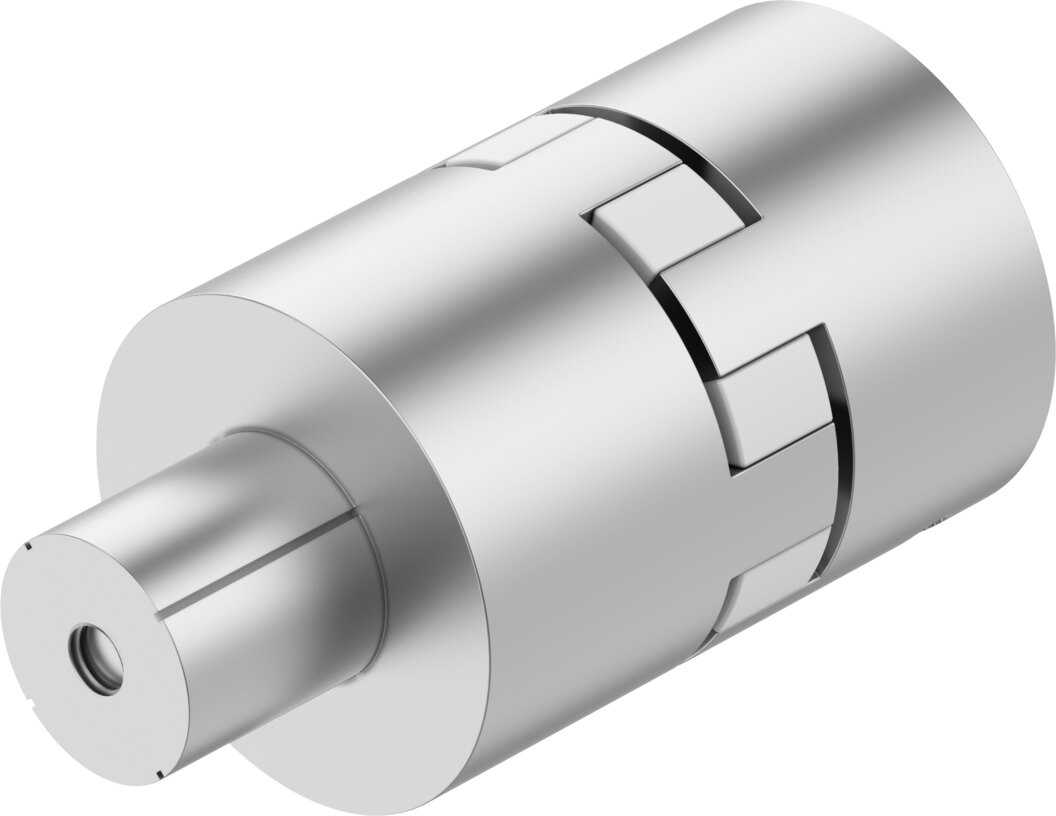

Coupling for motor mounting Ø 32/32 mm, 145 Nm EAMD-67-96-32-32X32-U - Festo 8197587

Festo ✓ Original product Brand new

The coupling EAMD-67-96-32-32X32-U transmits torque from the motor to the drive shaft of the axis. The mounting diameters are 32 mm and 32 mm. Up to 145 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Net
€774.18
excl. VAT
Item FES-8197587
Manufacturer no. EAMD-67-96-32-32X32-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling EAMD-67-96-32-32X32-U transmits torque from the motor to the drive shaft of the axis. Up to 145 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Key benefits

  • Transmittable torque 145 Nm
  • Speeds up to 4500 1/min
  • Mass moment of inertia 886 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMD-67-96-32-32X32-U.

Technical data

TypeEAMD-67-96-32-32X32-U
Festo part no.8197587
Size67
Nominal length96 mm
Mounting diameter 132 mm
Mounting diameter 232 mm
Transmittable torque145 Nm
Max. rotational speed4500 1/min
Mass moment of inertia886 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight1636 g
Note on materialsRoHS compliant
Weight1.7 kg
ManufacturerFesto
Hersteller-NrEAMD-67-96-32-32X32-U
EAN4052568642525
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)32
Temperature (max.)60
