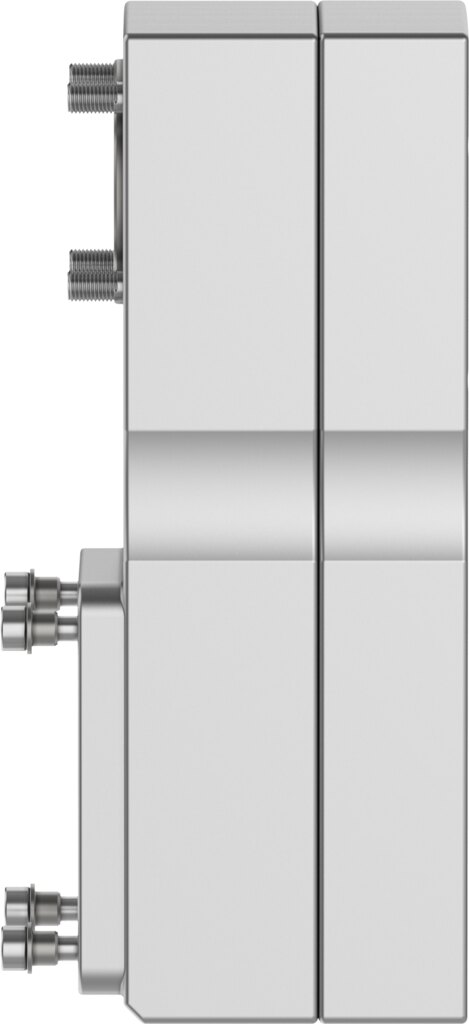

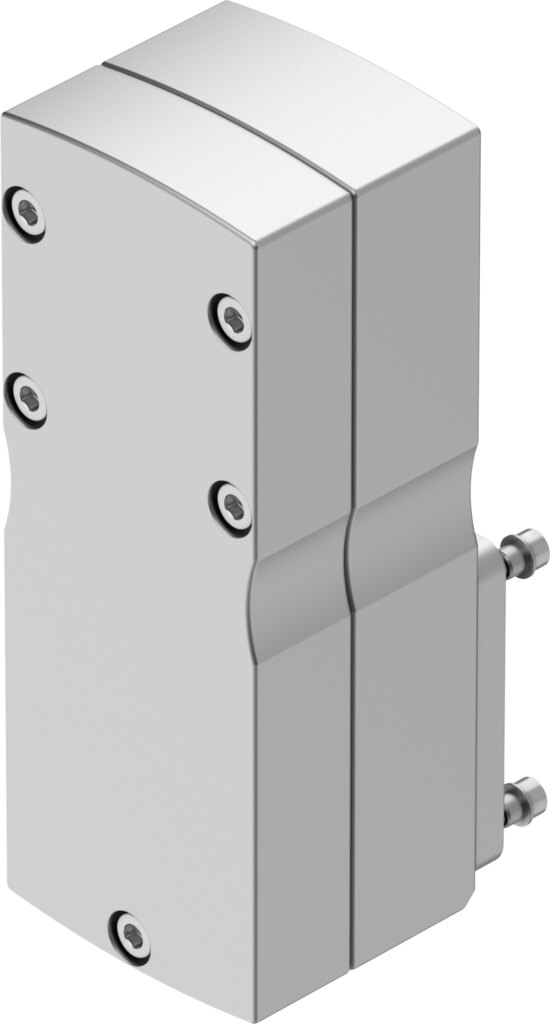

Parallel kit size 60 for motor mounting, actuator S38, motor 60P or 60PA, 3 Nm EAMM-U-60-S38-60P-91 - Festo 8125092

Festo ✓ Original product Brand new

Where space along the axis is tight, the parallel kit EAMM-U-60-S38-60P-91 mounts the motor (60P or 60PA) next to the drive with interface S38. It transmits up to 3 Nm. Speed up to 6000 1/min, degree of protection IP40. Mass moment of inertia 26.7 kgmm².

Net
€524.79
excl. VAT
Item FES-8125092
Manufacturer no. EAMM-U-60-S38-60P-91
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-60-S38-60P-91 mounts the motor (interface 60P or 60PA) parallel to the drive (interface S38). It transmits up to 3 Nm at a ratio of 1:1.

Benefits

  • Transmittable torque 3 Nm between motor and drive
  • Speed up to 6000 1/min
  • Mass moment of inertia 26.7 kgmm² as input for drive sizing
  • No-load driving torque 0.07 Nm
  • Ratio 1:1
  • Interfaces actuator S38, motor 60P or 60PA

Applications

The EAMM-U-60-S38-60P-91 is used whenever a motor with interface code 60P or 60PA has to be fitted to an electric drive with interface S38. Typical applications are positioning axes in assembly, packaging and laboratory automation.

Technical data

Size60
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed6000 1/min
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia26.7 kgmm²
Frictional torque independent of load0.07 Nm
Transmittable torque3 Nm
Product weight1120 g
Interface code, actuatorS38
Interface code, motor in60P, 60PA
Note on materialsRoHS compliant
Weight1.2 kg
ManufacturerFesto
Hersteller-NrEAMM-U-60-S38-60P-91
EAN4052568552077
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
