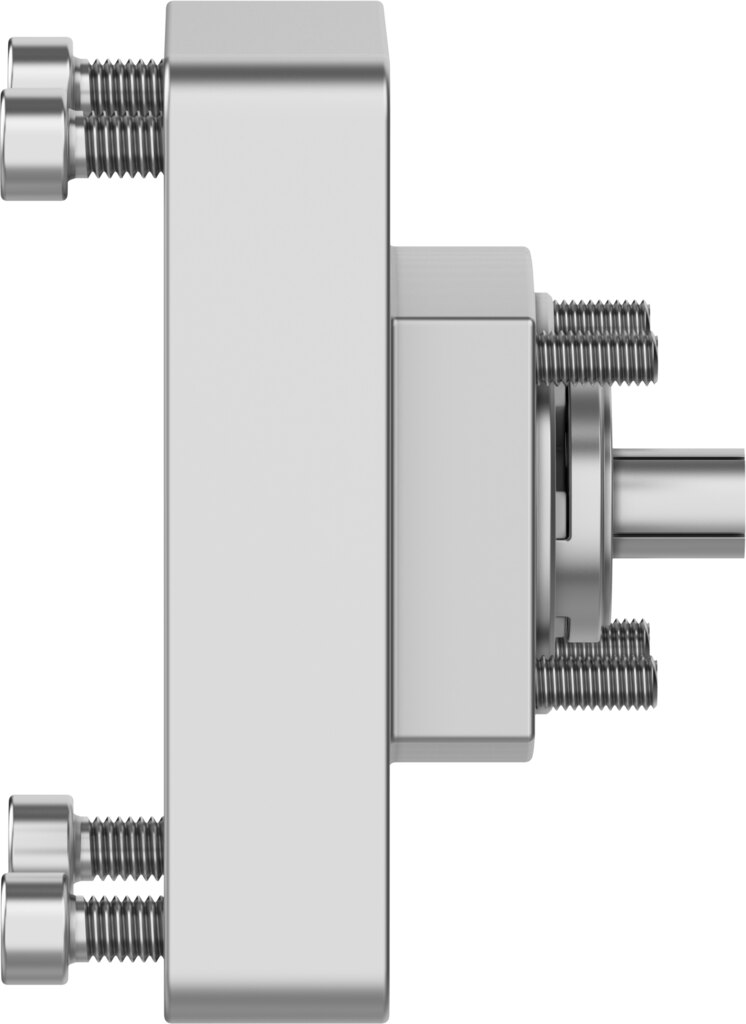

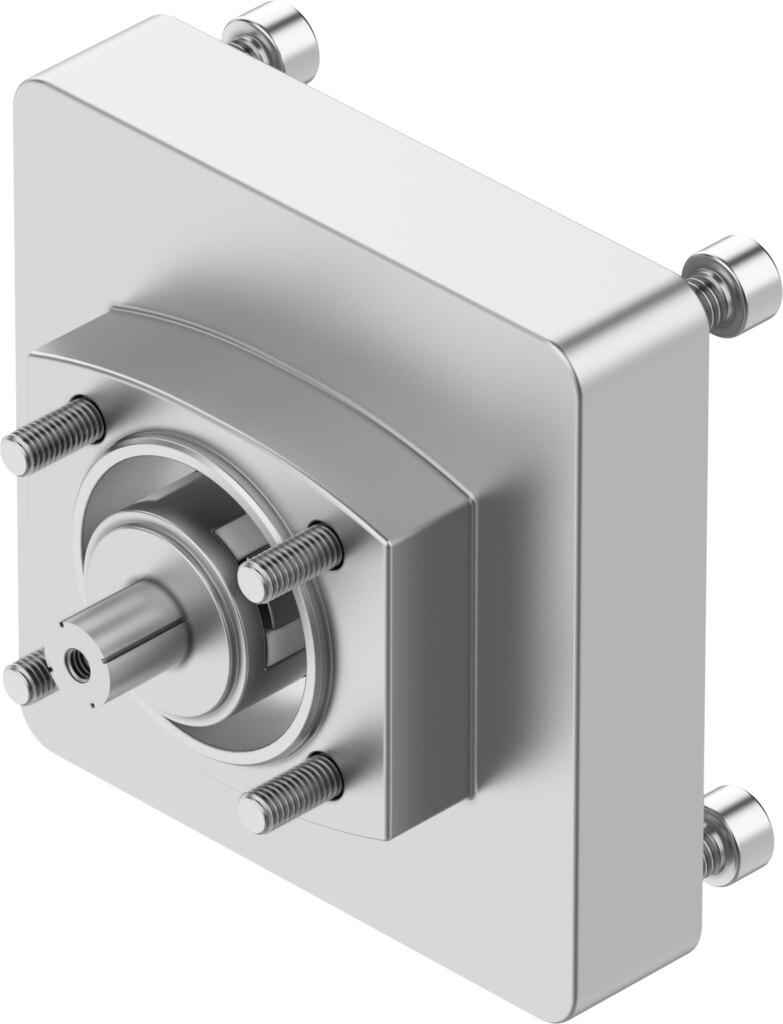

Axial kit for motor mounting, 4.4 Nm, actuator L38, motor 87A EAMM-A-L38-87A-G2 - Festo 8197447

Festo ✓ Original product Brand new

The axial kit EAMM-A-L38-87A-G2 mounts the motor in line with the electric axis. Up to 4.4 Nm of torque is transmitted, the maximum speed is 8000 1/min. Actuator interface code L38, motor side 87A.

Net
€152.49
excl. VAT
Item FES-8197447
Manufacturer no. EAMM-A-L38-87A-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-L38-87A-G2 mounts the motor in line with the electric axis. Up to 4.4 Nm of torque is transmitted, the maximum speed is 8000 1/min.

Benefits

  • Transmittable torque 4.4 Nm
  • Speeds up to 8000 1/min
  • Mass moment of inertia 3.2 kgmm² for sizing the drive
  • Degree of protection IP40, protected against solid objects from 1 mm
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-A-L38-87A-G2 fits without rework.

Technical data

TypeEAMM-A-L38-87A-G2
Festo part no.8197447
Nominal length33 mm
Transmittable torque4.4 Nm
Max. rotational speed8000 1/min
Mass moment of inertia3.2 kgmm²
Interface code, actuatorL38
Interface code, motor in87A
Degree of protectionIP40
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight390 g
Note on materialsRoHS compliant
Weight0.45 kg
ManufacturerFesto
Hersteller-NrEAMM-A-L38-87A-G2
EAN4052568648442
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
