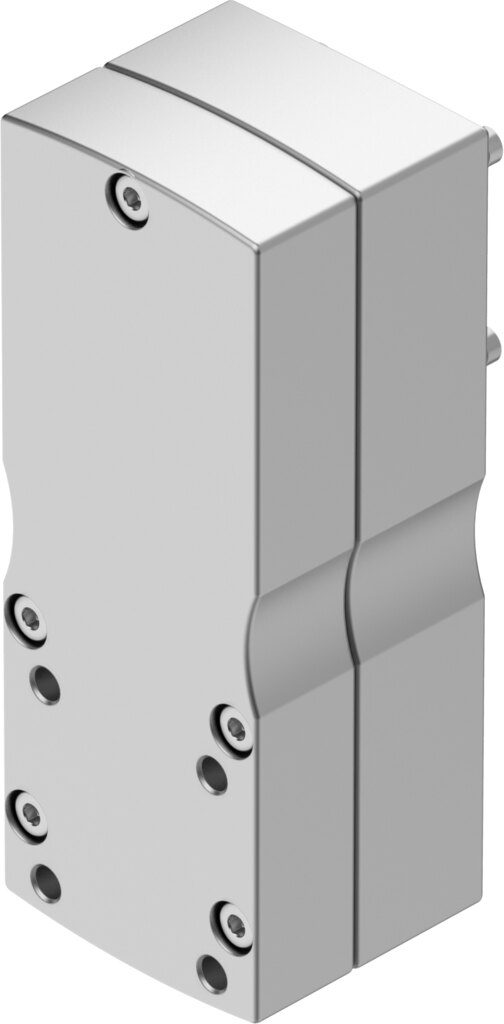

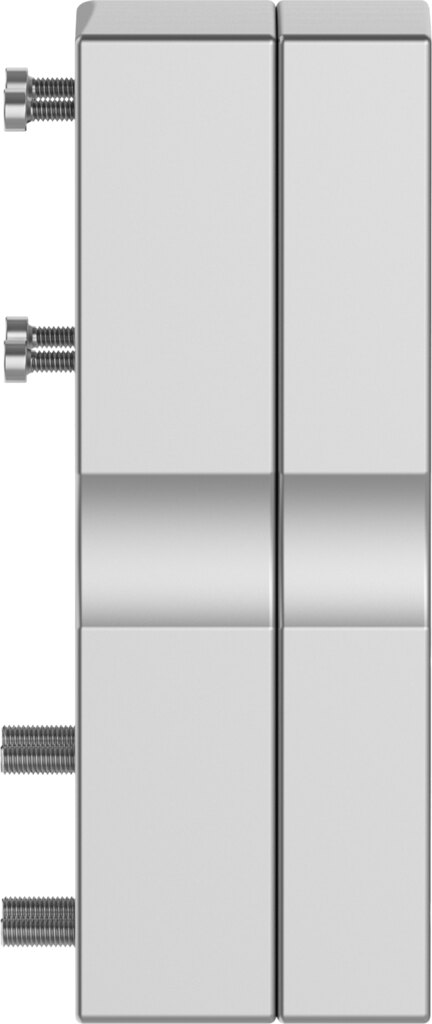

Parallel kit size 50 for motor mounting, actuator D19, motor 38AA, 1 Nm EAMM-U-50-D19-38AA-78 - Festo 8107032

Festo ✓ Original product Brand new

Motor alongside instead of in line with the axis: the kit EAMM-U-50-D19-38AA-78 connects motors with code 38AA to drives with interface D19 at up to 1 Nm torque. Speed up to 6000 1/min, degree of protection IP40. Mass moment of inertia 12.1 kgmm².

Net
€414.31
excl. VAT
Item FES-8107032
Manufacturer no. EAMM-U-50-D19-38AA-78
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-50-D19-38AA-78 mounts the motor (interface 38AA) parallel to the drive (interface D19). It transmits up to 1 Nm at a ratio of 1:1.

Benefits

  • Transmittable torque 1 Nm between motor and drive
  • Speed up to 6000 1/min
  • Mass moment of inertia 12.1 kgmm² as input for drive sizing
  • No-load driving torque 0.01 Nm
  • Ratio 1:1
  • Interfaces actuator D19, motor 38AA

Applications

When sizing the axis, the mass moment of inertia of 12.1 kgmm² and the transmittable torque of 1 Nm feed into the choice of motor and controller. The kit is mounted between motor (38AA) and drive (D19).

Technical data

Size50
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed6000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia12.1 kgmm²
Frictional torque independent of load0.01 Nm
Transmittable torque1 Nm
Product weight600 g
Interface code, actuatorD19
Interface code, motor in38AA
Note on materialsRoHS compliant
Weight0.7 kg
ManufacturerFesto
Hersteller-NrEAMM-U-50-D19-38AA-78
EAN4052568551933
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
