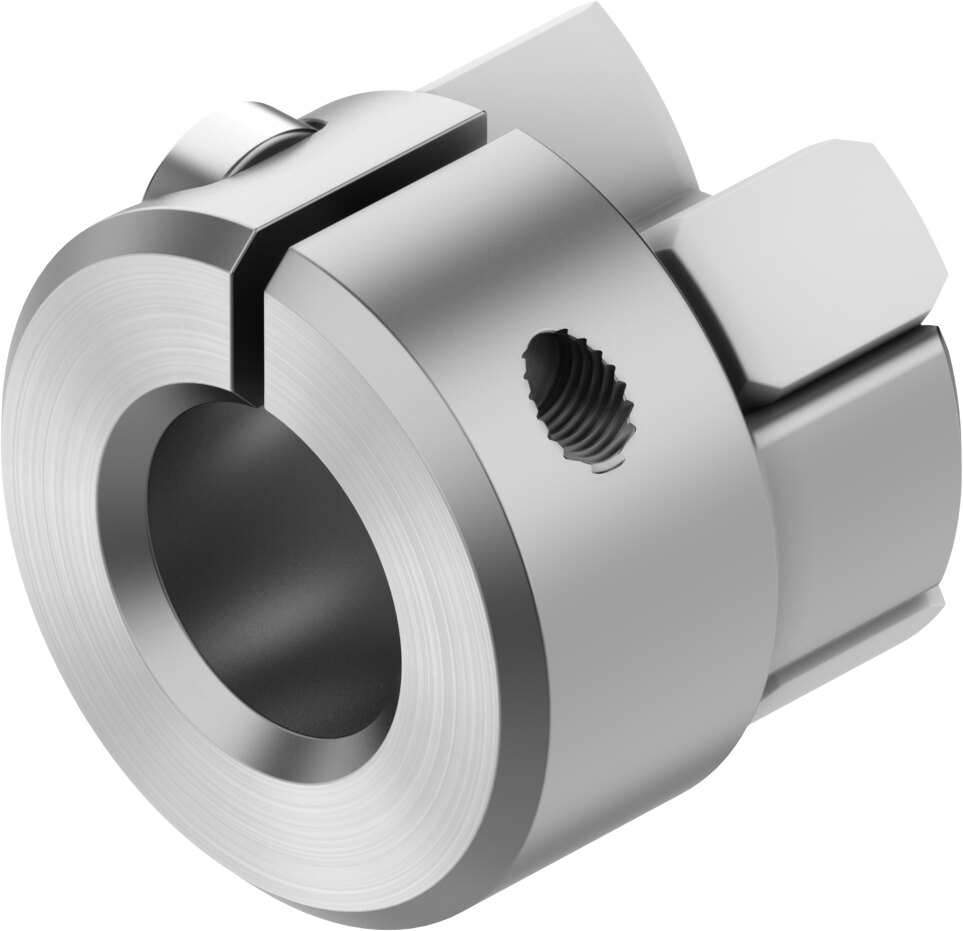

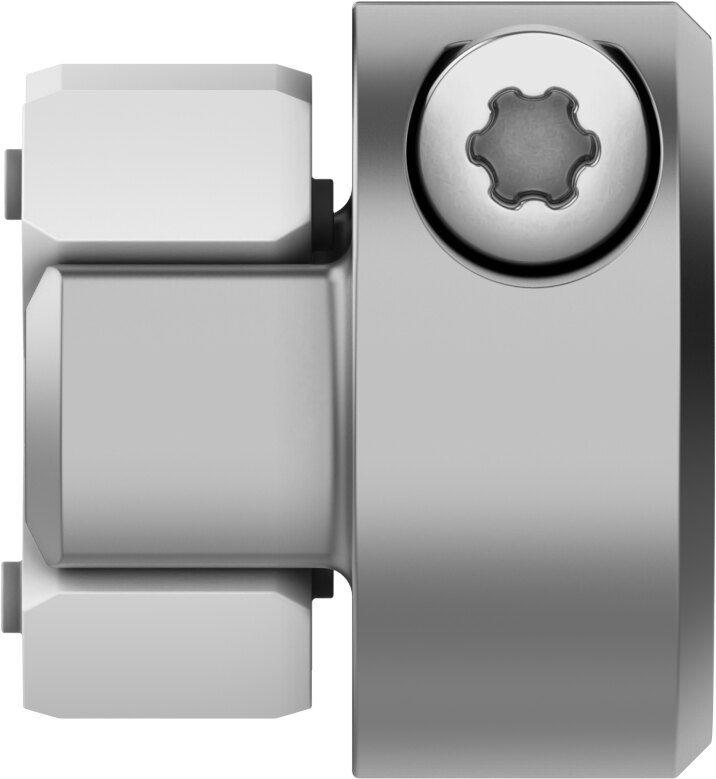

Coupling hub for motor mounting Ø 5 mm, size 15 EAMC-H-15-7-GB8-5 - Festo 8228647

Festo ✓ Original product Brand new

The hub EAMC-H-15-7-GB8-5 takes up the shaft and transmits the torque into the coupling. The mounting diameter is 5 mm. It transmits up to 1.5 Nm of torque, the maximum speed is 10000 1/min.

Net
€41.05
excl. VAT
Item FES-8228647
Manufacturer no. EAMC-H-15-7-GB8-5
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The hub EAMC-H-15-7-GB8-5 takes up the shaft and transmits the torque into the coupling. It transmits up to 1.5 Nm of torque, the maximum speed is 10000 1/min.

Why this part

  • Transmittable torque 1.5 Nm
  • Speeds up to 10000 1/min
  • Mass moment of inertia 0.191 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMC-H-15-7-GB8-5.

Technical data

TypeEAMC-H-15-7-GB8-5
Festo part no.8228647
Size15
Nominal length12.4 mm
Mounting diameter 15 mm
Transmittable torque1.5 Nm
Max. rotational speed10000 1/min
Mass moment of inertia0.191 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight5 g
Note on materialsRoHS compliant
Weight0.008 kg
ManufacturerFesto
Hersteller-NrEAMC-H-15-7-GB8-5
EAN4052568769369
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)5
Temperature (max.)60
