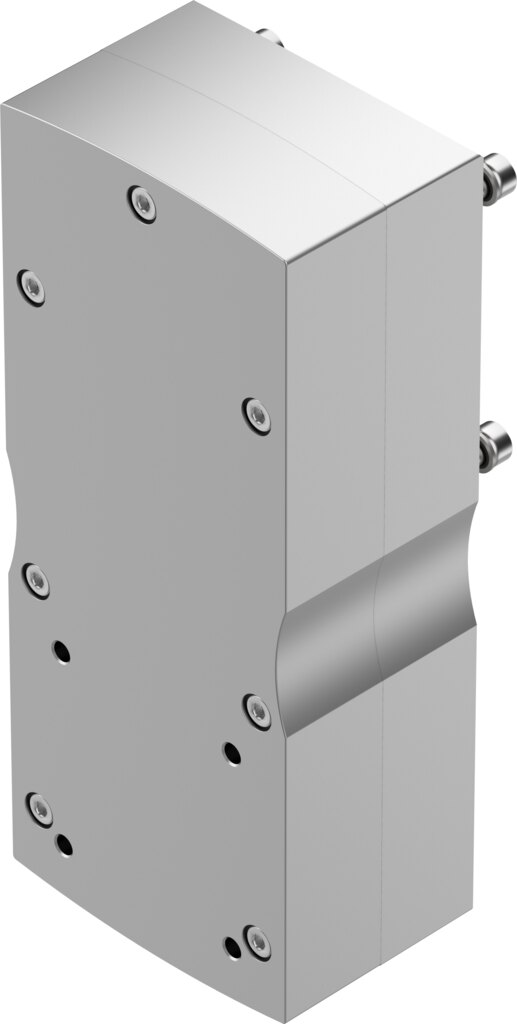

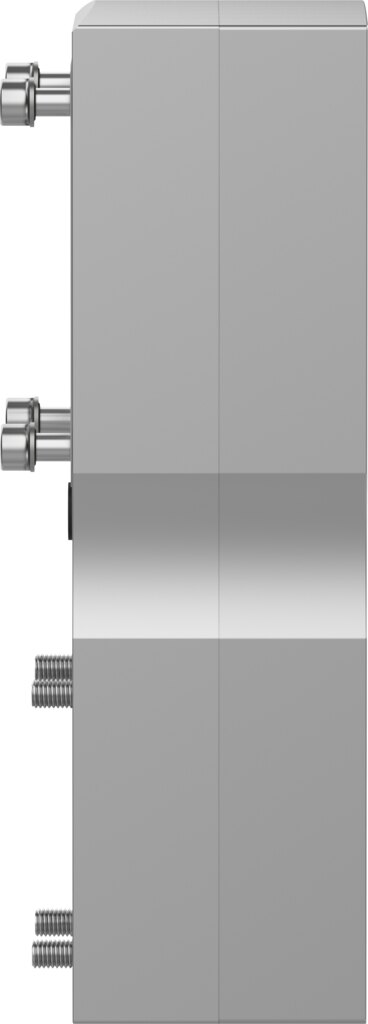

Parallel kit size 145 for motor mounting, actuator D100B, motor 140A or 150A, 50 Nm EAMM-U-145-D100-150A-188-S1 - Festo 8157284

Festo ✓ Original product Brand new

The parallel kit EAMM-U-145-D100-150A-188-S1 places a motor with interface 140A or 150A parallel to the drive with code D100B, keeping the overall length short. It transmits up to 50 Nm. Speed up to 4000 1/min, degree of protection IP65. Mass moment of inertia 2255 kgmm².

Net
€1,219.76
excl. VAT
Item FES-8157284
Manufacturer no. EAMM-U-145-D100-150A-188-S1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo parallel kit EAMM-U-145-D100-150A-188-S1 mounts the motor (interface 140A or 150A) parallel to the drive (interface D100B). It transmits up to 50 Nm at a ratio of 1:1.

Benefits

  • Transmittable torque 50 Nm between motor and drive
  • Speed up to 4000 1/min
  • Mass moment of inertia 2255 kgmm² as input for drive sizing
  • No-load driving torque 2 Nm
  • Ratio 1:1
  • Interfaces actuator D100B, motor 140A or 150A

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code D100B, on the motor side 140A or 150A.

Technical data

Size145
Mounting positionAny
Gear unit ratio1:1
Max. rotational speed4000 1/min
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP65
Ambient temperature-10 to 60 °C
Mass moment of inertia2255 kgmm²
Frictional torque independent of load2 Nm
Transmittable torque50 Nm
Product weight11500 g
Interface code, actuatorD100B
Interface code, motor in140A, 150A
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-U-145-D100-150A-188-S1
EAN4052568600174
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
