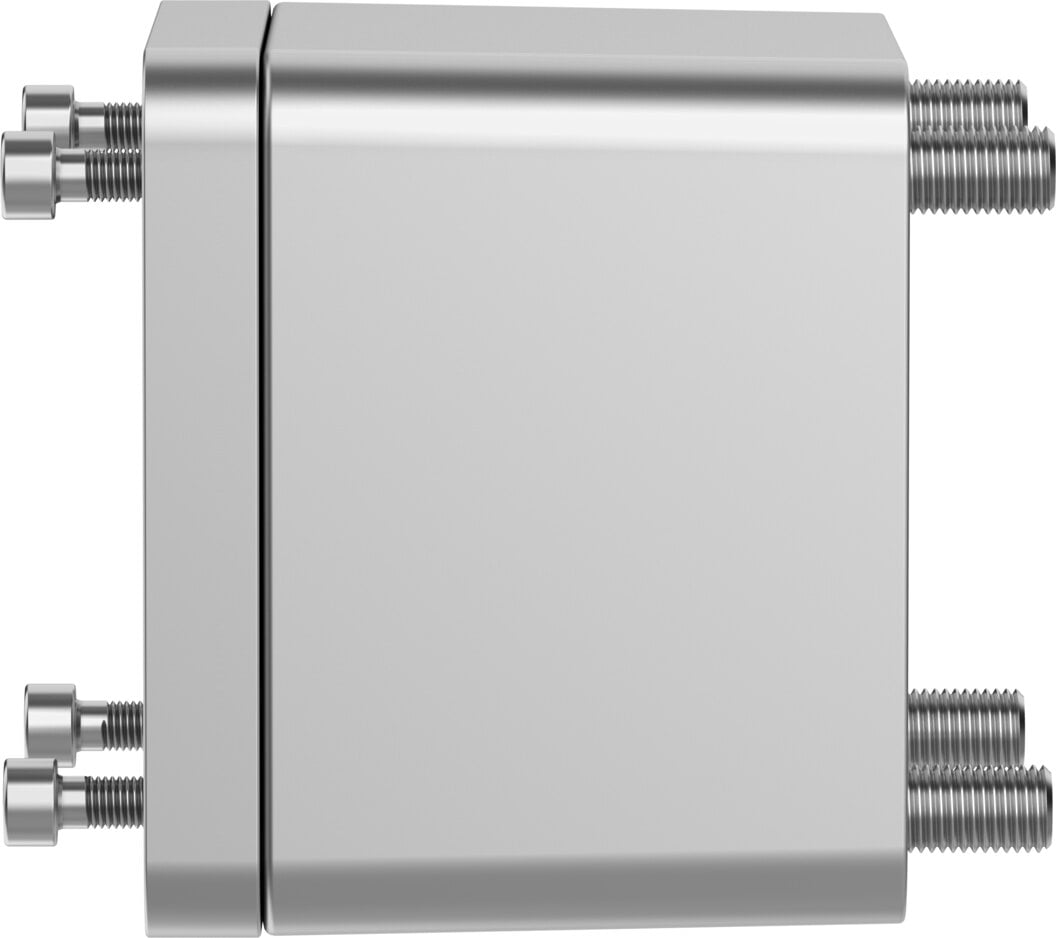

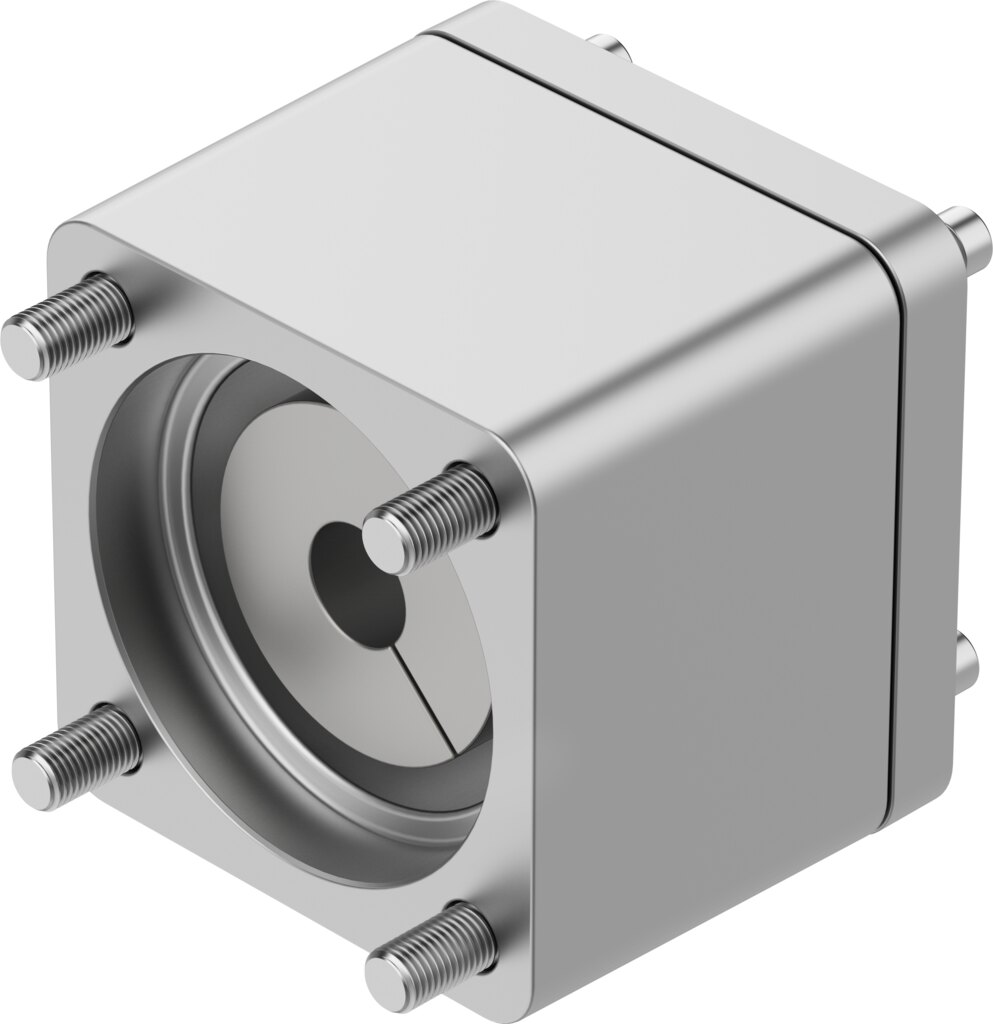

Axial kit for motor mounting, actuator D80, motor 84AA, 60 Nm EAMM-A-D80-84AA - Festo 8110055

Festo ✓ Original product Brand new

The axial kit EAMM-A-D80-84AA mounts a motor with interface 84AA in line with a drive carrying interface code D80. It transmits up to 60 Nm. Speed up to 5500 1/min, degree of protection IP40. Mass moment of inertia 128 kgmm².

Net
€441.94
excl. VAT
Item FES-8110055
Manufacturer no. EAMM-A-D80-84AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

60 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator D80 and motor 84AA: with the axial kit EAMM-A-D80-84AA motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 60 Nm between motor and drive
  • Speed up to 5500 1/min
  • Mass moment of inertia 128 kgmm² as input for drive sizing
  • Interfaces actuator D80, motor 84AA
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 128 kgmm² and the transmittable torque of 60 Nm feed into the choice of motor and controller. The kit is mounted between motor (84AA) and drive (D80).

Technical data

Nominal length85 mm
Mounting positionAny
Max. rotational speed5500 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia128 kgmm²
Transmittable torque60 Nm
Product weight1780 g
Interface code, actuatorD80
Interface code, motor in84AA
Note on materialsRoHS compliant
Weight2 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D80-84AA
EAN4052568551346
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
