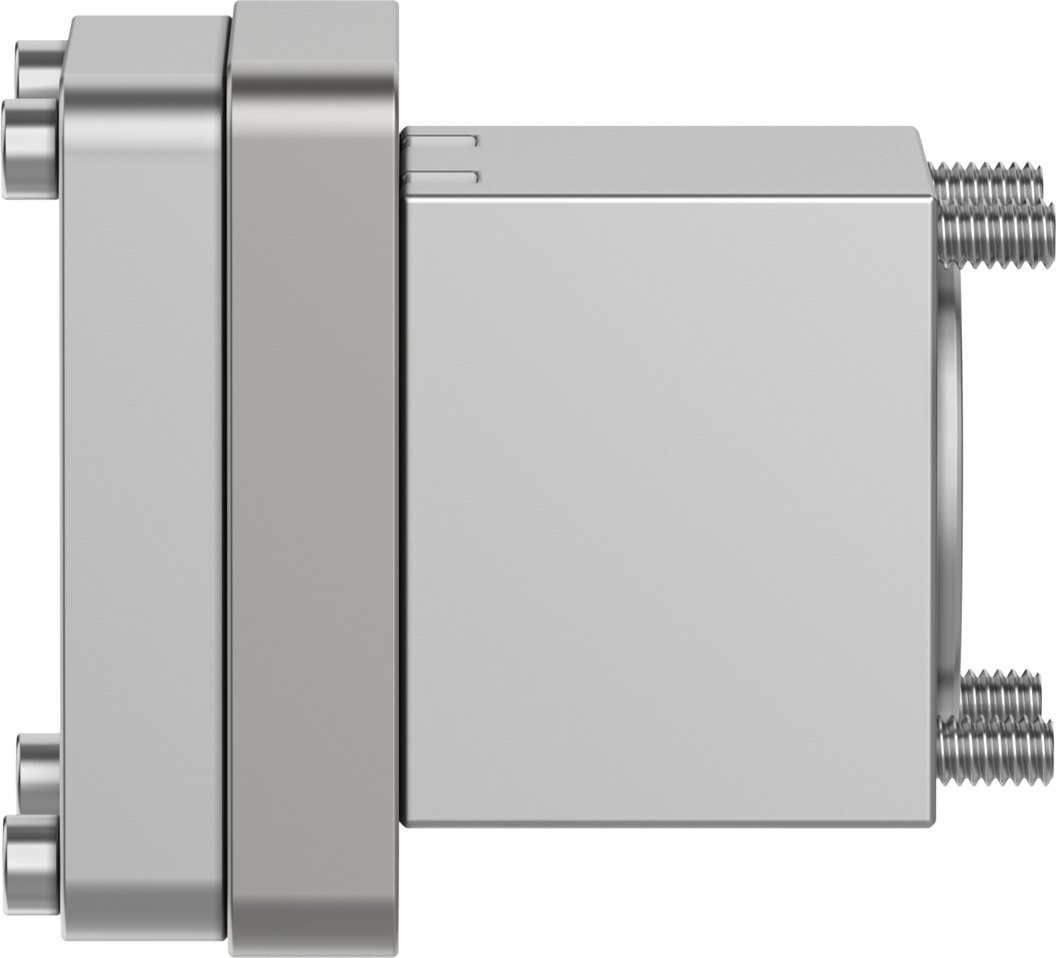

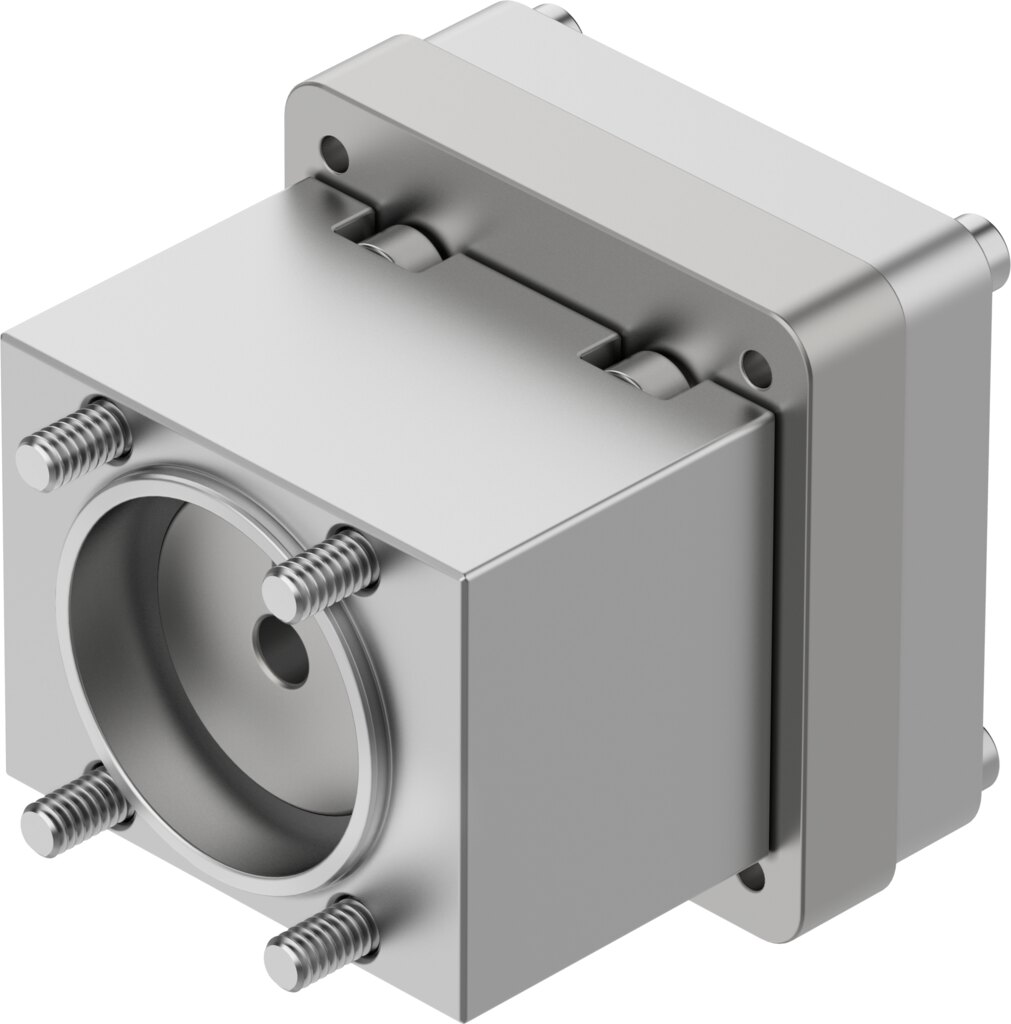

Axial kit for motor mounting, actuator S38, motor 50GA, 6.5 Nm EAMM-A-S38-50GA - Festo 8105922
For axial motor mounting on drives with interface S38: the kit EAMM-A-S38-50GA takes motors with code 50GA and transmits a torque of up to 6.5 Nm. Degree of protection IP40. Ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
6.5 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator S38 and motor 50GA: with the axial kit EAMM-A-S38-50GA motor mounting is done without designing your own adapter.
Benefits
- Transmittable torque 6.5 Nm between motor and drive
- Interfaces actuator S38, motor 50GA
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code S38, on the motor side 50GA.
Technical data
| Mounting position | Any |
|---|---|
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Transmittable torque | 6.5 Nm |
| Product weight | 401 g |
| Interface code, actuator | S38 |
| Interface code, motor in | 50GA |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-S38-50GA |
| EAN | 4052568551070 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
