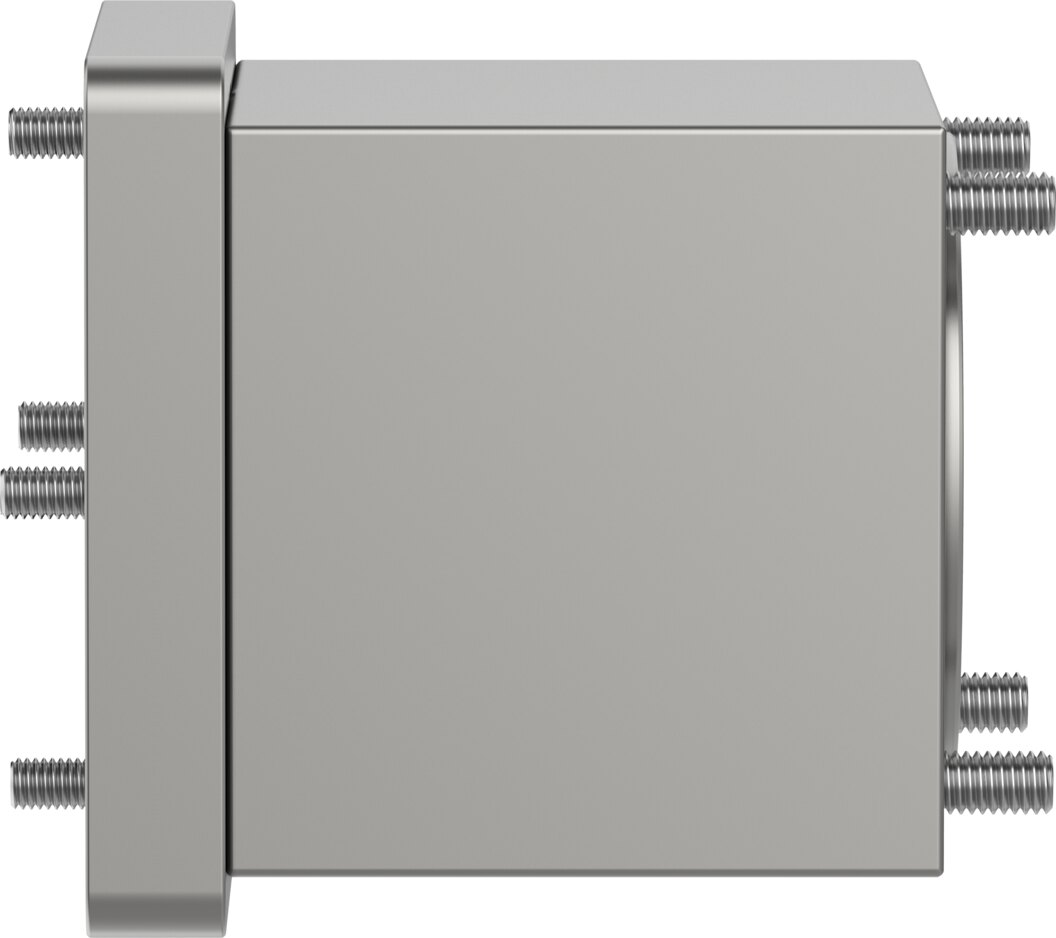

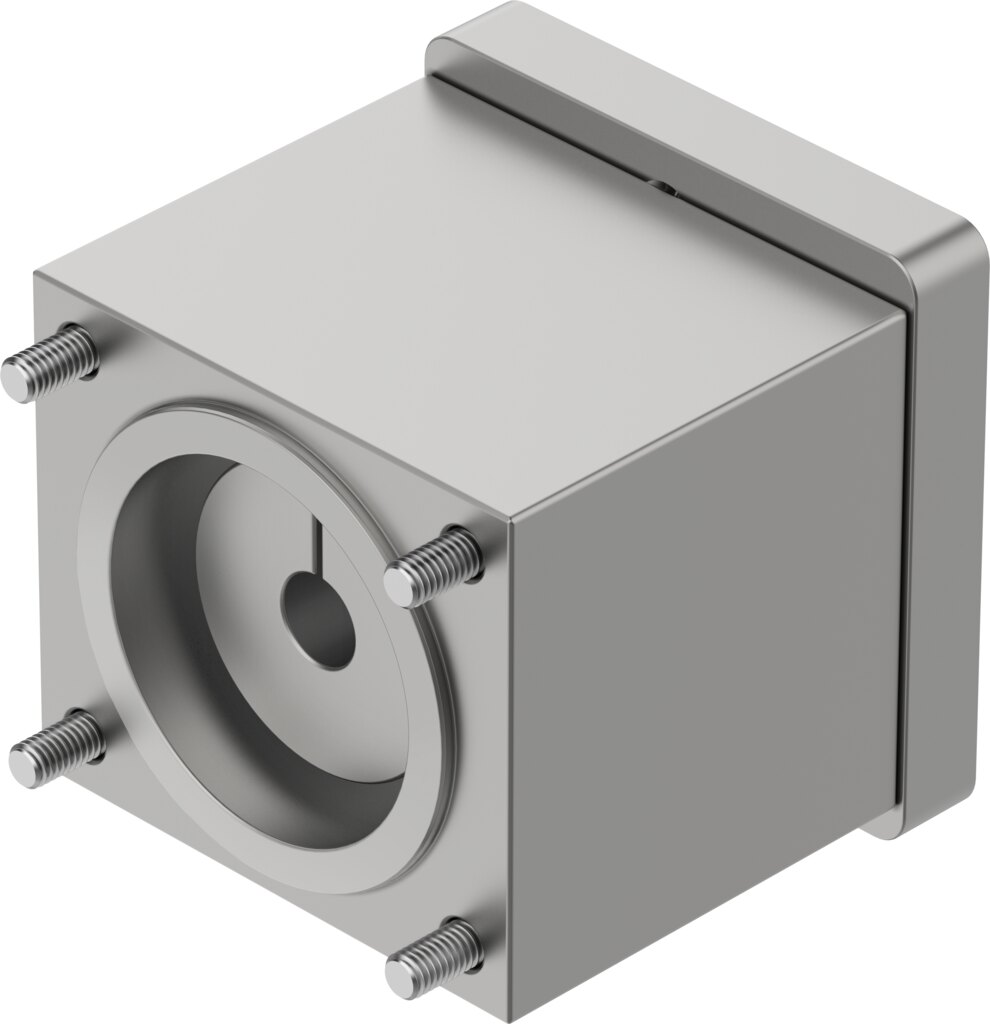

Axial kit for motor mounting, actuator S62, motor 70GA, 17 Nm EAMM-A-S62-70GA - Festo 8110082
Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-S62-70GA fits actuator S62 and motor 70GA and transmits up to 17 Nm. Degree of protection IP40. Ambient temperature -10 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
17 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator S62 and motor 70GA: with the axial kit EAMM-A-S62-70GA motor mounting is done without designing your own adapter.
Benefits
- Transmittable torque 17 Nm between motor and drive
- Interfaces actuator S62, motor 70GA
- Degree of protection IP40, ambient temperature -10 to 60 °C
Applications
The EAMM-A-S62-70GA is used whenever a motor with interface code 70GA has to be fitted to an electric drive with interface S62. Typical applications are positioning axes in assembly, packaging and laboratory automation.
Technical data
| Mounting position | Any |
|---|---|
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95% |
| Degree of protection | IP40 |
| Ambient temperature | -10 to 60 °C |
| Transmittable torque | 17 Nm |
| Product weight | 1109 g |
| Interface code, actuator | S62 |
| Interface code, motor in | 70GA |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-S62-70GA |
| EAN | 4052568551377 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
