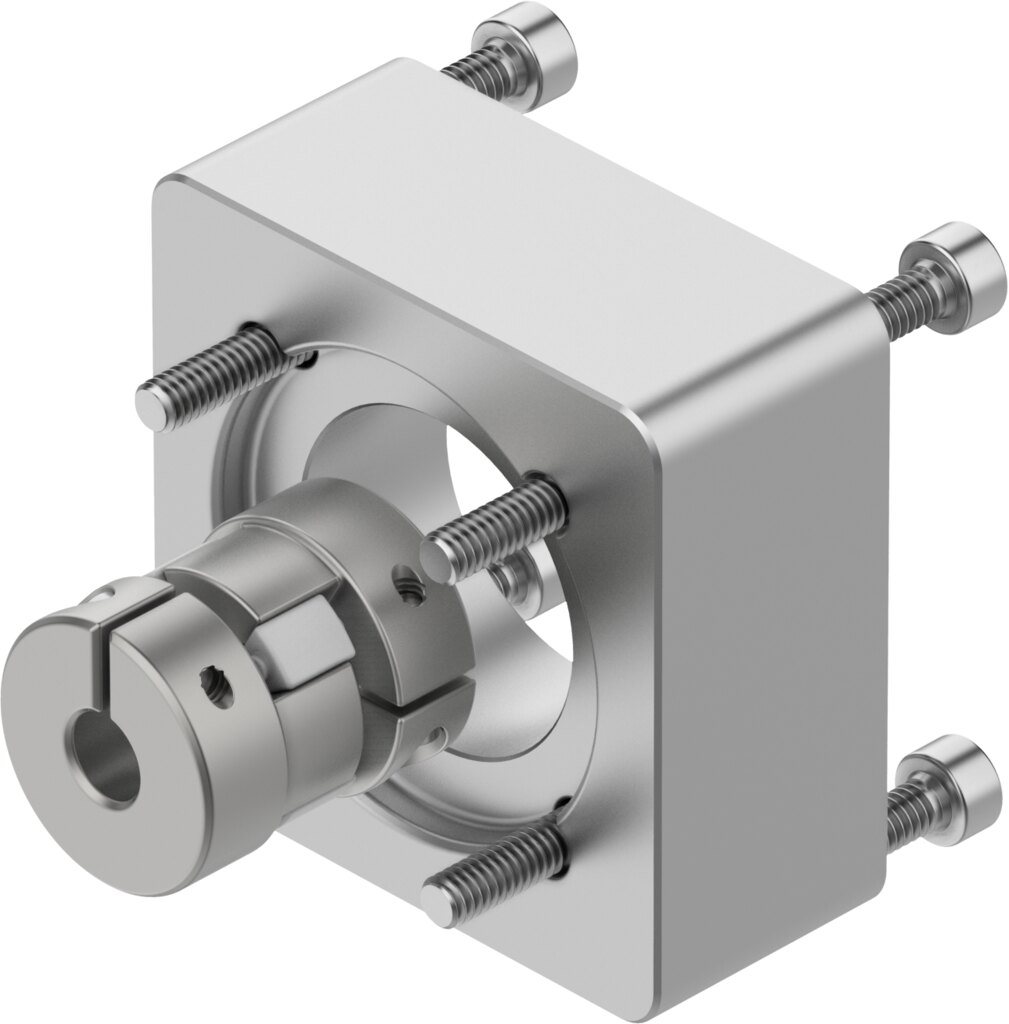

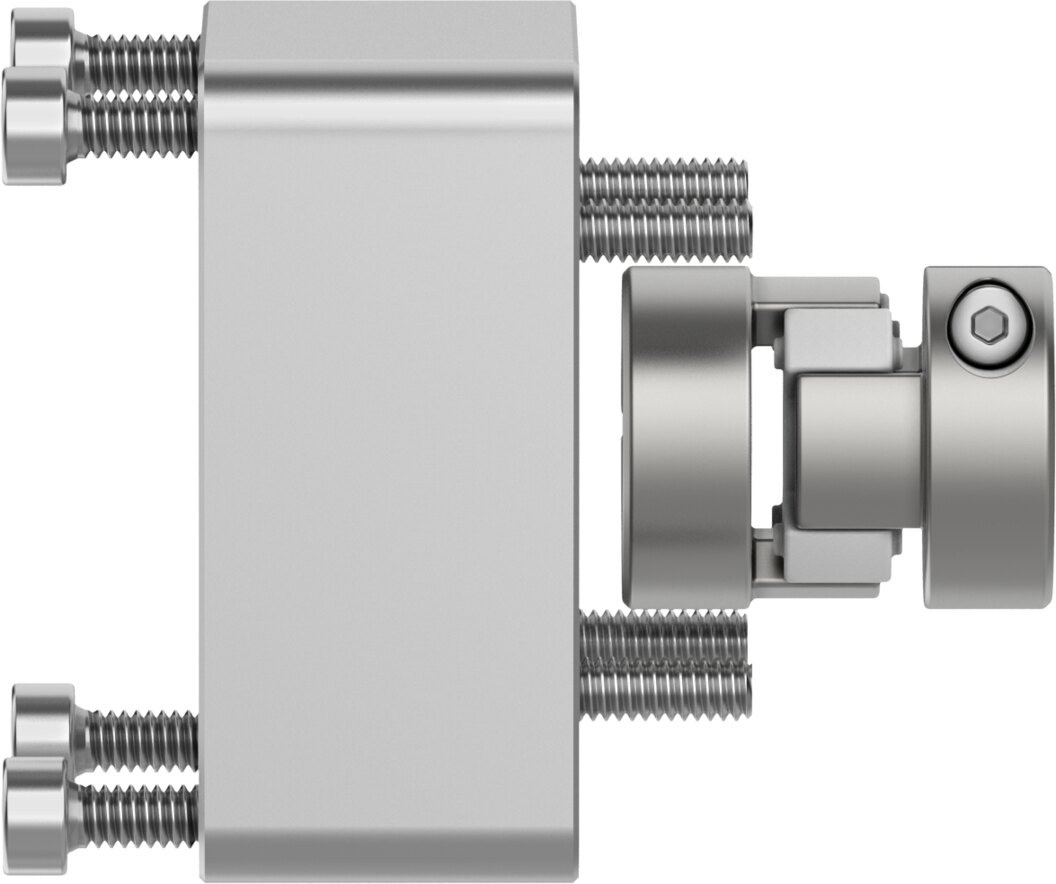

Axial kit for motor mounting, actuator P5-28B, motor 38AA, 1.1 Nm EAMM-A-P5-28B-38AA - Festo 8107710

Festo ✓ Original product Brand new

For axial motor mounting on drives with interface P5-28B: the kit EAMM-A-P5-28B-38AA takes motors with code 38AA and transmits a torque of up to 1.1 Nm. Speed up to 10000 1/min, degree of protection IP40. Mass moment of inertia 0.28 kgmm².

Net
€165.74
excl. VAT
Item FES-8107710
Manufacturer no. EAMM-A-P5-28B-38AA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1.1 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator P5-28B and motor 38AA: with the axial kit EAMM-A-P5-28B-38AA motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 1.1 Nm between motor and drive
  • Speed up to 10000 1/min
  • Mass moment of inertia 0.28 kgmm² as input for drive sizing
  • Interfaces actuator P5-28B, motor 38AA, coupling housing 28B
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code P5-28B, on the motor side 38AA.

Technical data

Nominal length17.5 mm
Mounting positionAny
Max. rotational speed10000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia0.28 kgmm²
Transmittable torque1.1 Nm
Product weight59 g
Interface code, actuatorP5-28B
Interface code, motor in38AA
Interface code, clutch housing28B
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-P5-28B-38AA
EAN4052568551292
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
