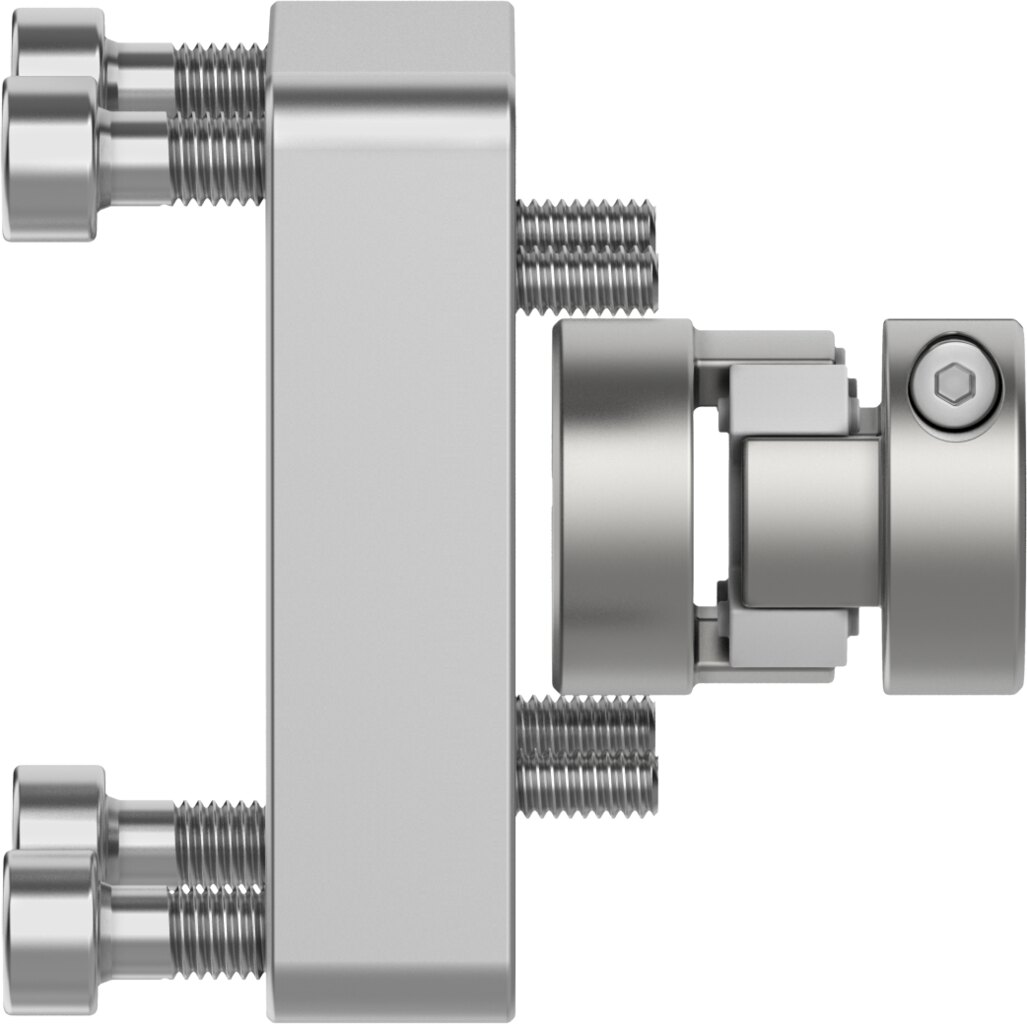

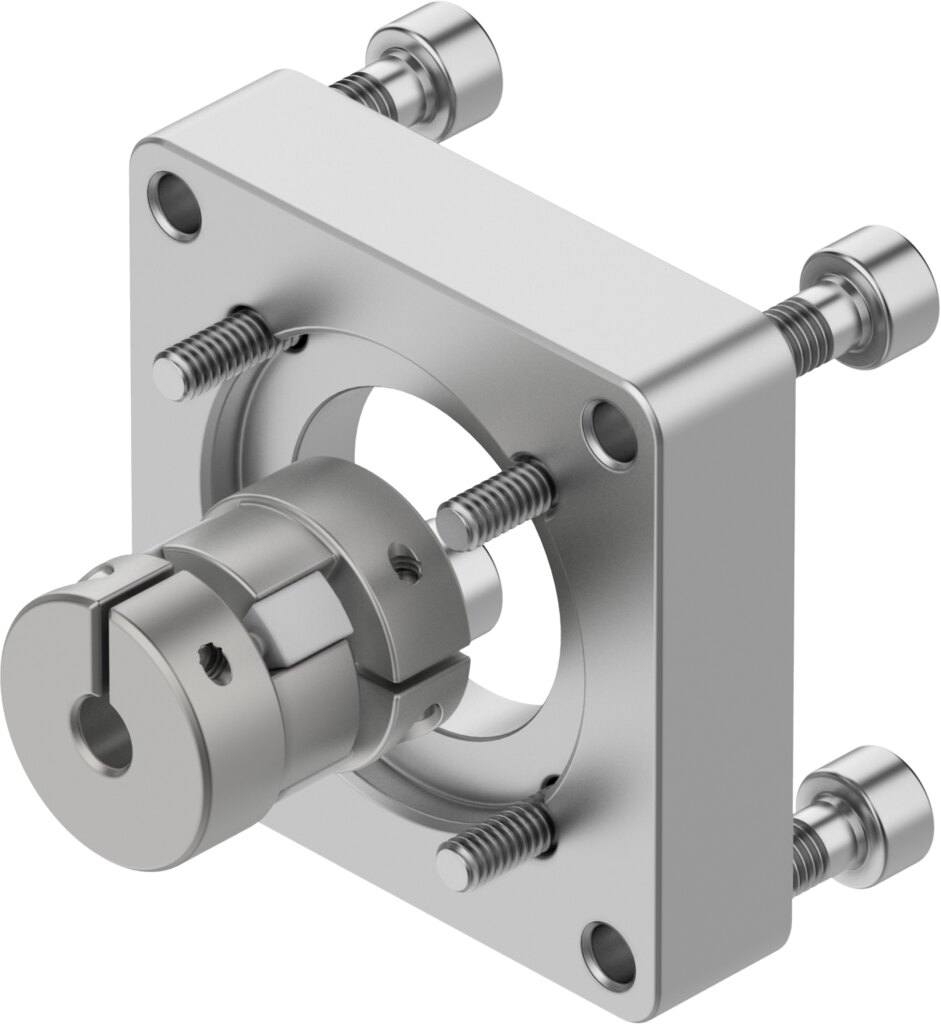

Axial kit for motor mounting, actuator P4-28B, motor 40RA, 0.7 Nm EAMM-A-P4-28B-40RA - Festo 8107708

Festo ✓ Original product Brand new

The axial kit EAMM-A-P4-28B-40RA mounts a motor with interface 40RA in line with a drive carrying interface code P4-28B. It transmits up to 0.7 Nm. Speed up to 10000 1/min, degree of protection IP40. Mass moment of inertia 0.28 kgmm².

Net
€165.74
excl. VAT
Item FES-8107708
Manufacturer no. EAMM-A-P4-28B-40RA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-P4-28B-40RA connects a motor with interface code 40RA coaxially to an electric drive with interface P4-28B. Transmittable torque is 0.7 Nm, maximum speed 10000 1/min.

Benefits

  • Transmittable torque 0.7 Nm between motor and drive
  • Speed up to 10000 1/min
  • Mass moment of inertia 0.28 kgmm² as input for drive sizing
  • Interfaces actuator P4-28B, motor 40RA, coupling housing 28B
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The EAMM-A-P4-28B-40RA is used whenever a motor with interface code 40RA has to be fitted to an electric drive with interface P4-28B. Typical applications are positioning axes in assembly, packaging and laboratory automation.

Technical data

Nominal length10.5 mm
Mounting positionAny
Max. rotational speed10000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia0.28 kgmm²
Transmittable torque0.7 Nm
Product weight50 g
Interface code, actuatorP4-28B
Interface code, motor in40RA
Interface code, clutch housing28B
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-P4-28B-40RA
EAN4052568551285
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
