Images are examples, some edited with AI. The technical data are authoritative. AI notice

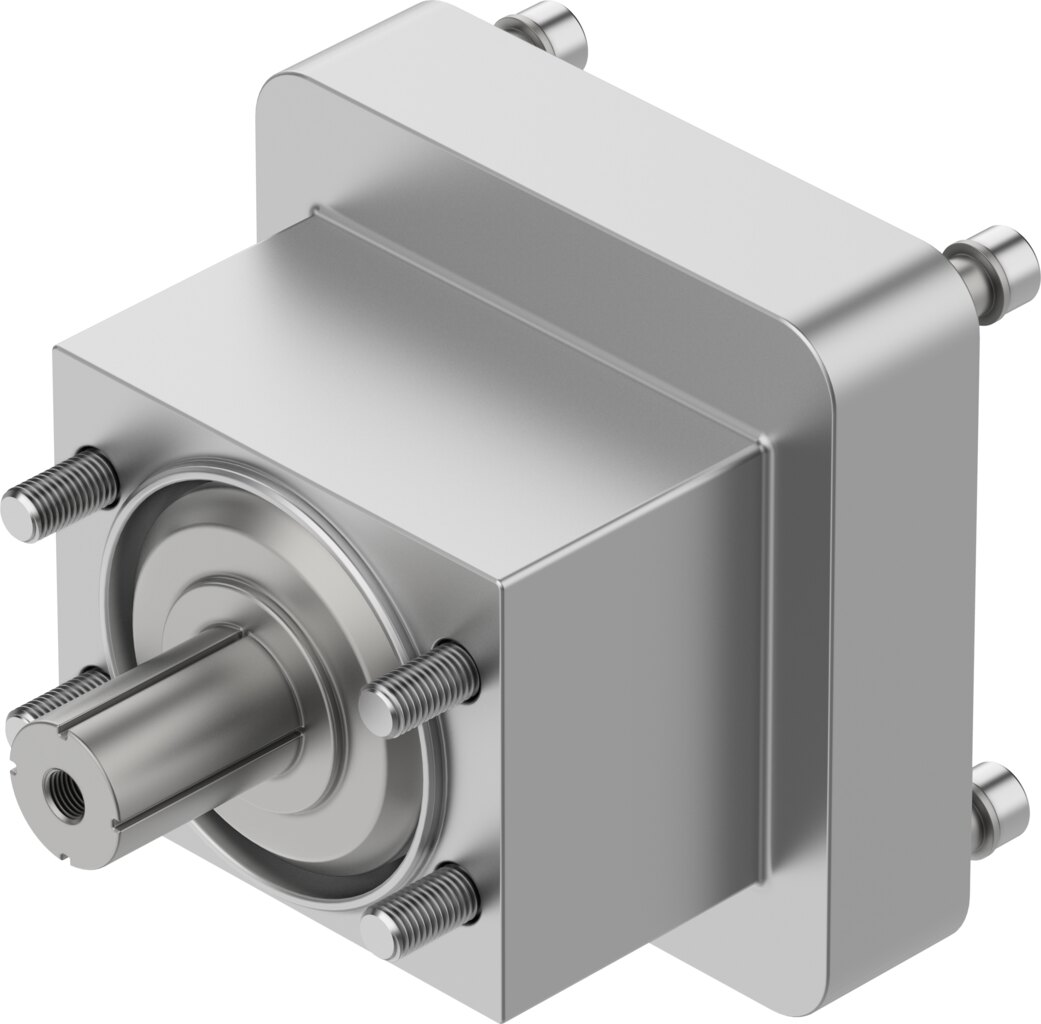

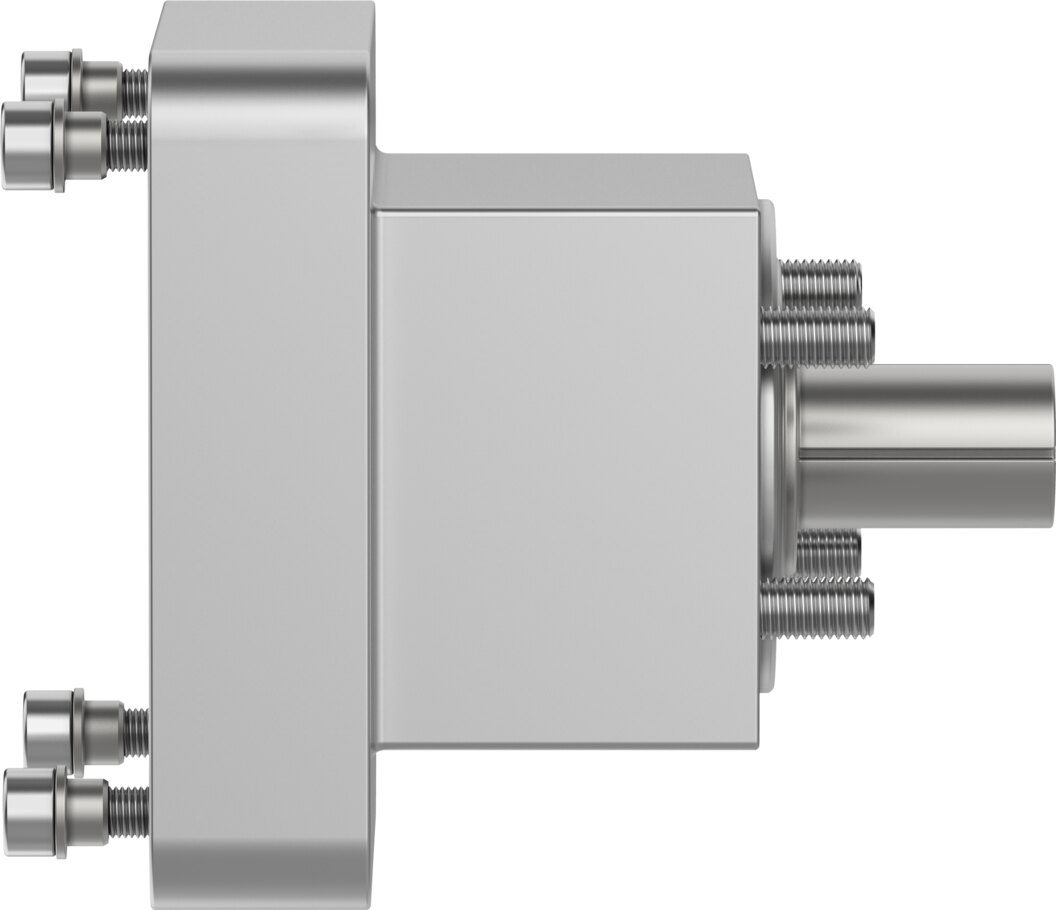

Axial kit for motor mounting, actuator N48, motor 80PB or 80R, 17 Nm EAMM-A-N48-80PB - Festo 8107714

Festo ✓ Original product Brand new

Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-N48-80PB fits actuator N48 and motor 80PB or 80R and transmits up to 17 Nm. Speed up to 6000 1/min, degree of protection IP40. Mass moment of inertia 45 kgmm².

Net
€303.83
excl. VAT
Item FES-8107714
Manufacturer no. EAMM-A-N48-80PB
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-N48-80PB connects a motor with interface code 80PB or 80R coaxially to an electric drive with interface N48. Transmittable torque is 17 Nm, maximum speed 6000 1/min.

Benefits

  • Transmittable torque 17 Nm between motor and drive
  • Speed up to 6000 1/min
  • Mass moment of inertia 45 kgmm² as input for drive sizing
  • Interfaces actuator N48, motor 80PB or 80R
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The kit sits between motor and electric drive, for example when building handling systems, gantries and feeders. On the drive side it fits interface code N48, on the motor side 80PB or 80R.

Technical data

Nominal length54 mm
Mounting positionAny
Max. rotational speed6000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia45 kgmm²
Transmittable torque17 Nm
Product weight625 g
Interface code, actuatorN48
Interface code, motor in80PB, 80R
Note on materialsRoHS compliant
Weight0.8 kg
ManufacturerFesto
Hersteller-NrEAMM-A-N48-80PB
EAN4052568551322
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
