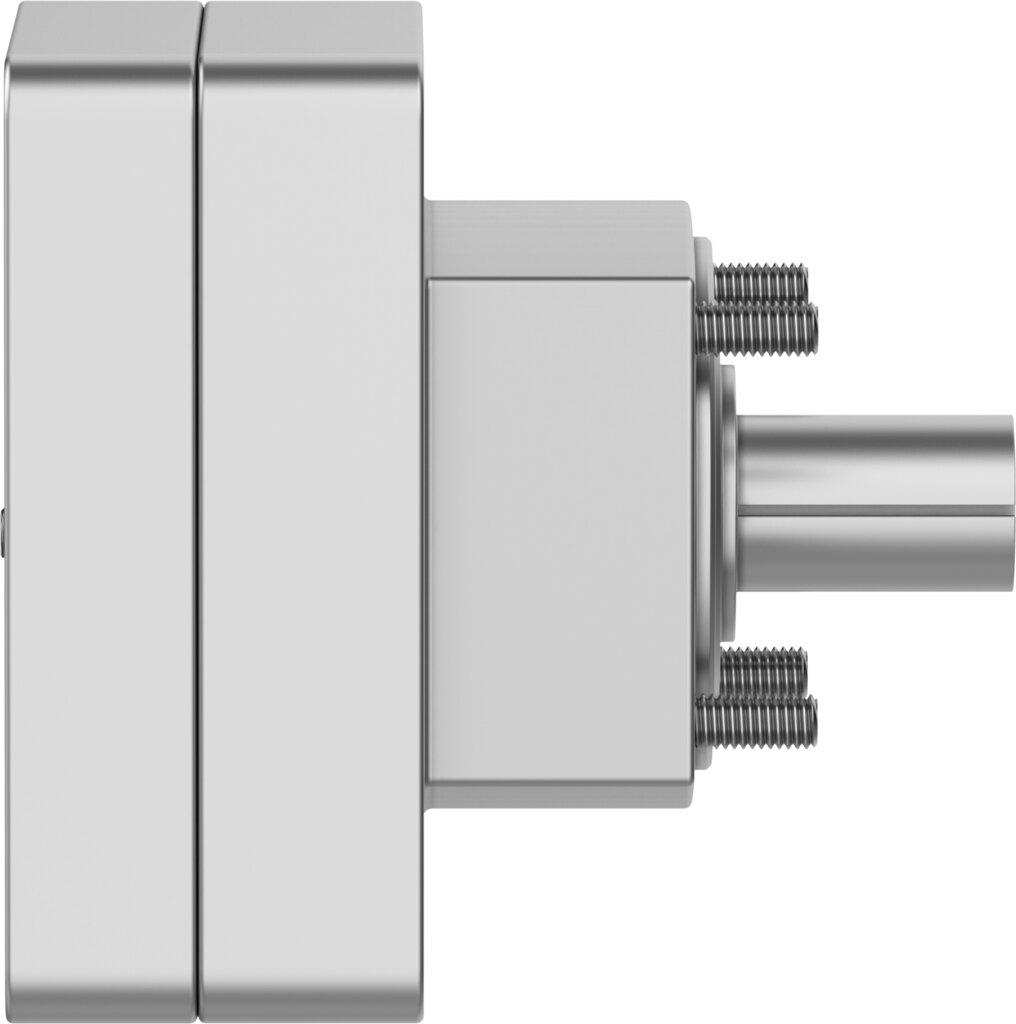

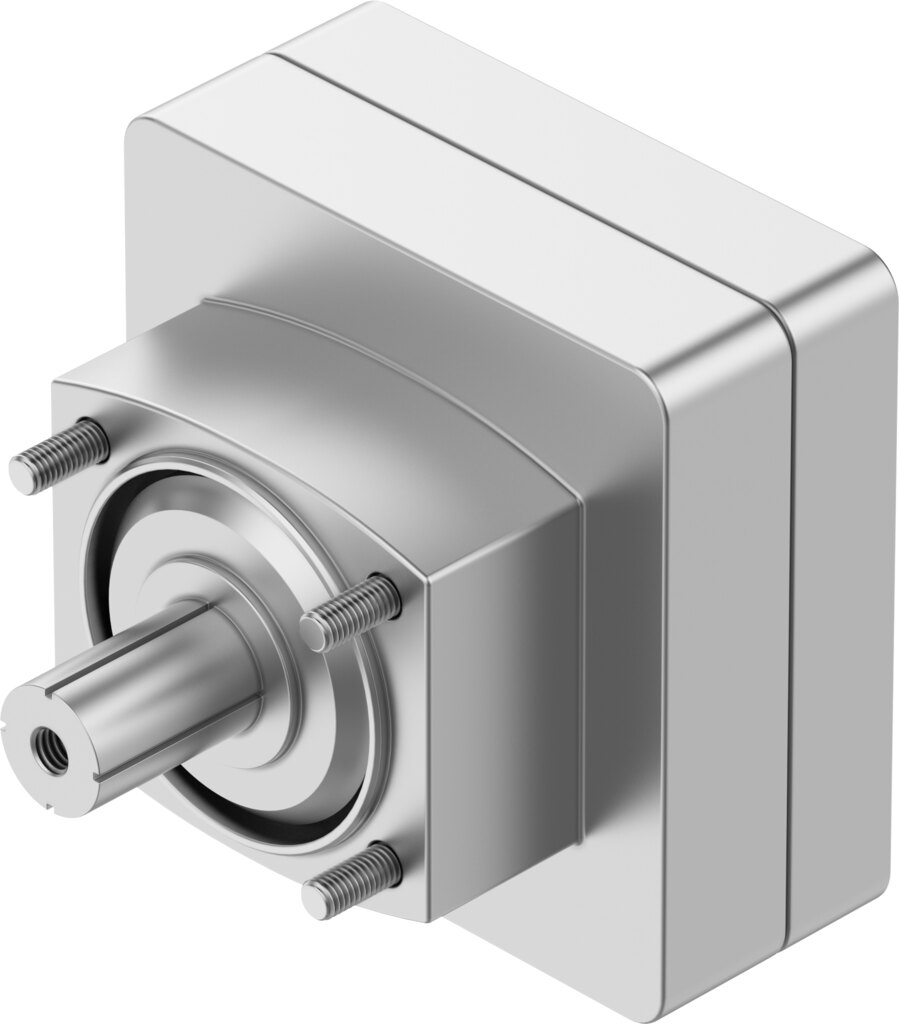

Axial kit for motor mounting, 21 Nm, actuator L48, motor 70GA EAMM-A-L48-70GA-G2 - Festo 8188640
For axial motor mounting with motor and axis in line, the axial kit EAMM-A-L48-70GA-G2 is the matching part. Up to 21 Nm of torque is transmitted, the part is rated for up to 6000 1/min. Matches actuator interface L48 and motor interface 70GA.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For axial motor mounting with motor and axis in line, the axial kit EAMM-A-L48-70GA-G2 is the matching part. Up to 21 Nm of torque is transmitted, the part is rated for up to 6000 1/min.
Benefits
- Transmittable torque 21 Nm
- Speeds up to 6000 1/min
- Mass moment of inertia 39 kgmm² for sizing the drive
- Degree of protection IP40, protected against solid objects from 1 mm
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -10 to 60 °C
Application
EAMM-A-L48-70GA-G2 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMM-A-L48-70GA-G2 in the table are decisive for selection.
Technical data
| Type | EAMM-A-L48-70GA-G2 |
|---|---|
| Festo part no. | 8188640 |
| Nominal length | 53.5 mm |
| Transmittable torque | 21 Nm |
| Max. rotational speed | 6000 1/min |
| Mass moment of inertia | 39 kgmm² |
| Interface code, actuator | L48 |
| Interface code, motor in | 70GA |
| Degree of protection | IP40 |
| Mounting position | Any |
| Ambient temperature | -10 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 725 g |
| Note on materials | RoHS compliant |
| Weight | 0.85 kg |
| Manufacturer | Festo |
| Hersteller-Nr | EAMM-A-L48-70GA-G2 |
| EAN | 4052568647810 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMM |
| Protection rating | IP40 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
