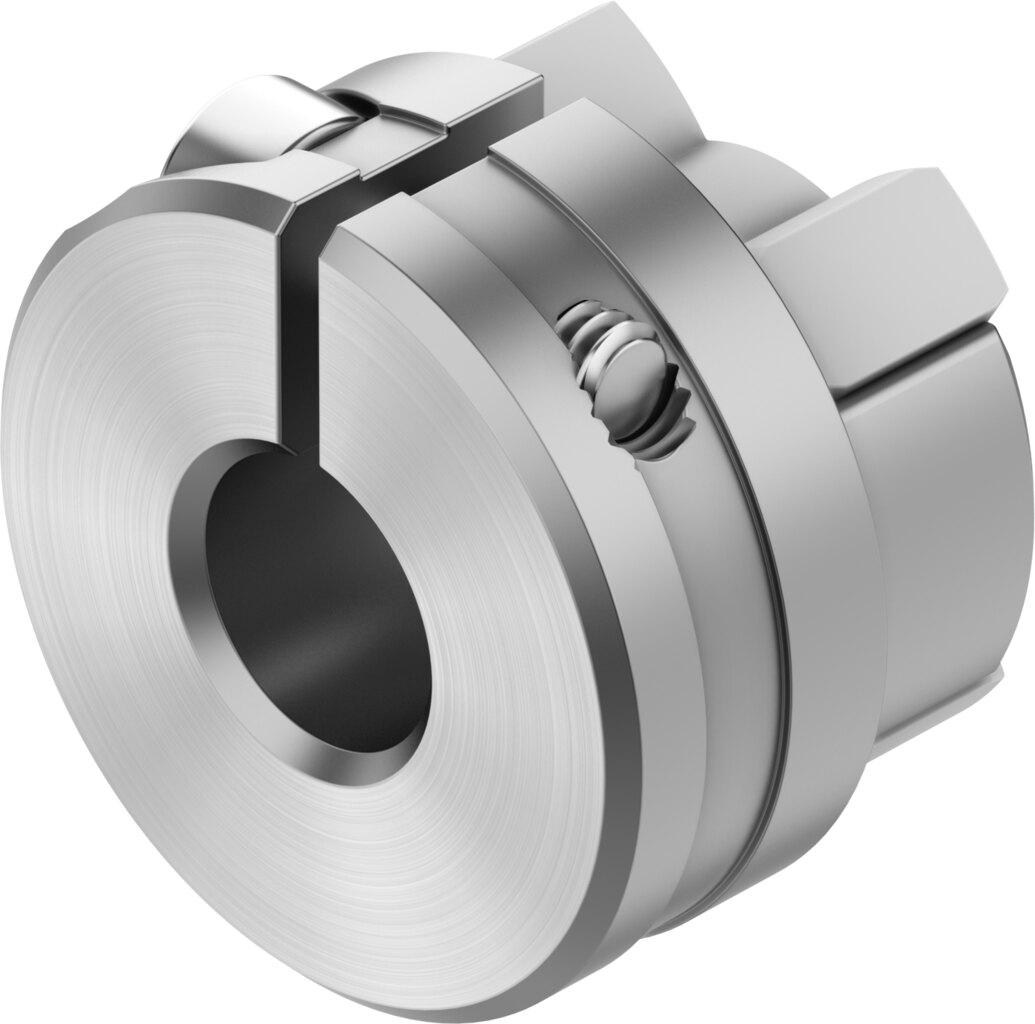

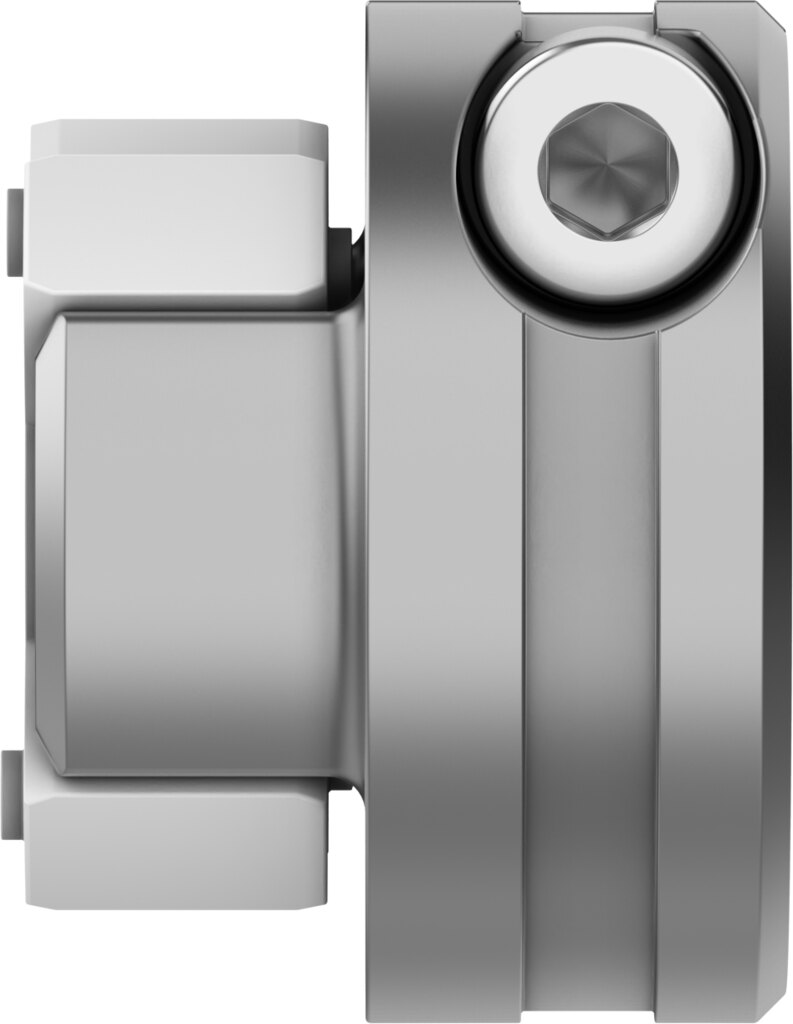

Coupling hub for motor mounting Ø 6 mm, size 15 EAMC-H-15-7-GB8-6 - Festo 8228648

Festo ✓ Original product Brand new

The coupling hub EAMC-H-15-7-GB8-6 is the shaft-side half of the coupling used for motor mounting. The mounting diameter is 6 mm. The transmittable torque is 2 Nm, the maximum speed is 10000 1/min.

Net
€41.05
excl. VAT
Item FES-8228648
Manufacturer no. EAMC-H-15-7-GB8-6
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The coupling hub EAMC-H-15-7-GB8-6 is the shaft-side half of the coupling used for motor mounting. The transmittable torque is 2 Nm, the maximum speed is 10000 1/min.

Key benefits

  • Transmittable torque 2 Nm
  • Speeds up to 10000 1/min
  • Mass moment of inertia 0.191 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMC-H-15-7-GB8-6 is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMC-H-15-7-GB8-6 in the table are decisive for selection.

Technical data

TypeEAMC-H-15-7-GB8-6
Festo part no.8228648
Size15
Nominal length12.4 mm
Mounting diameter 16 mm
Transmittable torque2 Nm
Max. rotational speed10000 1/min
Mass moment of inertia0.191 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight5 g
Note on materialsRoHS compliant
Weight0.007 kg
ManufacturerFesto
Hersteller-NrEAMC-H-15-7-GB8-6
EAN4052568769376
Zolltarifnummer84839089
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMC
Bore (mm)6
Temperature (max.)60
