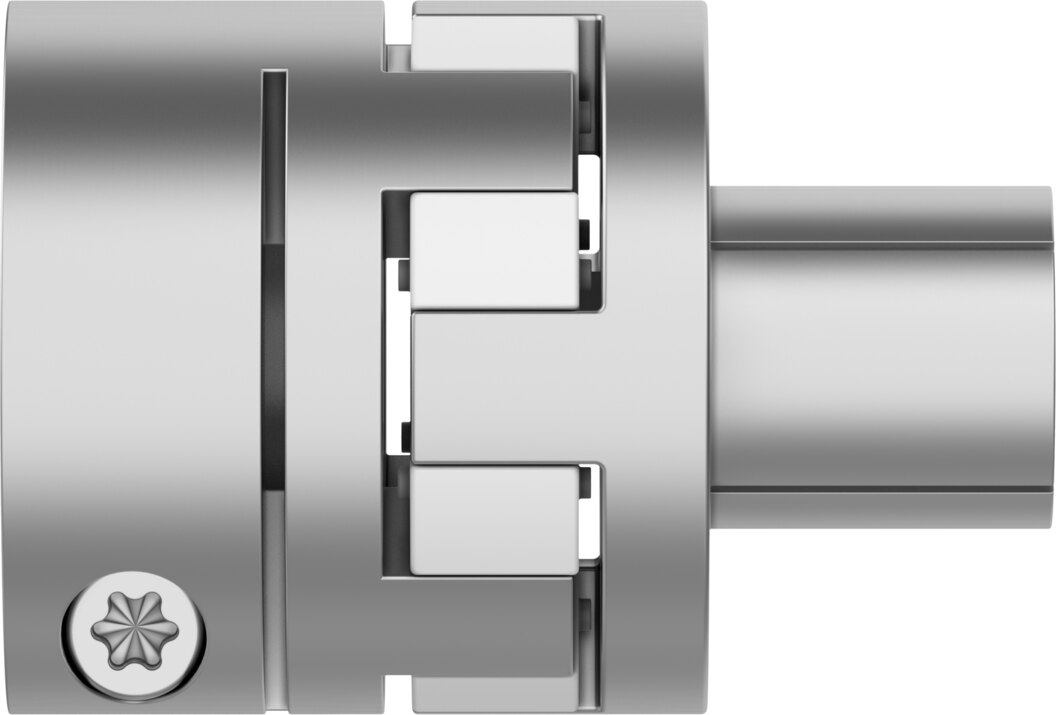

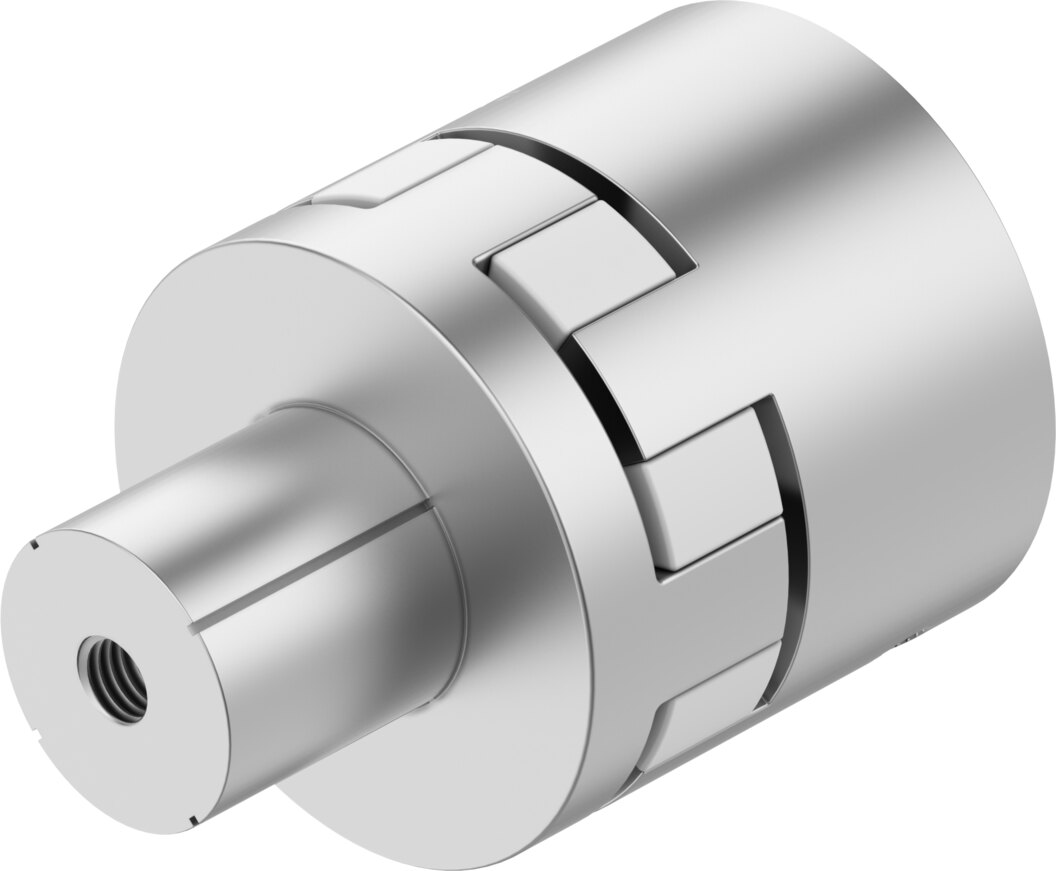

Coupling for motor mounting Ø 25/32 mm, 115 Nm EAMD-67-65-25-32X32-U - Festo 8196715

Festo ✓ Original product Brand new

The shaft coupling EAMD-67-65-25-32X32-U connects motor and drive when mounting a motor to an electric axis. The mounting diameters are 25 mm and 32 mm. Up to 115 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Net
€246.33
excl. VAT
Item FES-8196715
Manufacturer no. EAMD-67-65-25-32X32-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The shaft coupling EAMD-67-65-25-32X32-U connects motor and drive when mounting a motor to an electric axis. Up to 115 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Benefits

  • Transmittable torque 115 Nm
  • Speeds up to 4500 1/min
  • Mass moment of inertia 430 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Typical in machine building and handling, wherever a motor is connected to an electric axis. The values in the table are decisive for selection and apply to EAMD-67-65-25-32X32-U.

Technical data

TypeEAMD-67-65-25-32X32-U
Festo part no.8196715
Size67
Nominal length65 mm
Mounting diameter 125 mm
Mounting diameter 232 mm
Transmittable torque115 Nm
Max. rotational speed4500 1/min
Mass moment of inertia430 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight844 g
Note on materialsRoHS compliant
Weight0.9 kg
ManufacturerFesto
Hersteller-NrEAMD-67-65-25-32X32-U
EAN4052568642419
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)25
Temperature (max.)60
