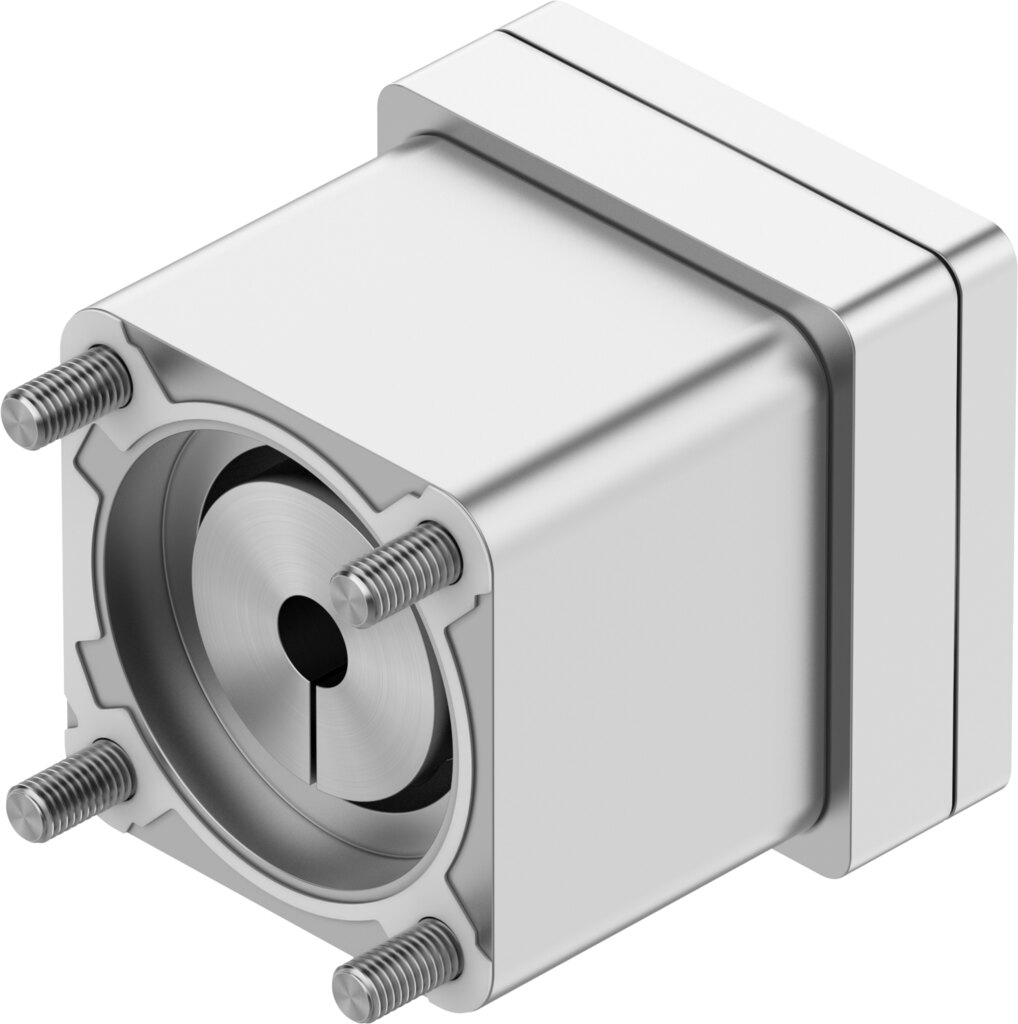

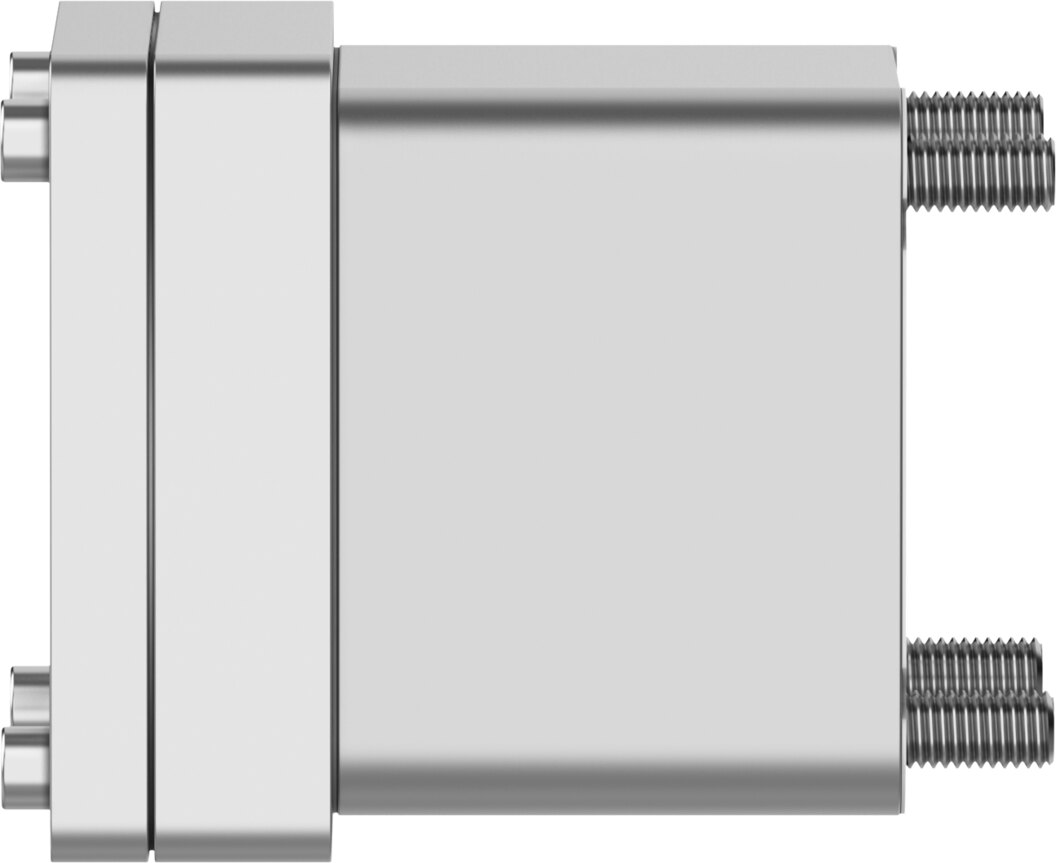

Axial kit for motor mounting, 21 Nm, actuator D60, motor 60G EAMM-A-D60-60G-S1-G3 - Festo 8234789

Festo ✓ Original product Brand new

The axial kit EAMM-A-D60-60G-S1-G3 mounts the motor in line with the electric axis. The transmittable torque is 21 Nm, speeds of up to 6000 1/min are permitted. The codes D60 (actuator) and 60G (motor) define the match.

Net
€387.09
excl. VAT
Item FES-8234789
Manufacturer no. EAMM-A-D60-60G-S1-G3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-D60-60G-S1-G3 mounts the motor in line with the electric axis. The transmittable torque is 21 Nm, speeds of up to 6000 1/min are permitted.

Benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² for sizing the drive
  • Degree of protection IP65, dust-tight and protected against water jets
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-A-D60-60G-S1-G3 fits without rework.

Technical data

TypeEAMM-A-D60-60G-S1-G3
Festo part no.8234789
Nominal length76.5 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia34.8 kgmm²
Interface code, actuatorD60
Interface code, motor in60G
Degree of protectionIP65
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight1210 g
Note on materialsRoHS compliant
Weight1.3 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D60-60G-S1-G3
EAN4052568780166
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
