Axial kit for motor mounting, 21 Nm, actuator D50, motor 60H EAMM-A-D50-60H-S1-G2 - Festo 8197491

Festo ✓ Original product Brand new

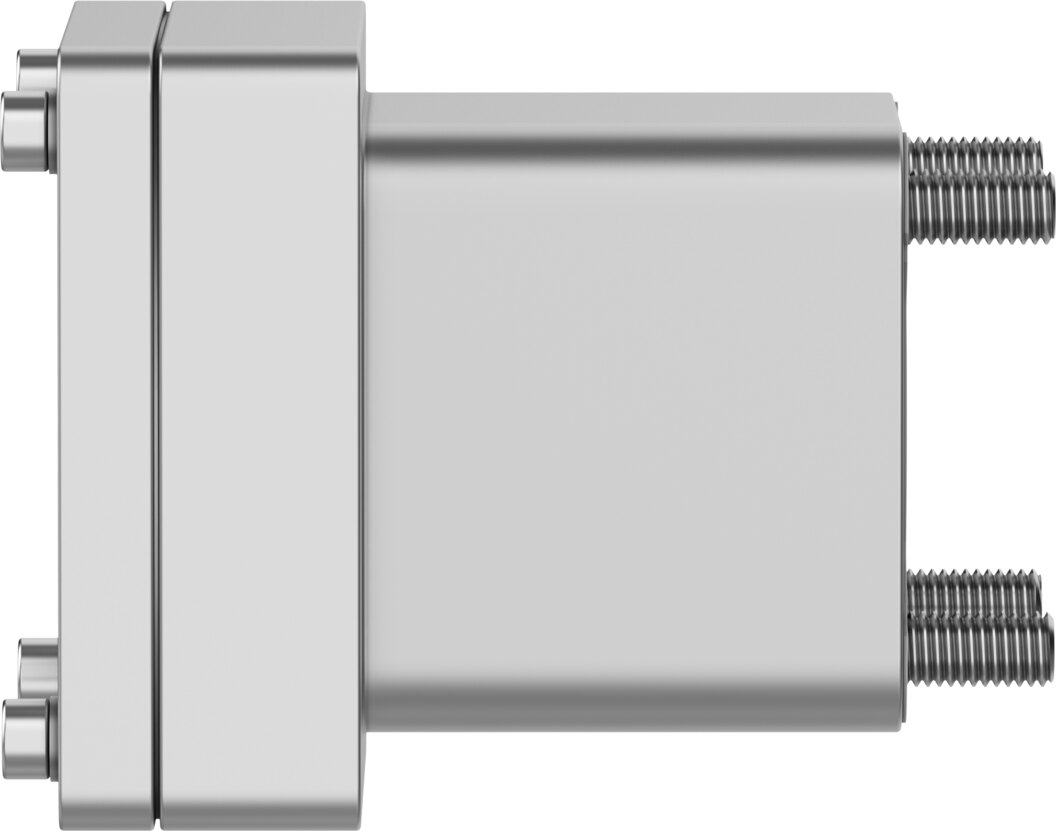

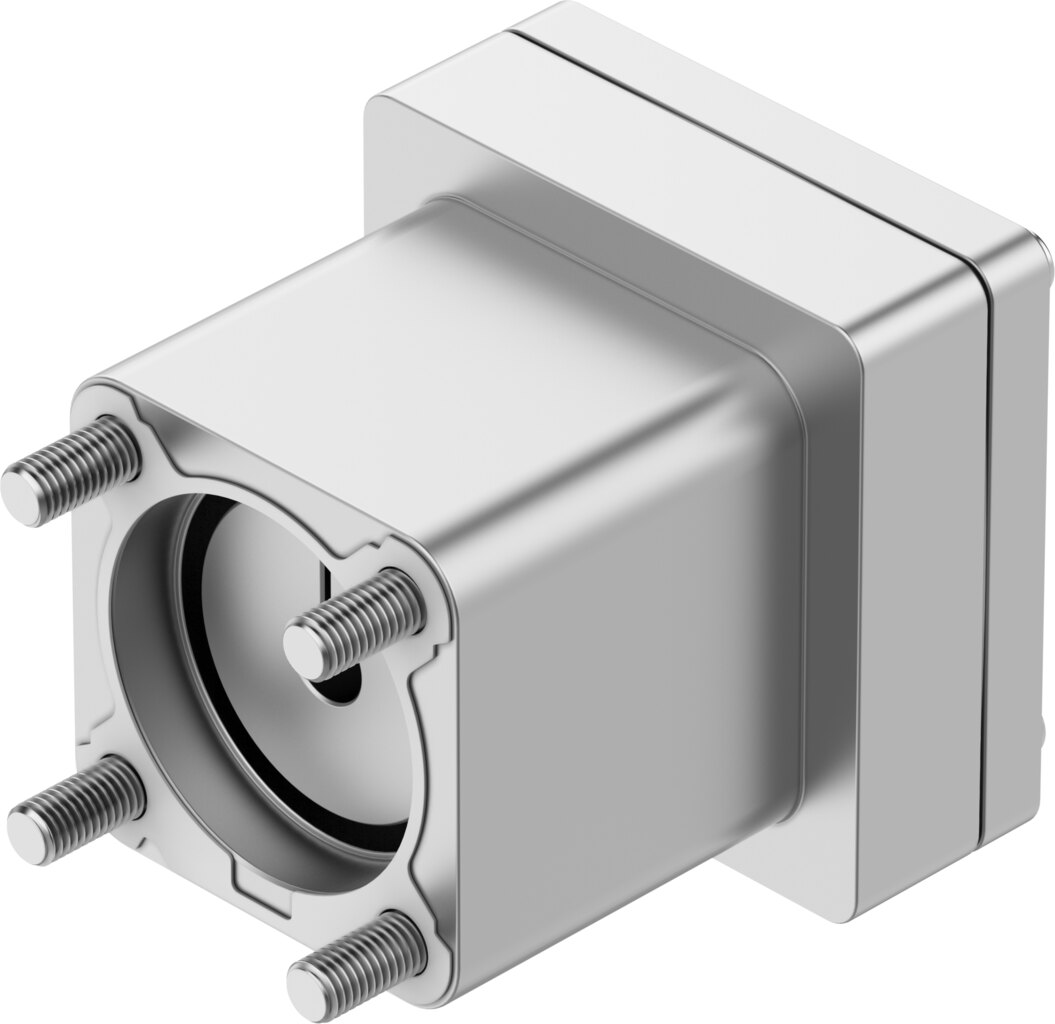

The axial kit EAMM-A-D50-60H-S1-G2 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, speeds of up to 6000 1/min are permitted. Actuator interface code D50, motor side 60H.

Net
€328.44
excl. VAT
Item FES-8197491
Manufacturer no. EAMM-A-D50-60H-S1-G2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The axial kit EAMM-A-D50-60H-S1-G2 mounts the motor in line with the electric axis. It transmits up to 21 Nm of torque, speeds of up to 6000 1/min are permitted.

Key benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 34.8 kgmm² for sizing the drive
  • Degree of protection IP65, dust-tight and protected against water jets
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -10 to 60 °C

Application

For mounting a motor to Festo electric axes. Before ordering, compare the interface codes of axis and motor with the table, so EAMM-A-D50-60H-S1-G2 fits without rework.

Technical data

TypeEAMM-A-D50-60H-S1-G2
Festo part no.8197491
Nominal length78.5 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia34.8 kgmm²
Interface code, actuatorD50
Interface code, motor in60H
Degree of protectionIP65
Mounting positionAny
Ambient temperature-10 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight950 g
Note on materialsRoHS compliant
Weight1 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D50-60H-S1-G2
EAN4052568646530
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP65
Temperaturbereich-10-60 °C
Temperature (max.)60
