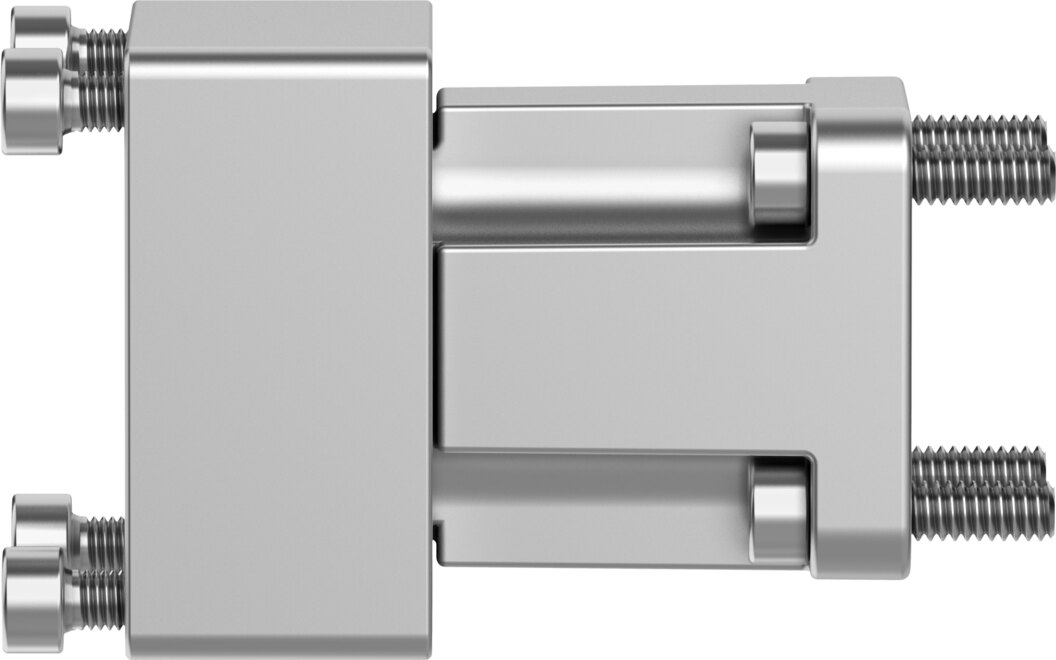

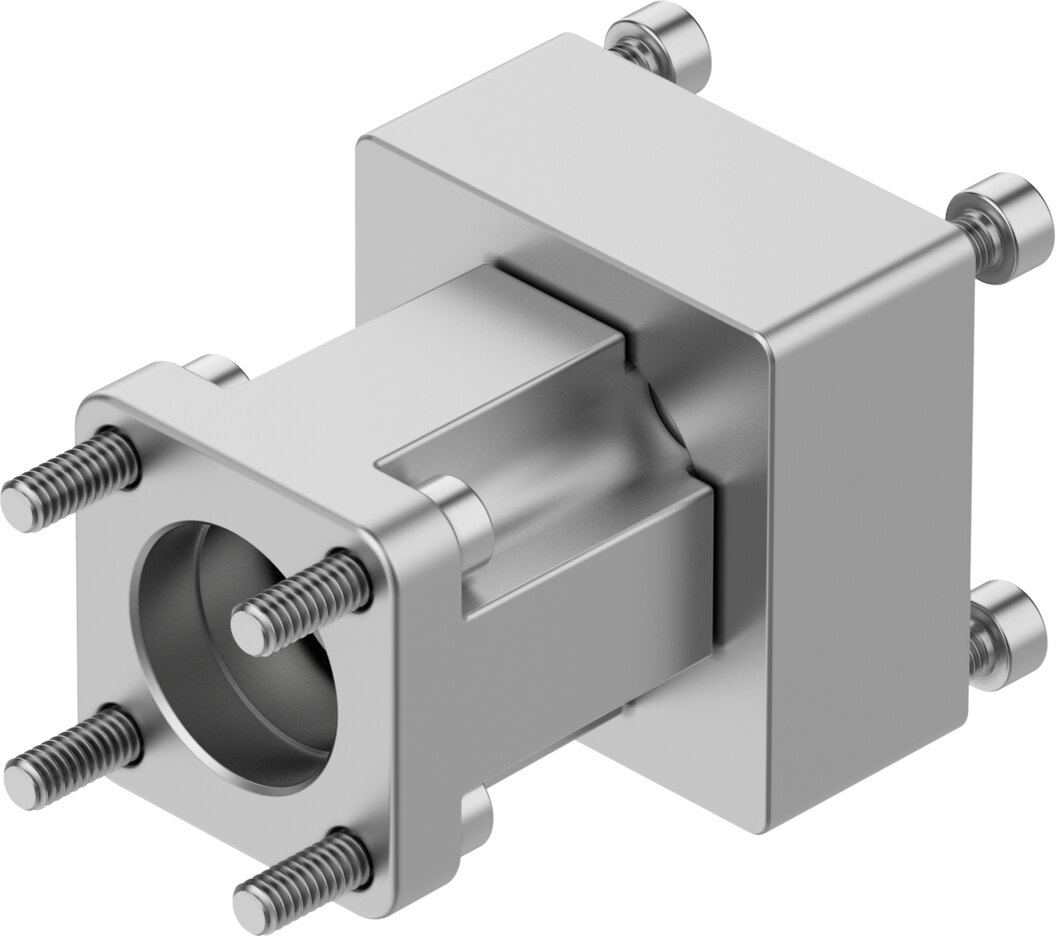

Axial kit for motor mounting, actuator D19, motor 40R, 1.1 Nm EAMM-A-D19-40R - Festo 8105867

Festo ✓ Original product Brand new

Connect motor and electric drive axially without designing your own adapter parts: the axial kit EAMM-A-D19-40R fits actuator D19 and motor 40R and transmits up to 1.1 Nm. Speed up to 10000 1/min, degree of protection IP40. Mass moment of inertia 0.28 kgmm².

Net
€193.35
excl. VAT
Item FES-8105867
Manufacturer no. EAMM-A-D19-40R
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo axial kit EAMM-A-D19-40R connects a motor with interface code 40R coaxially to an electric drive with interface D19. Transmittable torque is 1.1 Nm, maximum speed 10000 1/min.

Benefits

  • Transmittable torque 1.1 Nm between motor and drive
  • Speed up to 10000 1/min
  • Mass moment of inertia 0.28 kgmm² as input for drive sizing
  • Interfaces actuator D19, motor 40R
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

The EAMM-A-D19-40R is used whenever a motor with interface code 40R has to be fitted to an electric drive with interface D19. Typical applications are positioning axes in assembly, packaging and laboratory automation.

Technical data

Nominal length51.2 mm
Mounting positionAny
Max. rotational speed10000 1/min
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia0.28 kgmm²
Transmittable torque1.1 Nm
Product weight133 g
Interface code, actuatorD19
Interface code, motor in40R
Note on materialsRoHS compliant
ManufacturerFesto
Hersteller-NrEAMM-A-D19-40R
EAN4052568550677
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
