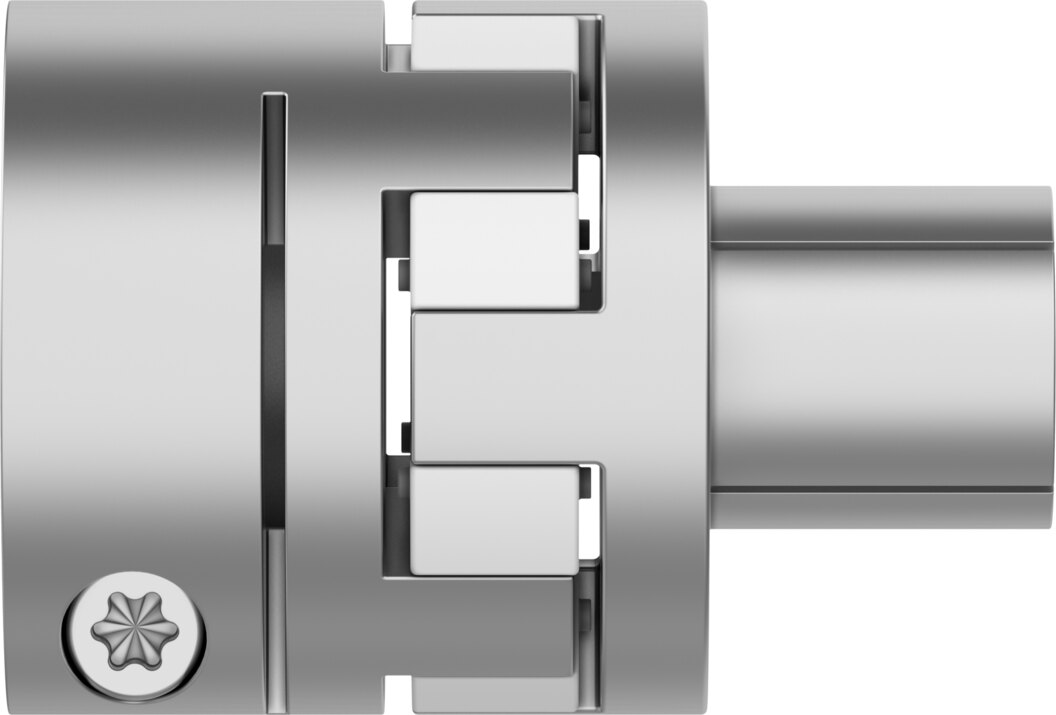

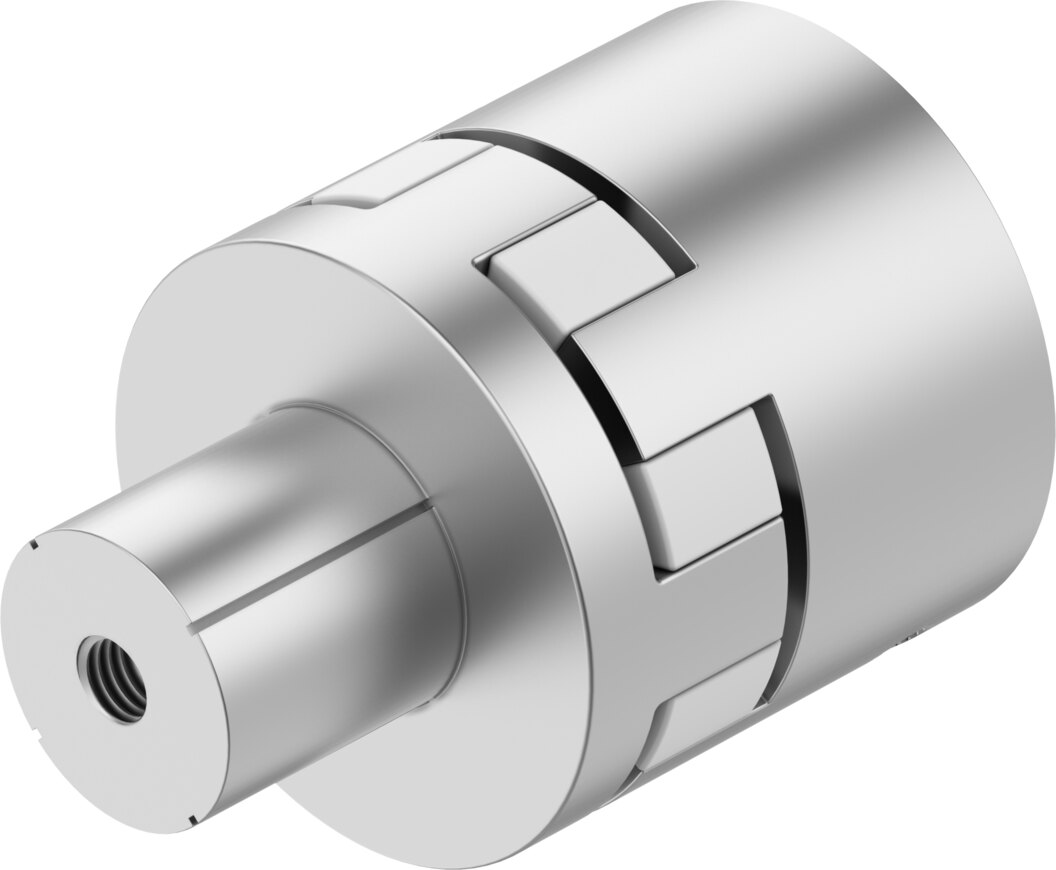

Coupling for motor mounting Ø 32/32 mm, 145 Nm EAMD-67-65-32-32X32-U - Festo 8196716

Festo ✓ Original product Brand new

As the link between two shafts, the coupling EAMD-67-65-32-32X32-U transmits the motor torque. The mounting diameters are 32 mm and 32 mm. Up to 145 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Net
€246.33
excl. VAT
Item FES-8196716
Manufacturer no. EAMD-67-65-32-32X32-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

As the link between two shafts, the coupling EAMD-67-65-32-32X32-U transmits the motor torque. Up to 145 Nm of torque is transmitted, the part is rated for up to 4500 1/min.

Key benefits

  • Transmittable torque 145 Nm
  • Speeds up to 4500 1/min
  • Mass moment of inertia 430 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMD-67-65-32-32X32-U.

Technical data

TypeEAMD-67-65-32-32X32-U
Festo part no.8196716
Size67
Nominal length65 mm
Mounting diameter 132 mm
Mounting diameter 232 mm
Transmittable torque145 Nm
Max. rotational speed4500 1/min
Mass moment of inertia430 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight816 g
Note on materialsRoHS compliant
Weight0.85 kg
ManufacturerFesto
Hersteller-NrEAMD-67-65-32-32X32-U
EAN4052568642426
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)32
Temperature (max.)60
