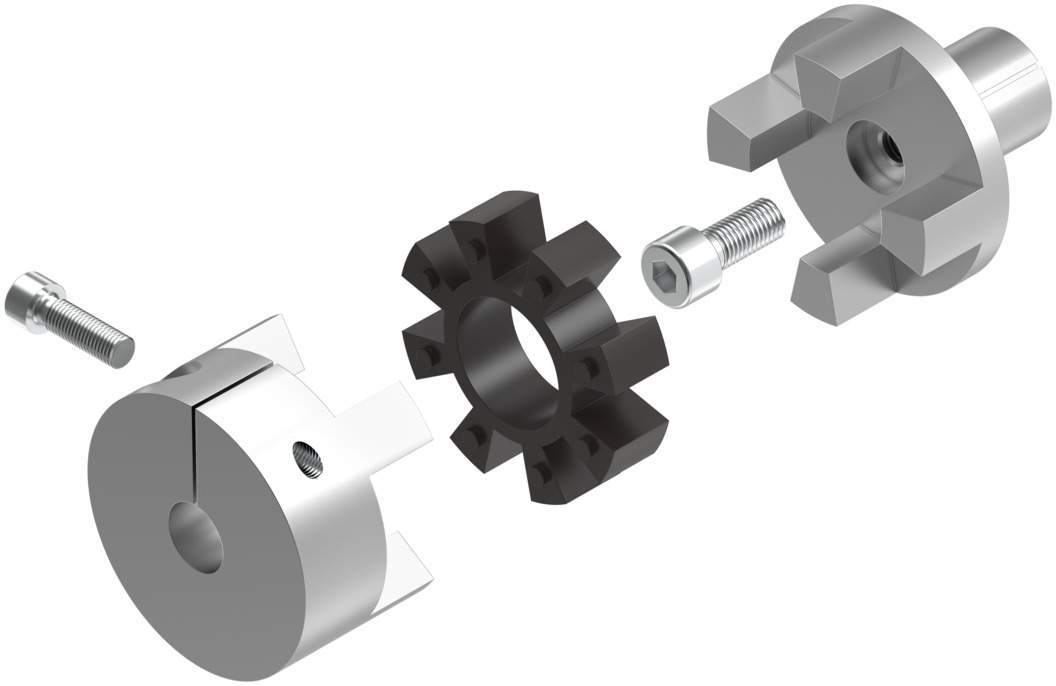

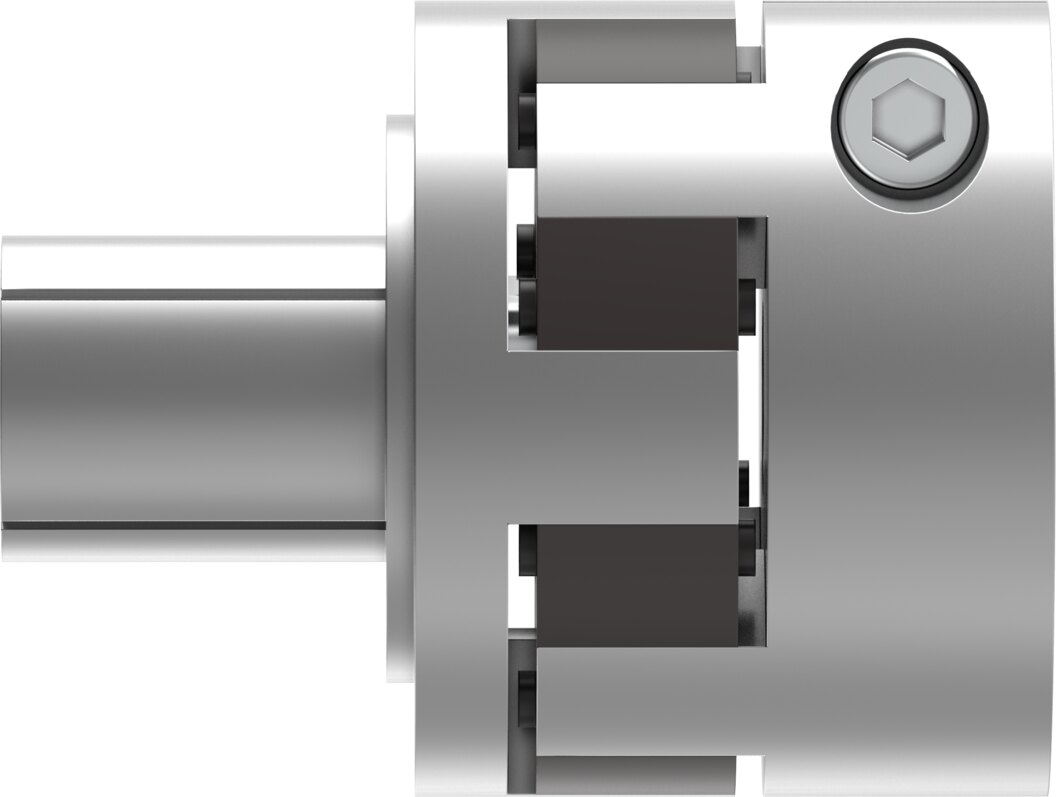

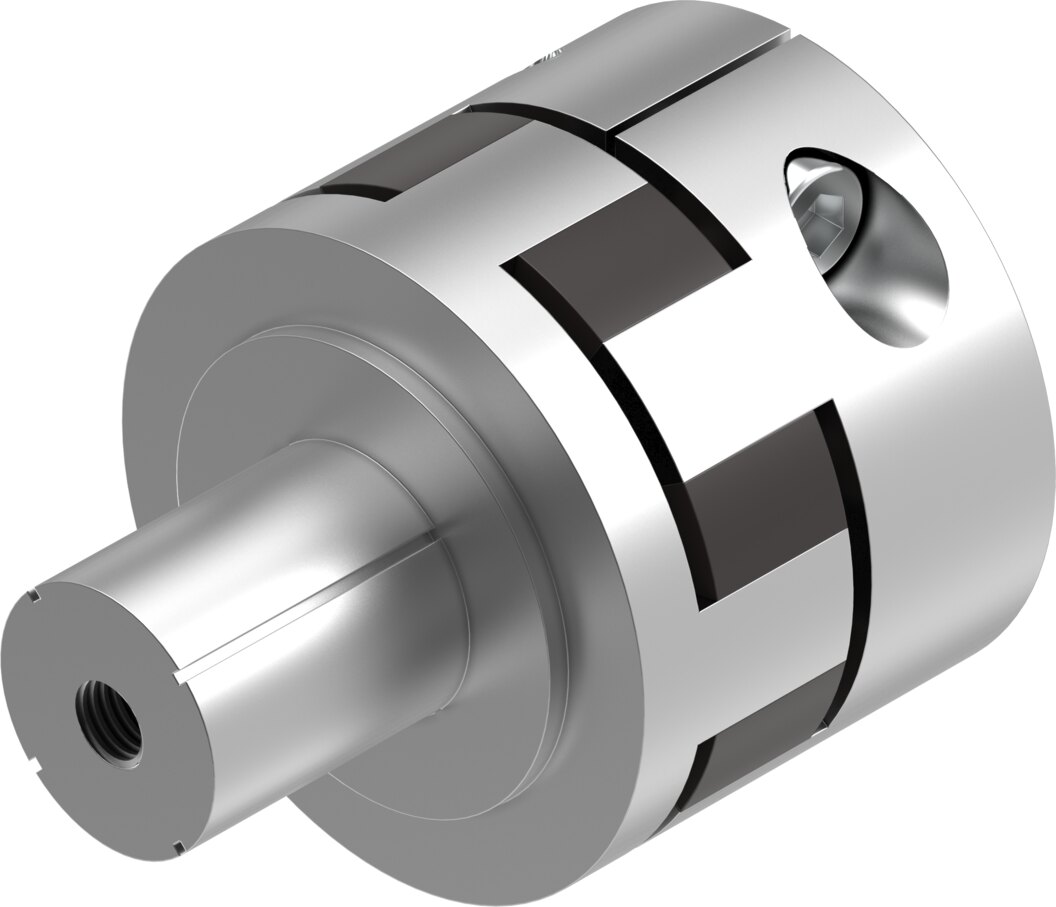

Coupling for motor mounting Ø 16/23 mm, 47 Nm EAMD-56-46-16-23X27 - Festo 8166642
The coupling EAMD-56-46-16-23X27 transmits torque from the motor to the drive shaft of the axis. The mounting diameters are 16 mm and 23 mm. Up to 47 Nm of torque is transmitted, the part is rated for up to 5500 1/min.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The coupling EAMD-56-46-16-23X27 transmits torque from the motor to the drive shaft of the axis. Up to 47 Nm of torque is transmitted, the part is rated for up to 5500 1/min.
Why this part
- Transmittable torque 47 Nm
- Speeds up to 5500 1/min
- Mass moment of inertia 151 kgmm² for sizing the drive
- LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
- Ambient temperature -25 to 60 °C
- Any mounting position
Application
Used when mounting a motor to a Festo electric axis, as original equipment or as a spare part. The table data come from Festo and apply to EAMD-56-46-16-23X27.
Technical data
| Type | EAMD-56-46-16-23X27 |
|---|---|
| Festo part no. | 8166642 |
| Size | 56 |
| Nominal length | 46 mm |
| Mounting diameter 1 | 16 mm |
| Mounting diameter 2 | 23 mm |
| Transmittable torque | 47 Nm |
| Max. rotational speed | 5500 1/min |
| Mass moment of inertia | 151 kgmm² |
| Mounting position | Any |
| Ambient temperature | -25 to 60 °C |
| Storage temperature | -25 to 60 °C |
| Relative air humidity | 0 - 95 % |
| LABS (PWIS) conformity | VDMA 24364-B2-L |
| Product weight | 422 g |
| Note on materials | RoHS compliant |
| Manufacturer | Festo |
| Hersteller-Nr | EAMD-56-46-16-23X27 |
| EAN | 4052568596378 |
| Zolltarifnummer | 84836080 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Series | EAMD |
| Bore (mm) | 16 |
| Temperature (max.) | 60 |
