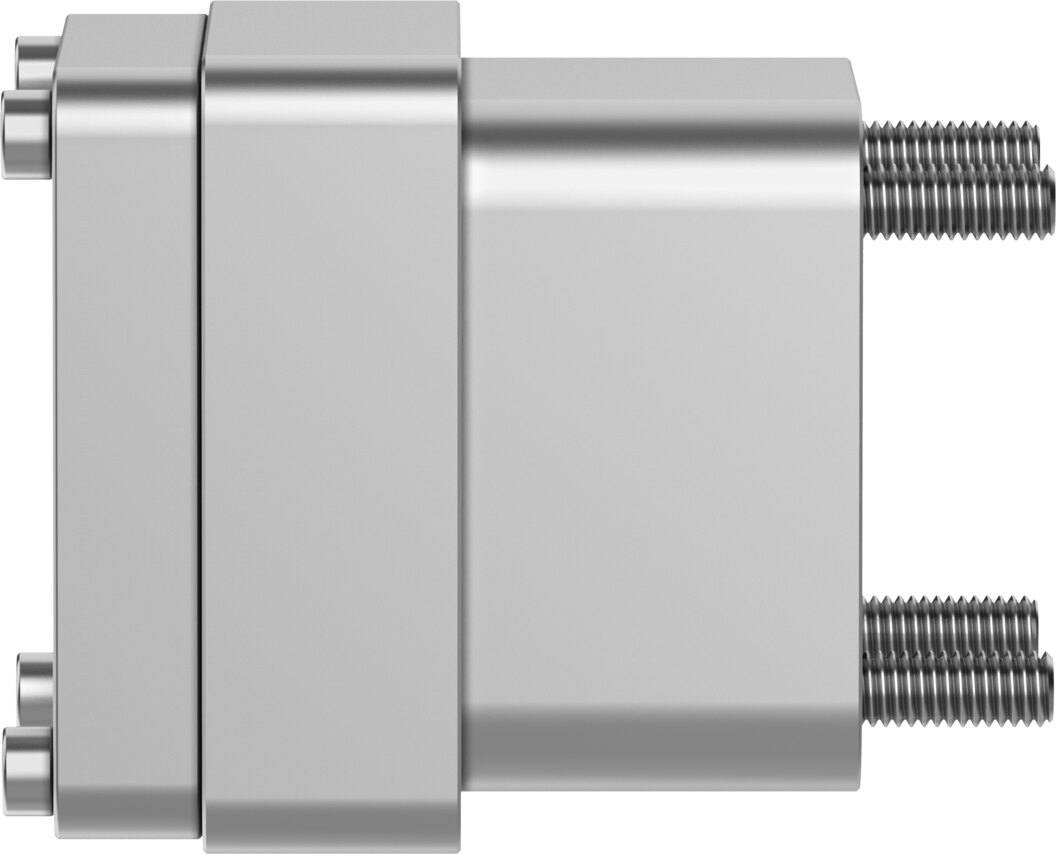

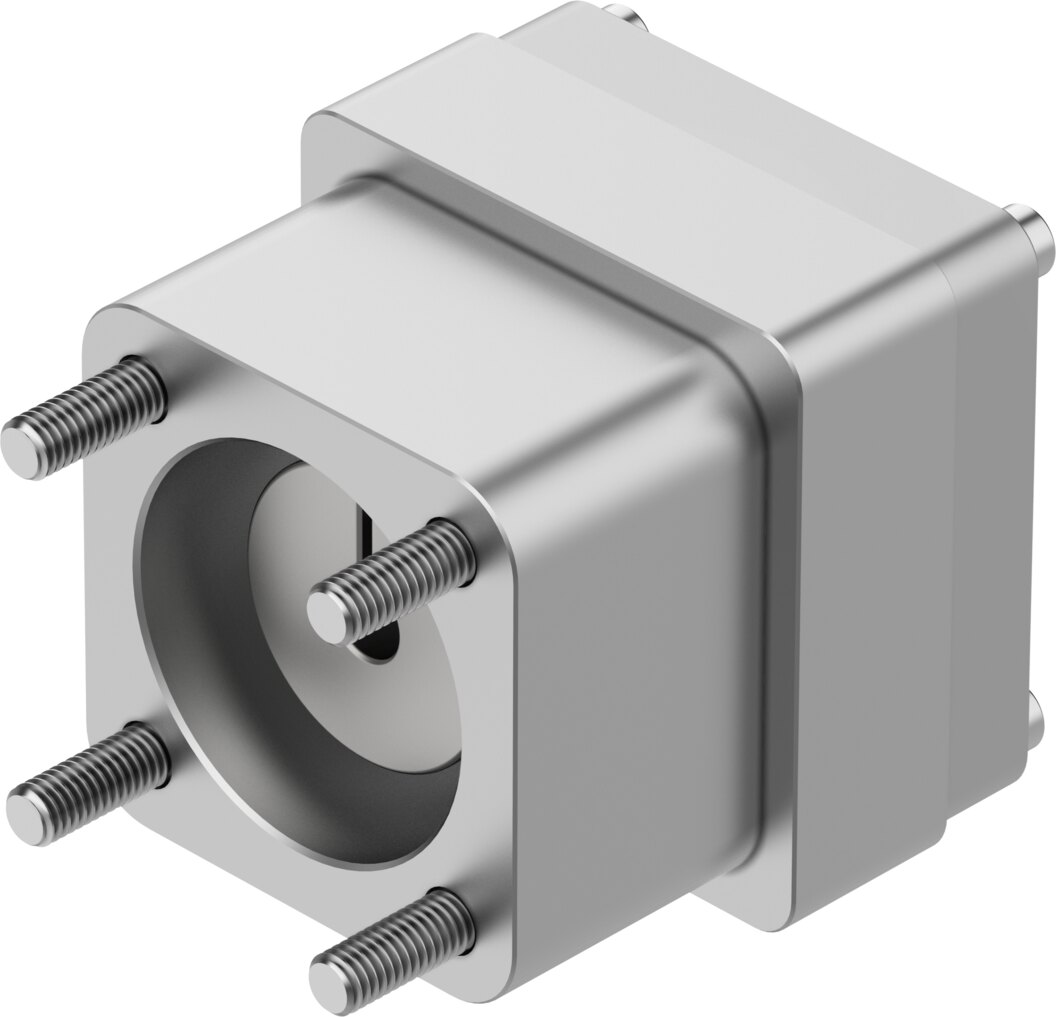

Axial kit for motor mounting, actuator D40, motor 50GA, 12.5 Nm EAMM-A-D40-50GA - Festo 8117076

Festo ✓ Original product Brand new

The axial kit EAMM-A-D40-50GA mounts a motor with interface 50GA in line with a drive carrying interface code D40. It transmits up to 12.5 Nm. Degree of protection IP40. Mass moment of inertia 5.87 kgmm².

Net
€276.21
excl. VAT
Item FES-8117076
Manufacturer no. EAMM-A-D40-50GA
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

12.5 Nm transmittable torque, degree of protection IP40 and matching interfaces for actuator D40 and motor 50GA: with the axial kit EAMM-A-D40-50GA motor mounting is done without designing your own adapter.

Benefits

  • Transmittable torque 12.5 Nm between motor and drive
  • Mass moment of inertia 5.87 kgmm² as input for drive sizing
  • Interfaces actuator D40, motor 50GA
  • Degree of protection IP40, ambient temperature -10 to 60 °C

Applications

When sizing the axis, the mass moment of inertia of 5.87 kgmm² and the transmittable torque of 12.5 Nm feed into the choice of motor and controller. The kit is mounted between motor (50GA) and drive (D40).

Technical data

Mounting positionAny
LABS (PWIS) conformityVDMA24364-B2-L
Storage temperature-25 to 60 °C
Relative air humidity0 - 95%
Degree of protectionIP40
Ambient temperature-10 to 60 °C
Mass moment of inertia5.87 kgmm²
Transmittable torque12.5 Nm
Product weight411 g
Interface code, actuatorD40
Interface code, motor in50GA
Note on materialsRoHS compliant
Weight0.46 kg
ManufacturerFesto
Hersteller-NrEAMM-A-D40-50GA
EAN4052568551421
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMM
Protection ratingIP40
Temperaturbereich-10-60 °C
Temperature (max.)60
