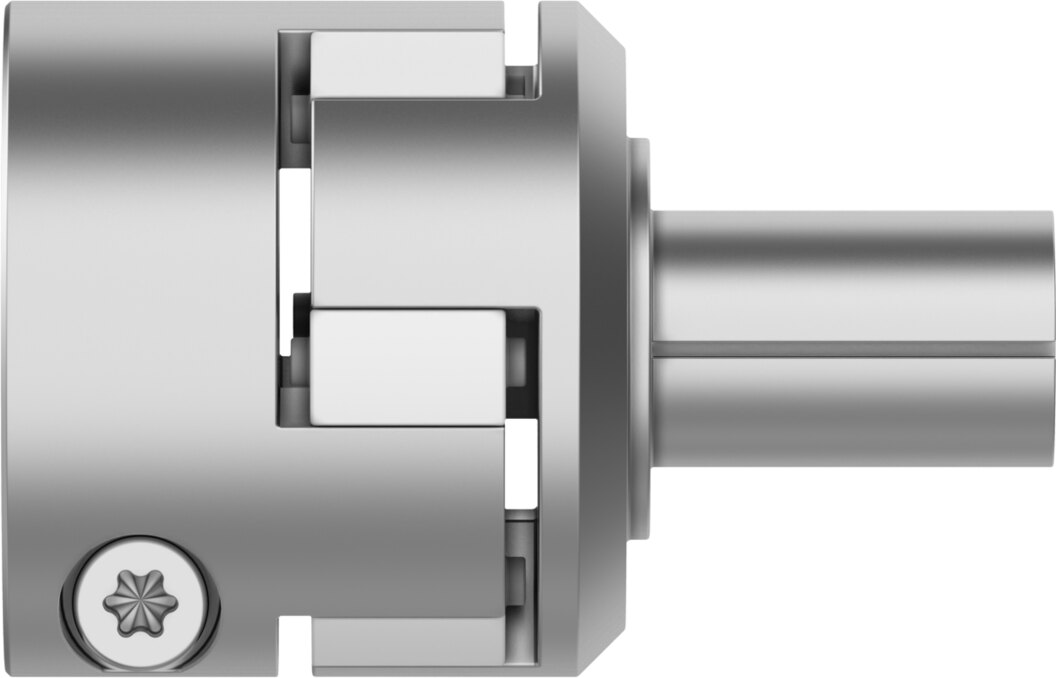

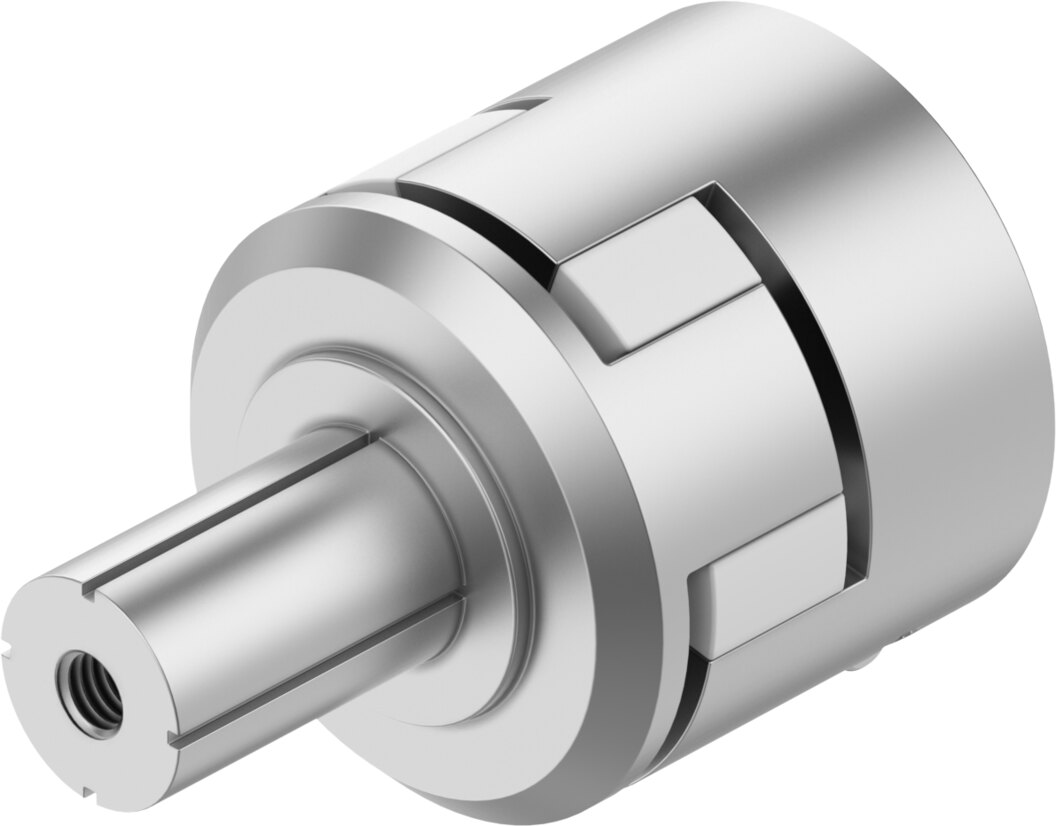

Coupling for motor mounting Ø 12/16 mm, 21 Nm EAMD-42-40-12-16X25-U - Festo 8203728

Festo ✓ Original product Brand new

The shaft coupling EAMD-42-40-12-16X25-U connects motor and drive when mounting a motor to an electric axis. The mounting diameters are 12 mm and 16 mm. Up to 21 Nm of torque is transmitted, the part is rated for up to 6000 1/min.

Net
€99.70
excl. VAT
Item FES-8203728
Manufacturer no. EAMD-42-40-12-16X25-U
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The shaft coupling EAMD-42-40-12-16X25-U connects motor and drive when mounting a motor to an electric axis. Up to 21 Nm of torque is transmitted, the part is rated for up to 6000 1/min.

Key benefits

  • Transmittable torque 21 Nm
  • Speeds up to 6000 1/min
  • Mass moment of inertia 38 kgmm² for sizing the drive
  • LABS (PWIS) conform to VDMA 24364-B2-L, for paint-sensitive areas
  • Ambient temperature -25 to 60 °C
  • Any mounting position

Application

EAMD-42-40-12-16X25-U is fitted when mounting motors to Festo electric axes, in new designs or as a replacement. The Festo data for EAMD-42-40-12-16X25-U in the table are decisive for selection.

Technical data

TypeEAMD-42-40-12-16X25-U
Festo part no.8203728
Size42
Nominal length40 mm
Mounting diameter 112 mm
Mounting diameter 216 mm
Transmittable torque21 Nm
Max. rotational speed6000 1/min
Mass moment of inertia38 kgmm²
Mounting positionAny
Ambient temperature-25 to 60 °C
Storage temperature-25 to 60 °C
Relative air humidity0 - 95 %
LABS (PWIS) conformityVDMA 24364-B2-L
Product weight198 g
Note on materialsRoHS compliant
Weight0.2 kg
ManufacturerFesto
Hersteller-NrEAMD-42-40-12-16X25-U
EAN4052568647391
Zolltarifnummer84836080
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
SeriesEAMD
Bore (mm)12
Temperature (max.)60
