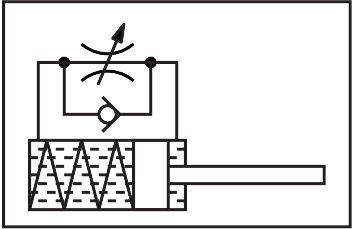

Shock absorber DYSS-G8-2-4-Y1F-F1A - Festo 8119980
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Size | 2 |
|---|---|
| Stroke | 4 mm |
| Cushioning | Self-adjusting |
| Mounting position | Any |
| Position detection | None |
| Max. impact speed | 0.5 m/s |
| Reset time at room temperature | 0.5 s |
| Reset time at min. ambient temperature | 1 s |
| Mode of operation | Pushing, Single-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 ... 70 °C |
| Cushioning length | 4 mm |
| Max. stop force | 60 N |
| Max. tightening torque | 0.4 Nm |
| Max. energy consumption per stroke | 0.1 J |
| Max. energy consumption per hour | 270 J |
| Max. residual energy | 0.003 J |
| Reset force | 0.4 N |
| Min. insertion force | 2.5 N |
| Product weight | 3.9 g |
| Load range | 0.8 kg |
| Type of mounting | Via threaded sleeve |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | High-alloy steel |
| Material piston rod | High-alloy steel |
| Weight | 0.007 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSS-G8-2-4-Y1F-F1A |
| EAN | 4052568636166 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
