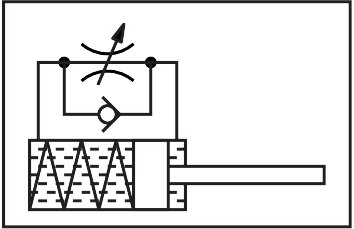

Shock absorber, self-adjusting, size 7, stroke 5 mm, 2 J per stroke DYSS-7-5-Y1F - Festo 8069001
For soft end positions: DYSS shock absorber in size 7 with 2 J energy absorption per stroke. Designed for masses up to 5.5 kg and impact speeds up to 1.5 m/s. The cushioning adapts itself to the load, no adjustment is needed. Corrosion resistance class CRC 2, ambient temperature -10 to 80 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where slides, grippers or workpiece carriers would otherwise run unbraked into the end position, the DYSS-7-5-Y1F converts up to 2 J per stroke into heat. No adjustment is needed on the DYSS in size 7 because the cushioning adapts itself to the load.
Benefits
- Energy absorption up to 2 J per stroke and 12000 J per hour
- Impact speed up to 1.5 m/s, mass range up to 5.5 kg
- Stop force up to 300 N, residual energy max. 0.01 J
- Return time 0.2 s, return force 1.2 N
- Mounting with lock nut, tightening torque max. 3 Nm
- Housing in high-alloy steel, CRC 2
Applications
Typical locations are end positions of slides, cylinders and handling axes as well as stops in conveyor systems. The DYSS-7-5-Y1F is rated for -10 to 80 °C ambient temperature, any mounting position.
Technical data
| Order code | DYSS-7-5-Y1F |
|---|---|
| Festo part number | 8069001 |
| Size | 7 |
| Stroke | 5 mm |
| Cushioning | self-adjusting |
| Mounting position | any |
| Position detection | none |
| Maximum impact speed | 1.5 m/s |
| Reset time at room temperature | 0.2 s |
| Reset time at minimum ambient temperature | 1 s |
| Mode of operation | pushing, single-acting |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 80 °C |
| Cushioning length | 5 mm |
| Maximum stop force | 300 N |
| Maximum tightening torque | 3 Nm |
| Maximum energy absorption per stroke | 2 J |
| Maximum energy absorption per hour | 12000 J |
| Maximum residual energy | 0.01 J |
| Return force | 1.2 N |
| Minimum insertion force | 10 N |
| Product weight | 15 g |
| Load range | 5.5 kg |
| Type of mounting | via lock nut |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | high-alloy steel |
| Material piston rod | high-alloy steel |
| Weight | 0.023 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYSS-7-5-Y1F |
| EAN | 4052568445034 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 5 |
| Seal material | NBR |
| Function | pushing |
| Temperaturbereich | -10-80 °C |
| Temperature (max.) | 80 |
