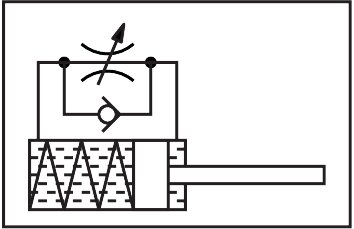

Shock absorber, self-adjusting, size 4, stroke 4 mm, 0.8 J per stroke DYSS-4-4-Y1F-G2 - Festo 8111391

The DYSS-4-4-Y1F-G2 absorbs up to 0.8 J per stroke and 5500 J per hour, protecting drives, stops and workpieces from hard end-position impacts. No adjustment is needed on the DYSS in size 4 because the cushioning adapts itself to the load.

Benefits

• Energy absorption up to 0.8 J per stroke and 5500 J per hour
• Impact speed up to 1 m/s, mass range up to 1.7 kg
• Stop force up to 100 N, residual energy max. 0.006 J
• Return time 0.2 s, return force 0.7 N
• Mounting with lock nut, tightening torque max. 1 Nm
• Housing in high-alloy steel, CRC 2

Applications

Typical locations are end positions of slides, cylinders and handling axes as well as stops in conveyor systems. The DYSS-4-4-Y1F-G2 is rated for -10 to 80 °C ambient temperature, any mounting position.
