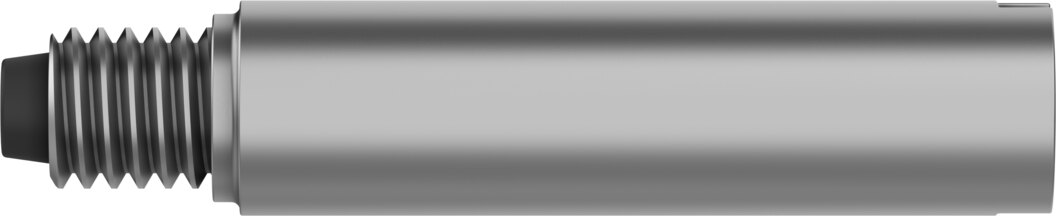

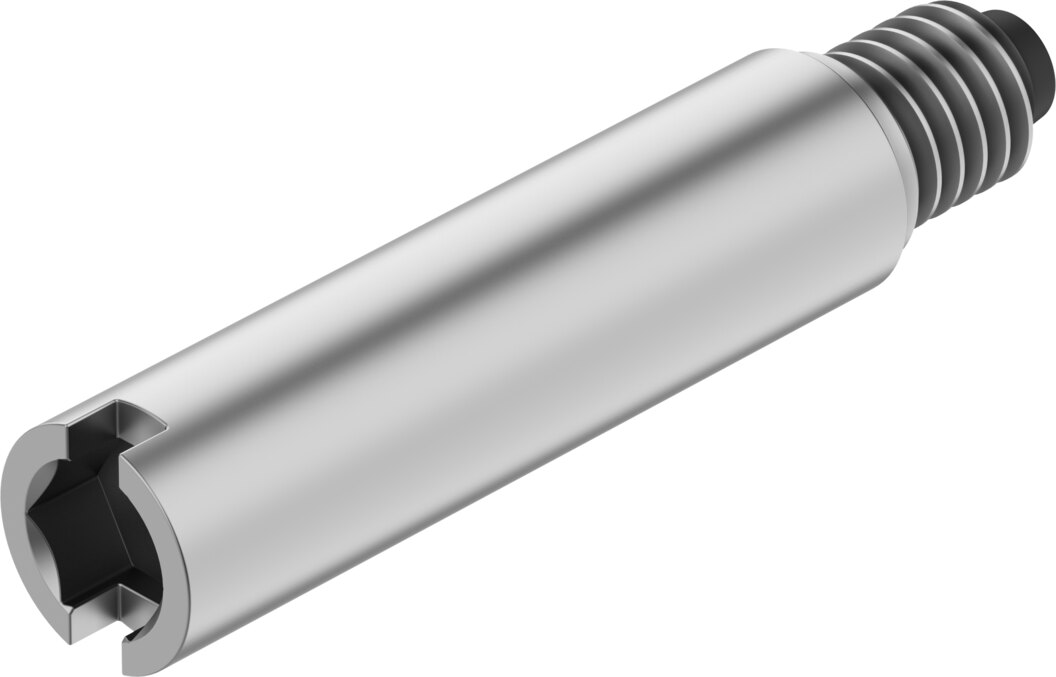

Shock absorber, elastic, without fixed stop, thread M6, stroke 1.5 mm, 0.08 J per stroke DYEF-G8-M6-Y1 - Festo 8073904
Shock absorber DYEF in thread M6 that absorbs up to 0.08 J per stroke and decelerates moving masses gently at the end position. Impact speed up to 0.8 m/s, stroke 1.5 mm. Elastic cushioning without fixed stop, housing in high-alloy steel.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The DYEF-G8-M6-Y1 absorbs up to 0.08 J per stroke and cushions end-position impacts over 1.5 mm. Without a metal fixed stop, the elastomer of the DYEF-G8-M6-Y1 cushions the impact over 1.5 mm.
Benefits
- Energy absorption up to 0.08 J per stroke
- Impact speed up to 0.8 m/s
- Mounting via thread M6, tightening torque max. 1 Nm
- Housing in high-alloy steel, CRC 2
Applications
Typical locations are end positions of slides, cylinders and handling axes as well as stops in conveyor systems. The DYEF-G8-M6-Y1 is rated for -10 to 60 °C ambient temperature, any mounting position.
Technical data
| Order code | DYEF-G8-M6-Y1 |
|---|---|
| Festo part number | 8073904 |
| Size | M6 |
| Stroke | 1.5 mm |
| Cushioning | elastic cushioning rings/pads at both ends without metal fixed stop |
| Mounting position | any |
| Position detection | none |
| Maximum impact speed | 0.8 m/s |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10 to 60 °C |
| Cushioning length | 1.5 mm |
| Maximum tightening torque | 1 Nm |
| Maximum energy absorption per stroke | 0.08 J |
| Product weight | 11.7 g |
| Type of mounting | via threaded sleeve |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | high-alloy steel |
| Weight | 0.012 kg |
| Manufacturer | Festo |
| Hersteller-Nr | DYEF-G8-M6-Y1 |
| EAN | 4052568446062 |
| Zolltarifnummer | 84879059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Stroke [mm] | 1,5 |
| Seal material | NBR |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
