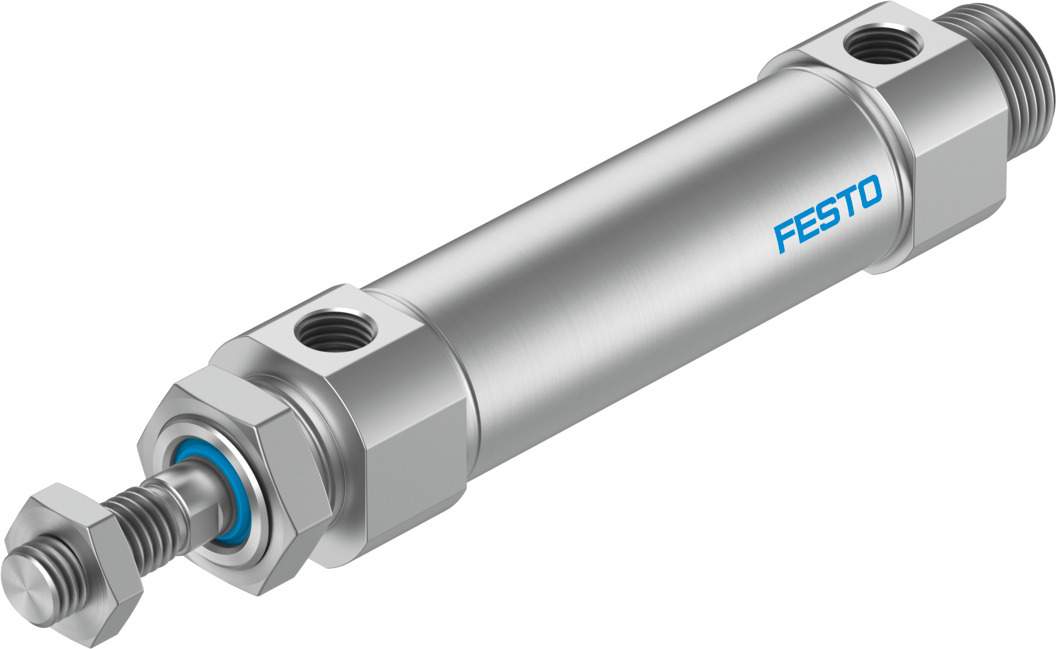

Round cylinder, double-acting, Ø 12 mm, stroke 100 mm DSNU-S-12-100-P-A-MQ - Festo 5211906

With its compact round design the DSNU-S-12-100-P-A-MQ delivers 100 mm of stroke and reaches 67.9 N on advance at 6 bar with a piston Ø of 12 mm and 50.9 N on return. On the DSNU-S-12-100-P-A-MQ, barrel and piston rod are made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 67.9 N advance, 50.9 N return
• Elastic cushioning rings at both ends (P), permissible impact energy 0.07 J
• Cleanroom-suitable, class 5 to ISO 14644-1
• Cylinder barrel and piston rod in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions
• Operating pressure 1.5 to 10 bar

Applications

With 100 mm stroke the DSNU-S-12-100-P-A-MQ handles pushing, lifting, clamping and ejecting tasks in assembly, packaging and handling. It is mounted with separate accessories. For load coupling the piston rod carries the thread M6, matching accessories for piston Ø 12 mm.
