Round cylinder, double-acting, Ø 1 inch, stroke 3 inch DSNU-1"-3"-PPV-A - Festo 546421

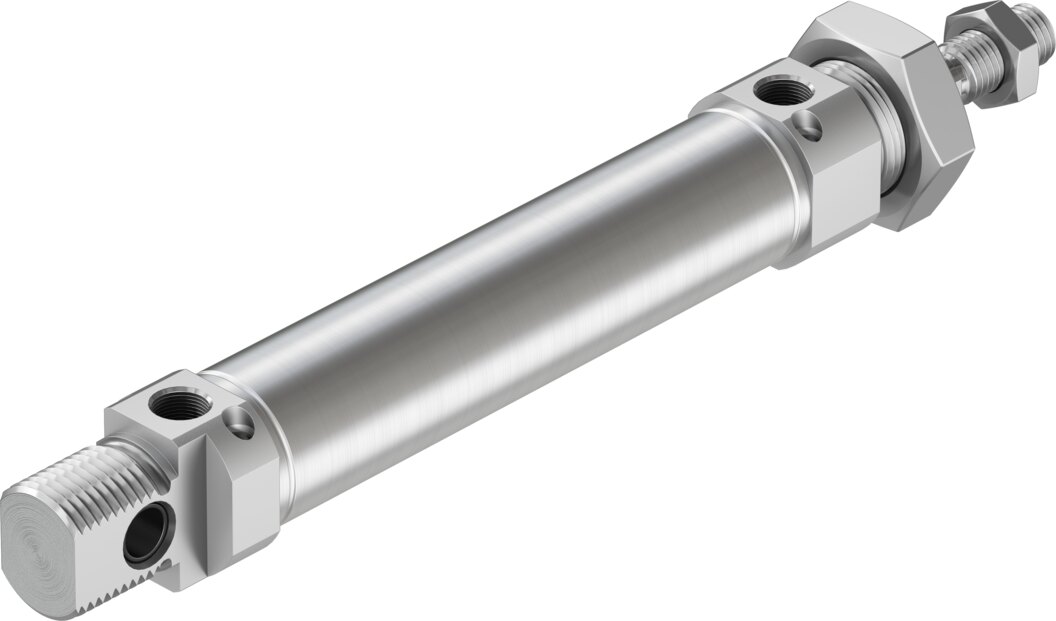

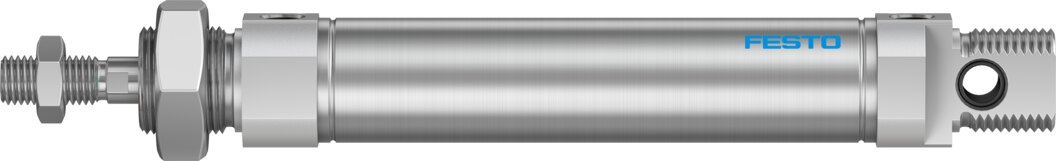

With its compact round design the DSNU-1"-3"-PPV-A delivers 3 inch (76.2 mm) of stroke and reaches 294.5 N on advance at 6 bar with a piston Ø of 1 inch and 247.3 N on return. The end positions can be sensed with proximity switches.

Benefits

• Theoretical force at 6 bar: 294.5 N advance, 247.3 N return
• Pneumatic end-position cushioning PPV, adjustable at both ends, cushioning length 17 mm
• Dimensions based on ISO 6432
• Cylinder barrel and piston rod in high-alloy stainless steel
• Prepared for proximity switches to sense the end positions
• Air connection 1/8 NPT, piston rod thread 3/8-24 UNF-2A

Applications

The DSNU-1"-3"-PPV-A suits stopping, sorting and feeding tasks where 3 inch (76.2 mm) stroke and a piston Ø of 1 inch are sufficient. Rod eyes and couplings screw onto the 3/8-24 UNF-2A piston rod thread, the stroke is 3 inch (76.2 mm).
