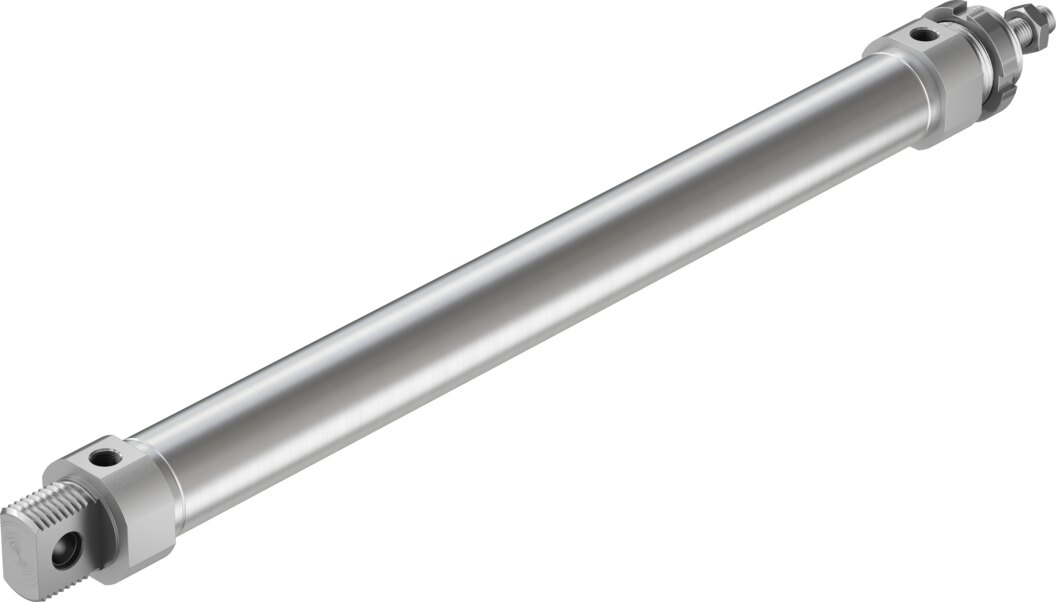

Round cylinder, double-acting, Ø 32 mm, stroke 300 mm DSNU-32-300-PPS-A - Festo 5249973

The Festo round cylinder DSNU-32-300-PPS-A is double-acting with a piston Ø of 32 mm and 300 mm stroke and pushes with 482.5 N at 6 bar. The barrel of the DSNU-32-300-PPS-A is made of high-alloy stainless steel (CRC 2).

Benefits

• Theoretical force at 6 bar: 482.5 N advance, 415 N return
• Cylinder barrel in high-alloy stainless steel
• Cleanroom-suitable, class 6 to ISO 14644-1
• Self-adjusting pneumatic end-position cushioning PPS, cushioning length 14 mm
• Prepared for proximity switches to sense the end positions
• Air connection G1/8, piston rod thread M10x1.25

Applications

With 300 mm stroke the DSNU-32-300-PPS-A handles pushing, lifting, clamping and ejecting tasks in assembly, packaging and handling. It is mounted with separate accessories. Rod eyes and couplings screw onto the M10x1.25 piston rod thread, the stroke is 300 mm.
