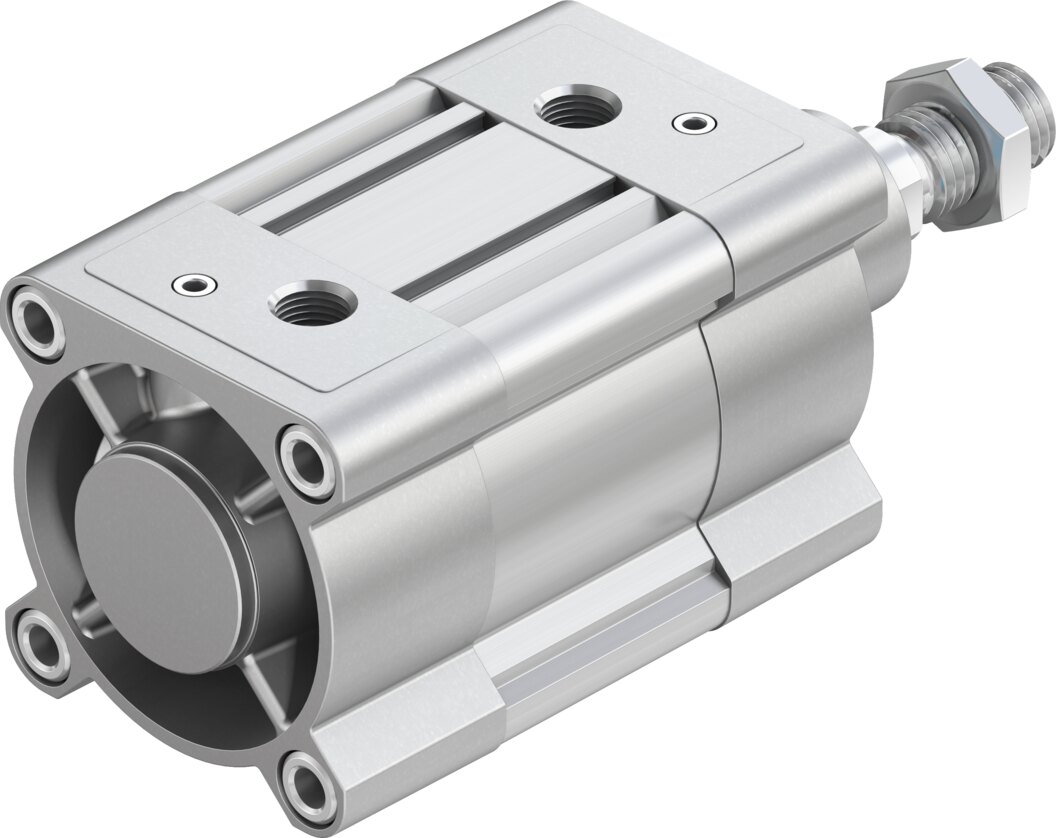

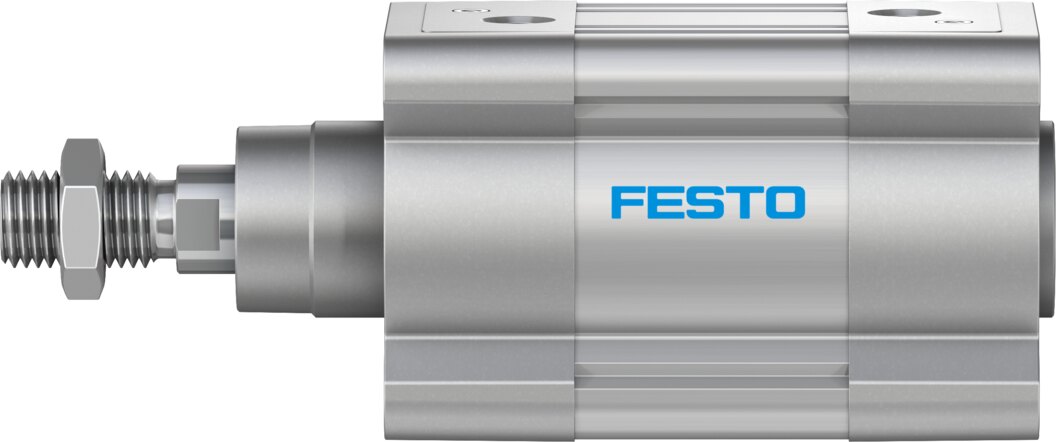

Double-acting standard cylinder Ø 80 mm stroke 180 mm DSBC-80-180-PPSA-N3 - Festo 594974

The Festo standard cylinder DSBC-80-180-PPSA-N3 extends its piston rod over 180 mm, the piston has a diameter of 80 mm. Being double-acting, the Ø 80 mm piston is driven by compressed air in both directions.

Benefits

• Piston Ø 80 mm, stroke 180 mm
• End-position cushioning PPS with no adjustment
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 4.2 kg
• Clearly identified by Festo part number 594974

Applications

Typical tasks for the DSBC-80-180-PPSA-N3 are clamping, ejecting and shifting over 180 mm in assembly and test systems.
