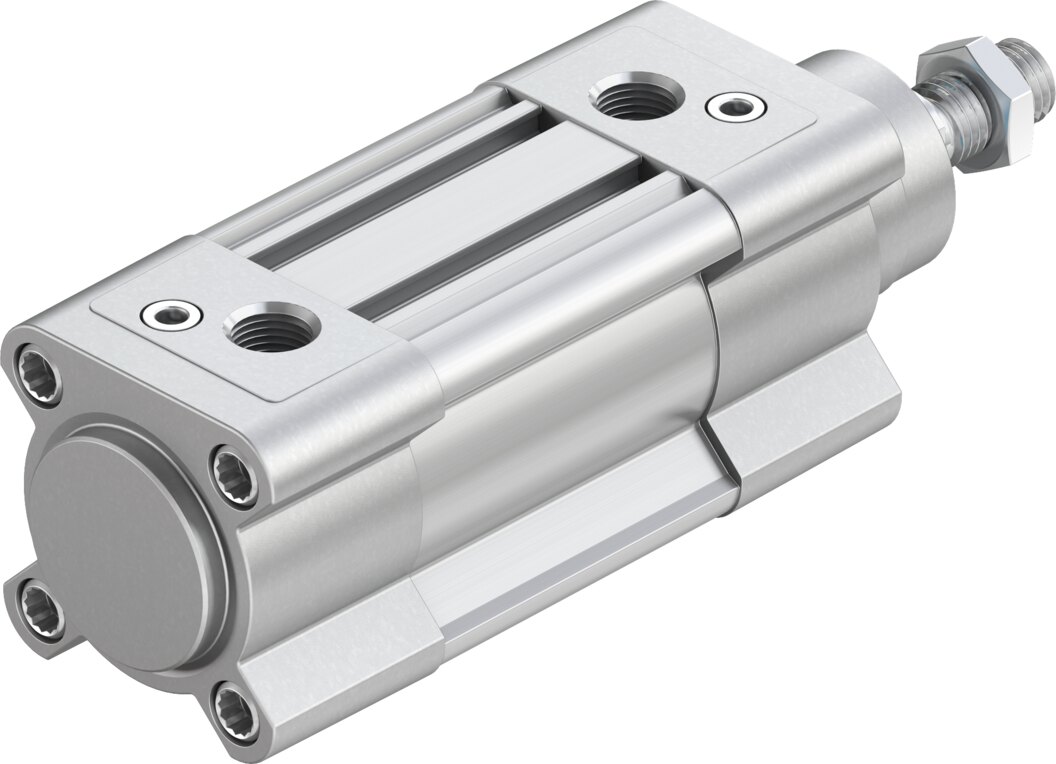

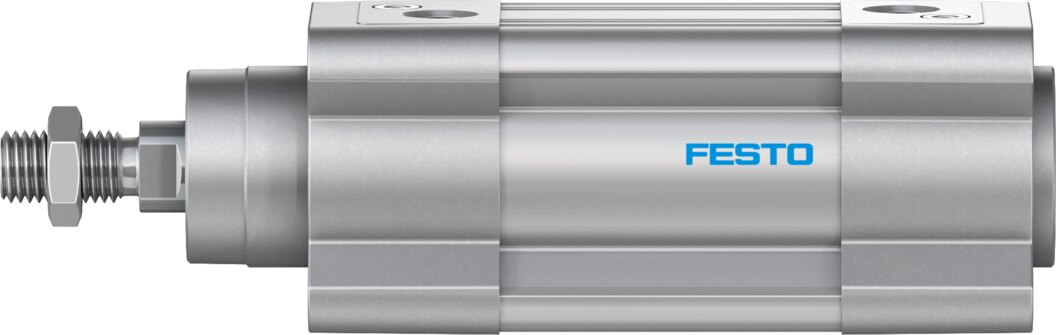

Double-acting standard cylinder Ø 40 mm stroke 420 mm DSBC-40-420-PPVA-N3 - Festo 610506
The double-acting Festo standard cylinder DSBC-40-420-PPVA-N3 moves loads over a 420 mm stroke, the piston measures Ø 40 mm. The code PPVA in the type stands for pneumatic cushioning adjustable at both ends and sensing via proximity switches. It weighs 2.3 kg.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ø 40 mm piston, 420 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-40-420-PPVA-N3. Compressed air drives the piston both ways, so advance and return over 420 mm are powered.
Key benefits
- Piston Ø 40 mm, stroke 420 mm
- Adjustable end-position cushioning PPV
- Position detection via proximity switches
- Double-acting: force in both directions
- Weight 2.3 kg
- Clearly identified by Festo part number 610506
Typical applications
Typical tasks for the DSBC-40-420-PPVA-N3 are clamping, ejecting and shifting over 420 mm in assembly and test systems.
Technical data
| Order type | DSBC-40-420-PPVA-N3 |
|---|---|
| Festo part number | 610506 |
| Piston diameter | 40 mm |
| Stroke | 420 mm |
| Mode of operation | double-acting |
| Cushioning | PPV: pneumatic cushioning, adjustable at both ends |
| Position detection | via proximity switch |
| Weight | 2.3 kg |
| Customs tariff number | 90330090 |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-40-420-PPVA-N3 |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 40 |
| Function | double-acting |
| Series | DSBC |
| Bore (mm) | 40 |
