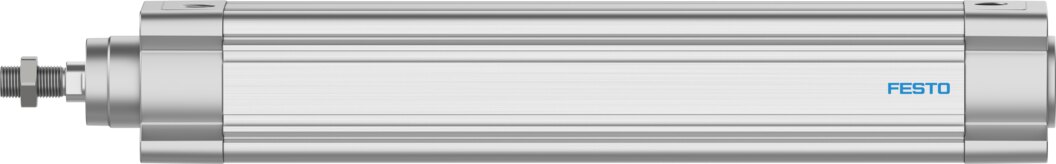

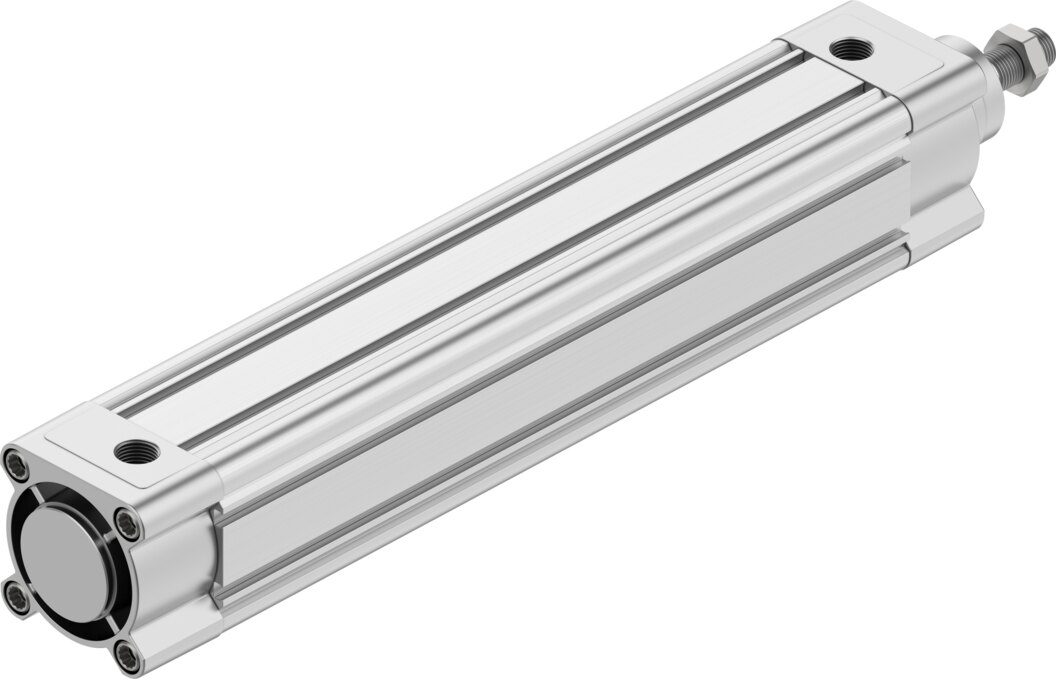

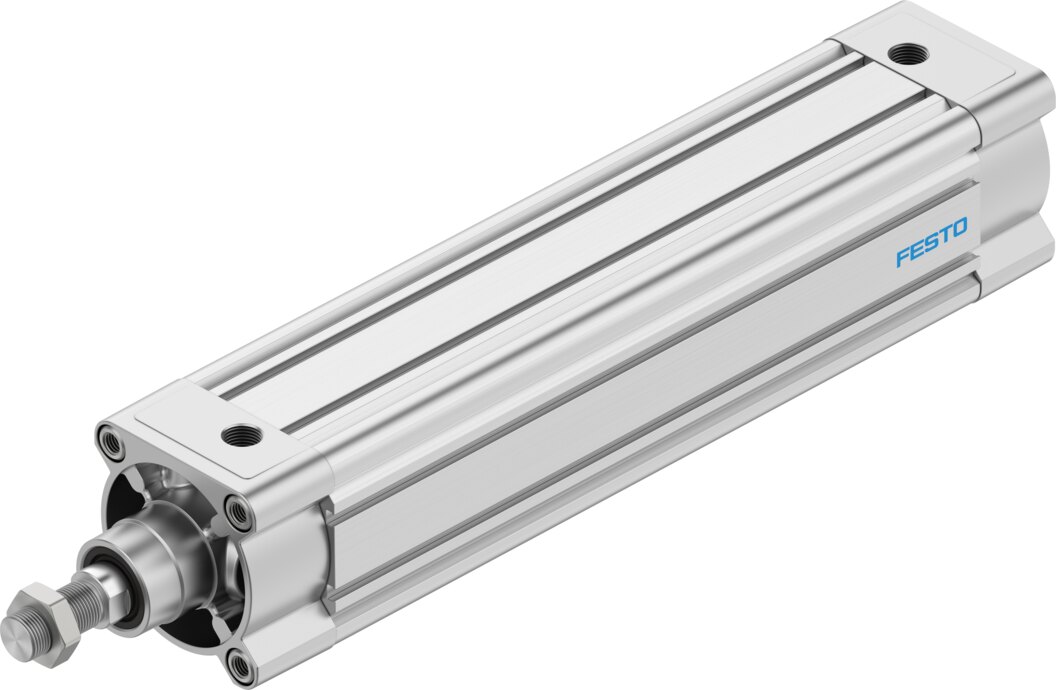

Double-acting ISO 15552 standard cylinder Ø 63 mm stroke 320 mm DSBC-63-320-D3-PPSA-N3 - Festo 3657826

Name: Double-acting ISO 15552 standard cylinder Ø 63 mm stroke 320 mm DSBC-63-320-D3-PPSA-N3 - Festo 3657826
Brand: Festo
SKU: FES-3657826
Price: 229.39 EUR
Availability: InStock

Festo ✓ Original product Brand new

320 mm stroke and 1870 N of advance force at 6 bar: that is what the double-acting Festo ISO 15552 standard cylinder DSBC-63-320-D3-PPSA-N3 with a Ø 63 mm piston provides. With PPS there are no cushioning screws to adjust, permissible impact energy in the end positions is 1.3 J. It weighs 4.717 kg.

Net

€229.39

excl. VAT

Item FES-3657826

Manufacturer no. DSBC-63-320-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

1870 N of theoretical advance force at 6 bar over a 320 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-63-320-D3-PPSA-N3 with a Ø 63 mm piston. Prepared for proximity switches, port G3/8.

Key benefits

Theoretical force at 6 bar: 1870 N advance, 1682 N return
End-position cushioning PPS with no adjustment, up to 1.3 J
Position detection via proximity switches
Pressure range 0.4 to 12 bar
Mounting dimensions to ISO 15552, interchangeable
Piston rod thread m16x1.5, piston rod: high-alloy steel

Typical applications

Typical tasks for the DSBC-63-320-D3-PPSA-N3 are clamping, ejecting and shifting over 320 mm in assembly and test systems. The DSBC-63-320-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.

Technical data

Order type	DSBC-63-320-D3-PPSA-N3
Festo part number	3657826
Stroke	320 mm
Piston diameter	63 mm
Piston rod thread	m16x1.5
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.4 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	1.3 J
Cushioning length	22 mm
Theoretical force at 6 bar, return stroke	1682 N
Theoretical force at 6 bar, advance stroke	1870 N
Moving mass	1230 g
Moving mass for 0 mm stroke	430 g
Additional moving mass per 10 mm stroke	25 g
Product weight	4717 g
Basic weight for 0 mm stroke	1774 g
Additional weight per 10 mm stroke	92 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G3/8
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Weight	3.9 kg
Manufacturer	Festo
Hersteller-Nr	DSBC-63-320-D3-PPSA-N3
EAN	4052568272456
Zolltarifnummer	84123100
