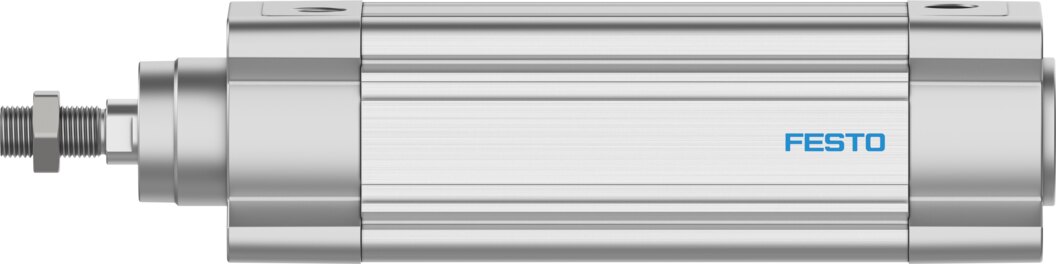

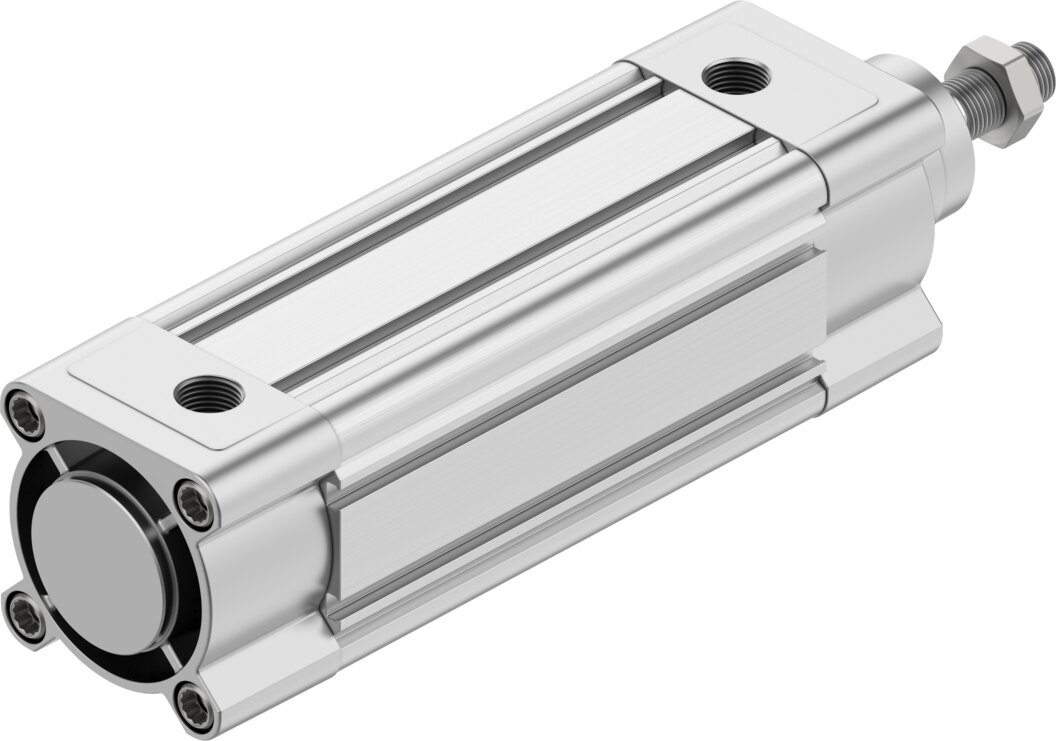

Double-acting standard cylinder Ø 63 mm stroke 260 mm DSBC-63-260-F-PPVA - Festo 609783
The Festo standard cylinder DSBC-63-260-F-PPVA with a Ø 63 mm piston is built for linear movements over 260 mm. The code PPVA in the type stands for pneumatic cushioning adjustable at both ends and sensing via proximity switches. Weight 3.3 kg. The Festo part number is 609783.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ø 63 mm piston, 260 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-63-260-F-PPVA. Compressed air drives the piston both ways, so advance and return over 260 mm are powered.
Benefits
- Piston Ø 63 mm, stroke 260 mm
- PPV cushioning adjustable at both ends
- End positions can be sensed with proximity switches
- Double-acting: force in both directions
- Weight 3.3 kg
- Clearly identified by Festo part number 609783
Applications
Typical tasks for the DSBC-63-260-F-PPVA are clamping, ejecting and shifting over 260 mm in assembly and test systems.
Technical data
| Order type | DSBC-63-260-F-PPVA |
|---|---|
| Festo part number | 609783 |
| Piston diameter | 63 mm |
| Stroke | 260 mm |
| Mode of operation | double-acting |
| Cushioning | PPV: pneumatic cushioning, adjustable at both ends |
| Position detection | via proximity switch |
| Weight | 3.3 kg |
| Customs tariff number | 90330090 |
| Manufacturer | Festo |
| Hersteller-Nr | DSBC-63-260-F-PPVA |
| Zolltarifnummer | 90330090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Piston Ø [mm] | 63 |
| Function | double-acting |
| Series | DSBC |
| Bore (mm) | 63 |
