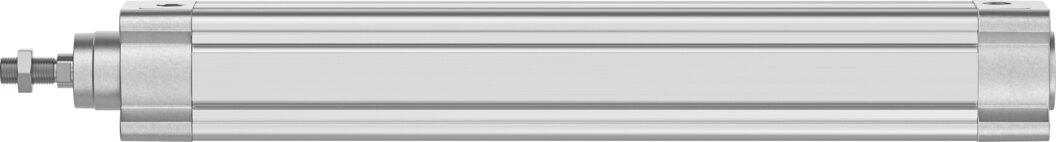

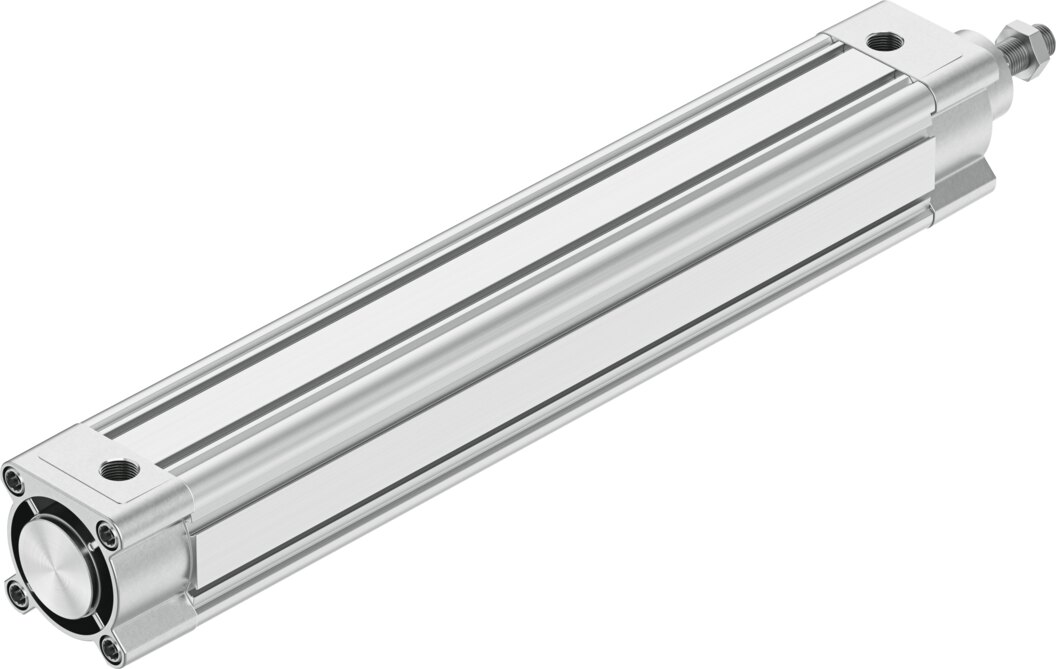

Double-acting ISO 15552 standard cylinder Ø 63 mm stroke 400 mm DSBC-63-400-D3-PPSA-N3 - Festo 8165592

1870 N of theoretical advance force at 6 bar over a 400 mm stroke characterise the double-acting ISO 15552 standard cylinder DSBC-63-400-D3-PPSA-N3 with a Ø 63 mm piston. The DSBC-63-400-D3-PPSA-N3 runs on 0.4 to 12 bar operating pressure at -20 to 80 °C.

Benefits at a glance

• Theoretical force at 6 bar: 1870 N advance, 1682 N return
• Self-adjusting cushioning PPS, 22 mm cushioning length
• End positions can be sensed with proximity switches
• Operating pressure 0.4 to 12 bar
• Mounting dimensions to ISO 15552, interchangeable
• Piston rod thread m16x1.5, piston rod: high-alloy steel

Use

The ISO 15552 standard cylinder handles lifting, pushing and feeding movements in machine and plant engineering, here with a 400 mm stroke. The DSBC-63-400-D3-PPSA-N3 runs on compressed air to ISO 8573-1:2010 [7:4:4], and it can be mounted in any position.
