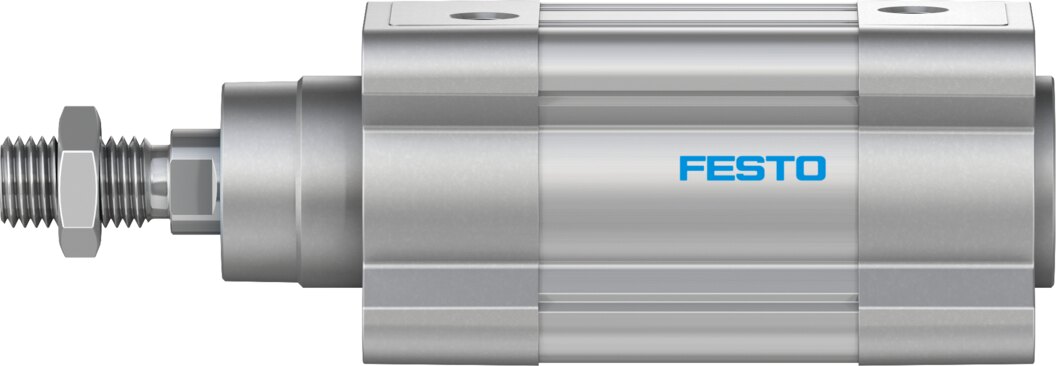

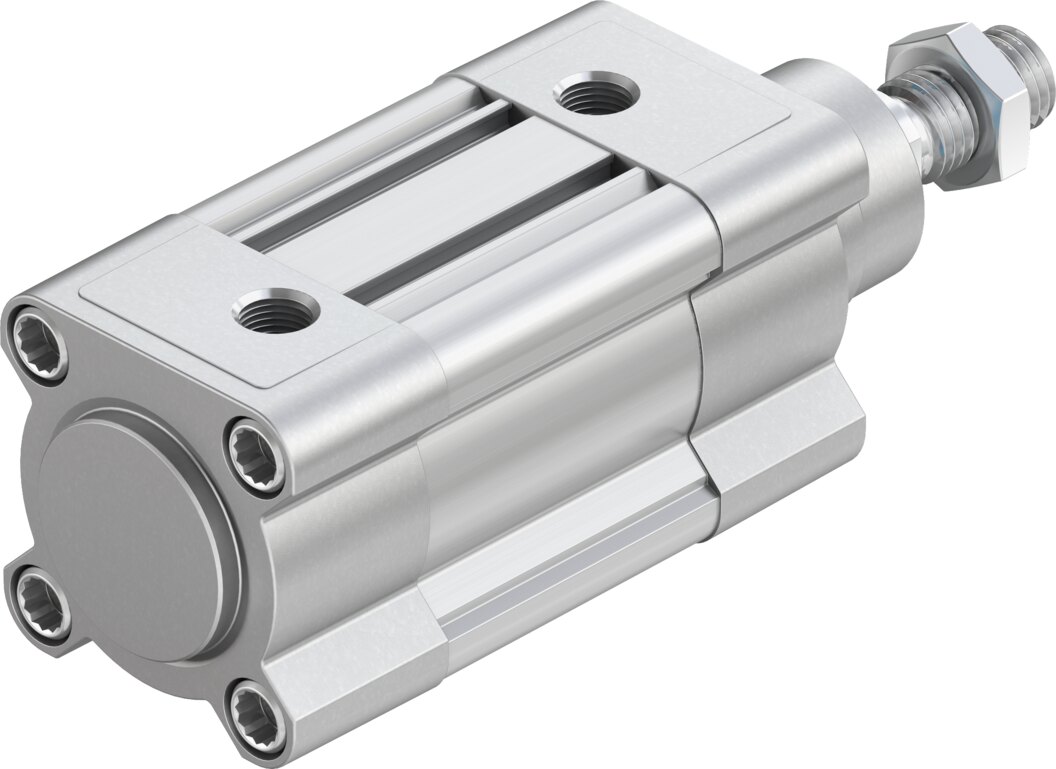

Double-acting standard cylinder Ø 50 mm stroke 1400 mm DSBC-50-1400-PPSA-N3 - Festo 578077

Name: Double-acting standard cylinder Ø 50 mm stroke 1400 mm DSBC-50-1400-PPSA-N3 - Festo 578077
Brand: Festo
SKU: FES-578077
Price: 280.25 EUR
Availability: InStock

Festo ✓ Original product Brand new

1400 mm stroke with a Ø 50 mm piston: these are the key data of the double-acting Festo standard cylinder DSBC-50-1400-PPSA-N3. The code PPSA in the type stands for self-adjusting pneumatic end-position cushioning and sensing via proximity switches. It weighs 9 kg.

Net

€280.25

excl. VAT

Item FES-578077

Manufacturer no. DSBC-50-1400-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The Festo standard cylinder DSBC-50-1400-PPSA-N3 extends its piston rod over 1400 mm, the piston has a diameter of 50 mm. Compressed air drives the piston both ways, so advance and return over 1400 mm are powered.

Benefits

Piston Ø 50 mm, stroke 1400 mm
Self-adjusting cushioning PPS
End positions can be sensed with proximity switches
Double-acting: force in both directions
Weight 9 kg
Clearly identified by Festo part number 578077

Applications

Typical tasks for the DSBC-50-1400-PPSA-N3 are clamping, ejecting and shifting over 1400 mm in assembly and test systems.

Technical data

Order type	DSBC-50-1400-PPSA-N3
Festo part number	578077
Piston diameter	50 mm
Stroke	1400 mm
Mode of operation	double-acting
Cushioning	PPS: self-adjusting pneumatic end-position cushioning
Position detection	via proximity switch
Weight	9 kg
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-50-1400-PPSA-N3
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Piston Ø [mm]	50
Stroke [mm]	1400
Function	double-acting
Series	DSBC
Bore (mm)	50
