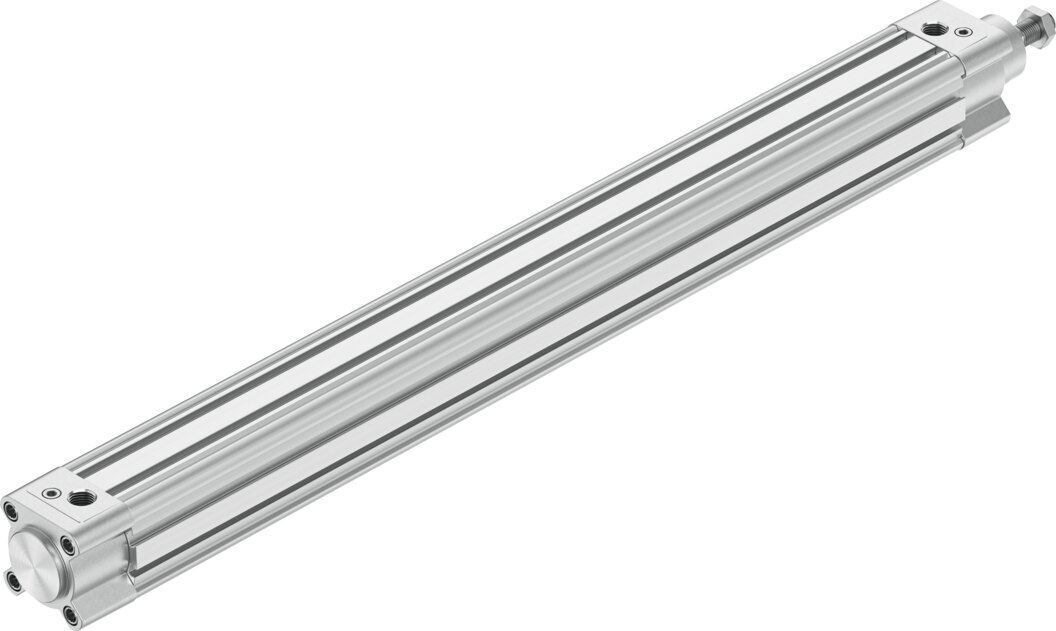

Double-acting ISO 15552 standard cylinder Ø 40 mm stroke 500 mm DSBC-40-500-D3-PPVA-N3 - Festo 8165584

Name: Double-acting ISO 15552 standard cylinder Ø 40 mm stroke 500 mm DSBC-40-500-D3-PPVA-N3 - Festo 8165584
Brand: Festo
SKU: FES-8165584
Price: 184.24 EUR
Availability: InStock

Festo ✓ Original product Brand new

With 754 N of advance force at 6 bar, the double-acting ISO 15552 standard cylinder DSBC-40-500-D3-PPVA-N3 moves loads over a 500 mm stroke, the piston measures Ø 40 mm. The pneumatic end-position cushioning is adjustable at both ends, with a cushioning length of 19 mm. It weighs 3.218 kg.

Net

€184.24

excl. VAT

Item FES-8165584

Manufacturer no. DSBC-40-500-D3-PPVA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At 6 bar the ISO 15552 standard cylinder DSBC-40-500-D3-PPVA-N3 converts compressed air into 754 N advance and 633 N return force, piston Ø 40 mm, stroke 500 mm. Port G1/4, end-position sensing via proximity switches.

Key benefits

754 N advance and 633 N return force at 6 bar
PPV cushioning adjustable at both ends, 19 mm cushioning length
Position detection via proximity switches
Pressure range 0.6 to 12 bar
Dimensions to ISO 15552
Piston rod thread m12x1.25, piston rod: high-alloy steel

Typical applications

With a Ø 40 mm piston, the DSBC-40-500-D3-PPVA-N3 suits feed, pressing and positioning tasks in production lines and special machinery. The operating medium for the DSBC-40-500-D3-PPVA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-40-500-D3-PPVA-N3
Festo part number	8165584
Stroke	500 mm
Piston diameter	40 mm
Piston rod thread	m12x1.25
Cushioning	pneumatic cushioning, adjustable at both ends
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.6 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	0.7 J
Cushioning length	19 mm
Theoretical force at 6 bar, return stroke	633 N
Theoretical force at 6 bar, advance stroke	754 N
Moving mass	1005 g
Moving mass for 0 mm stroke	205 g
Additional moving mass per 10 mm stroke	16 g
Product weight	3218 g
Basic weight for 0 mm stroke	768 g
Additional weight per 10 mm stroke	49 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/4
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Weight	2.9 kg
Manufacturer	Festo
Hersteller-Nr	DSBC-40-500-D3-PPVA-N3
EAN	4052568597870
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/4
Piston Ø [mm]	40
Stroke [mm]	500
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	40
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
