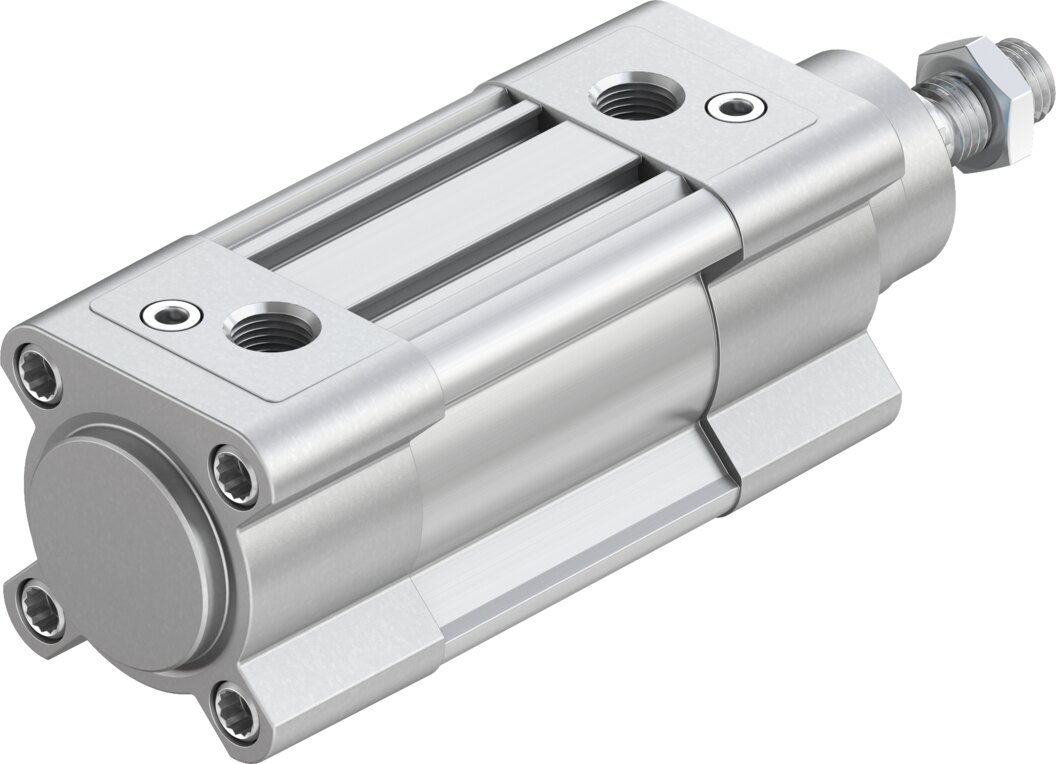

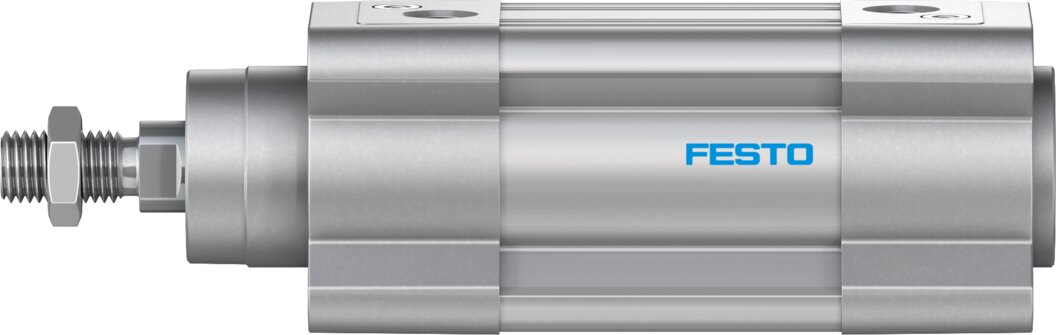

Double-acting standard cylinder Ø 40 mm stroke 1000 mm DSBC-40-1000-D3-PPVA-N3 - Festo 610213

With a 1000 mm stroke and a Ø 40 mm piston, the Festo standard cylinder DSBC-40-1000-D3-PPVA-N3 covers positioning and feed tasks. Being double-acting, the Ø 40 mm piston is driven by compressed air in both directions.

Benefits

• Piston Ø 40 mm, stroke 1000 mm
• Adjustable end-position cushioning PPV
• Position detection via proximity switches
• Double-acting: force in both directions
• Clearly identified by Festo part number 610213

Applications

Typical tasks for the DSBC-40-1000-D3-PPVA-N3 are clamping, ejecting and shifting over 1000 mm in assembly and test systems.
