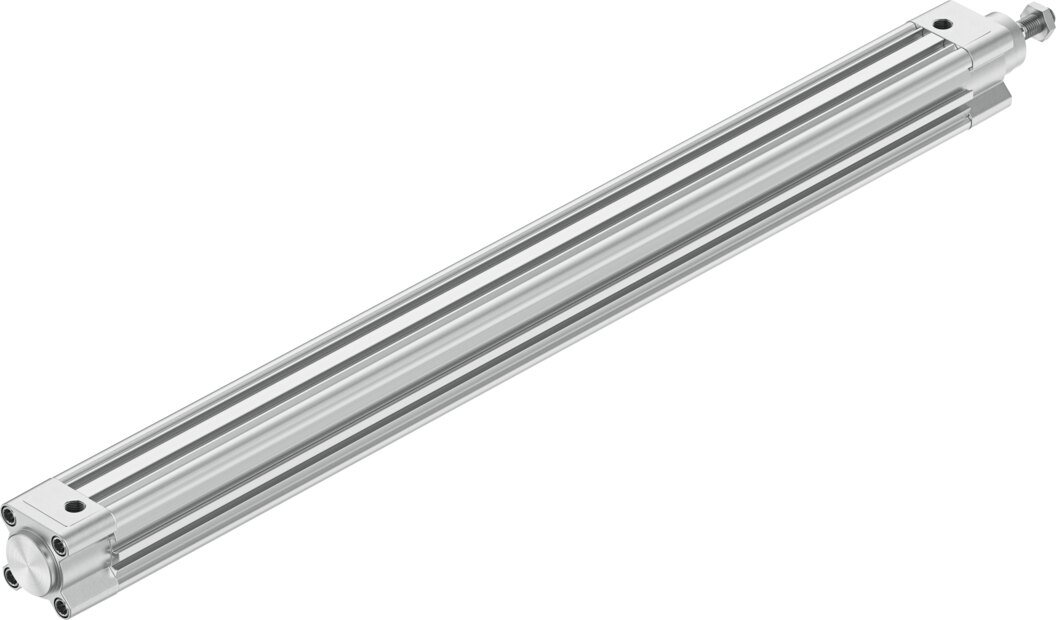

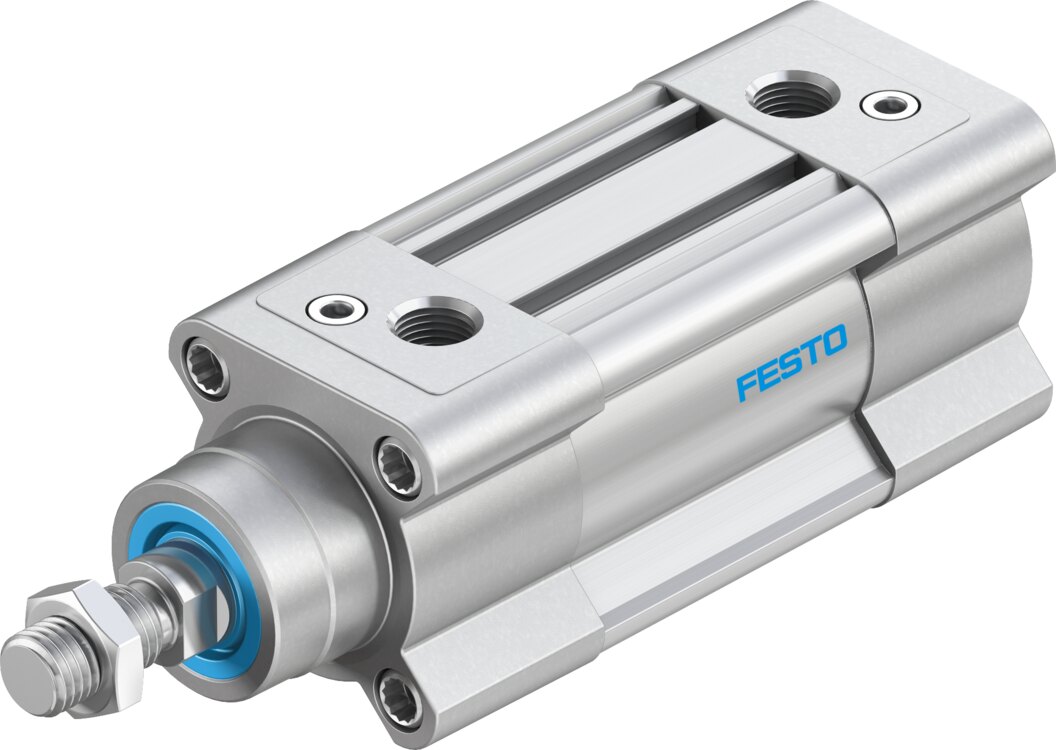

Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 500 mm DSBC-32-500-D3-PPSA-N3 - Festo 8165461

Name: Double-acting ISO 15552 standard cylinder Ø 32 mm stroke 500 mm DSBC-32-500-D3-PPSA-N3 - Festo 8165461
Brand: Festo
SKU: FES-8165461
Price: 155.54 EUR
Availability: InStock

Festo ✓ Original product Brand new

For travel of 500 mm, the Festo ISO 15552 standard cylinder DSBC-32-500-D3-PPSA-N3 with a Ø 32 mm piston supplies 483 N of advance force at 6 bar. Pneumatic end-position cushioning PPS sets itself and acts over 17 mm. Port G1/8, end-position sensing via proximity switches.

Net

€155.54

excl. VAT

Item FES-8165461

Manufacturer no. DSBC-32-500-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At 6 bar the ISO 15552 standard cylinder DSBC-32-500-D3-PPSA-N3 converts compressed air into 483 N advance and 415 N return force, piston Ø 32 mm, stroke 500 mm. Permissible operating pressure is 0.8 to 12 bar, ambient temperature -20 to 80 °C.

Benefits

Theoretical force at 6 bar: 483 N advance, 415 N return
End-position cushioning PPS with no adjustment, up to 0.4 J
End positions can be sensed with proximity switches
Operating pressure 0.8 to 12 bar
Mounting dimensions to ISO 15552, interchangeable
Piston rod thread m10x1.25, piston rod: high-alloy steel

Applications

Typical areas are handling, packaging and conveying, wherever a 500 mm linear stroke is required. The operating medium for the DSBC-32-500-D3-PPSA-N3 is compressed air to ISO 8573-1:2010 [7:4:4].

Technical data

Order type	DSBC-32-500-D3-PPSA-N3
Festo part number	8165461
Stroke	500 mm
Piston diameter	32 mm
Piston rod thread	m10x1.25
Cushioning	self-adjusting pneumatic end-position cushioning
Mounting position	any
Conforms to standard	ISO 15552
Piston rod end	male thread
Design	piston, piston rod, profile barrel
Position detection	via proximity switch
Variants	piston rod at one end
Operating pressure	0.8 to 12 bar
Mode of operation	double-acting
Operating medium	compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 to 80 °C
Impact energy in end positions	0.4 J
Cushioning length	17 mm
Theoretical force at 6 bar, return stroke	415 N
Theoretical force at 6 bar, advance stroke	483 N
Moving mass	560 g
Moving mass for 0 mm stroke	110 g
Additional moving mass per 10 mm stroke	9 g
Product weight	2029 g
Basic weight for 0 mm stroke	480 g
Additional weight per 10 mm stroke	31 g
Type of mounting	with female thread, with accessories
Pneumatic connection	G1/8
Note on materials	roHS compliant
Material cover	coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	wrought aluminium alloy
Material piston rod	high-alloy steel
Material piston rod wiper	TPE-U(PU)
Material buffer seal	TPE-U(PU)
Material cushioning boss	POM
Material cylinder barrel	smooth-anodised wrought aluminium alloy
Material nut	galvanised steel
Material rod wiper	TPE-E
Material bearing	metal polymer compound
Material collar screws	galvanised steel
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-32-500-D3-PPSA-N3
EAN	4052568597849
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Ausführung	einseitige Kolbenstange
Thread	G 1/8
Piston Ø [mm]	32
Stroke [mm]	500
Medium	Compressed air
Function	double-acting
Norm	ISO 15552
Series	DSBC
Bore (mm)	32
Betriebsdruck max [bar]	12
Temperaturbereich	-20-80 °C
Temperature (max.)	80
