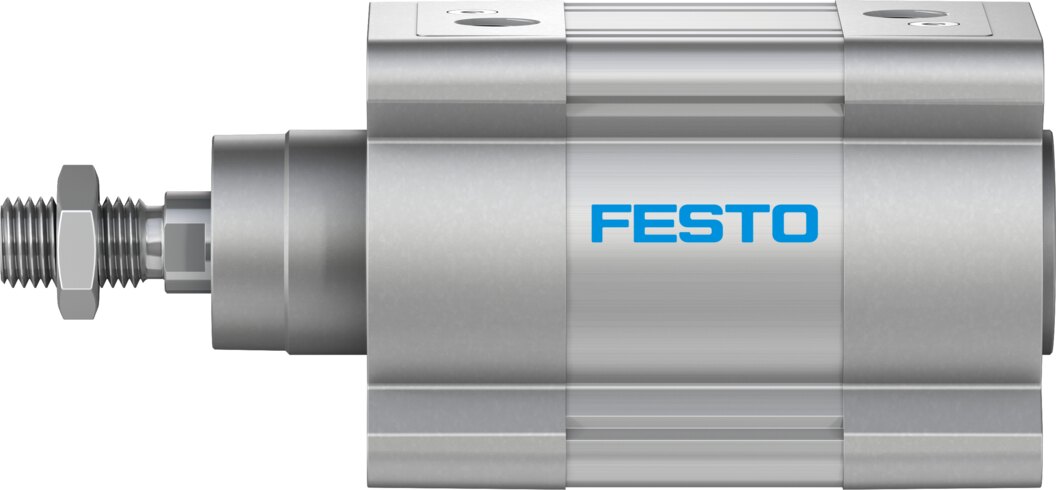

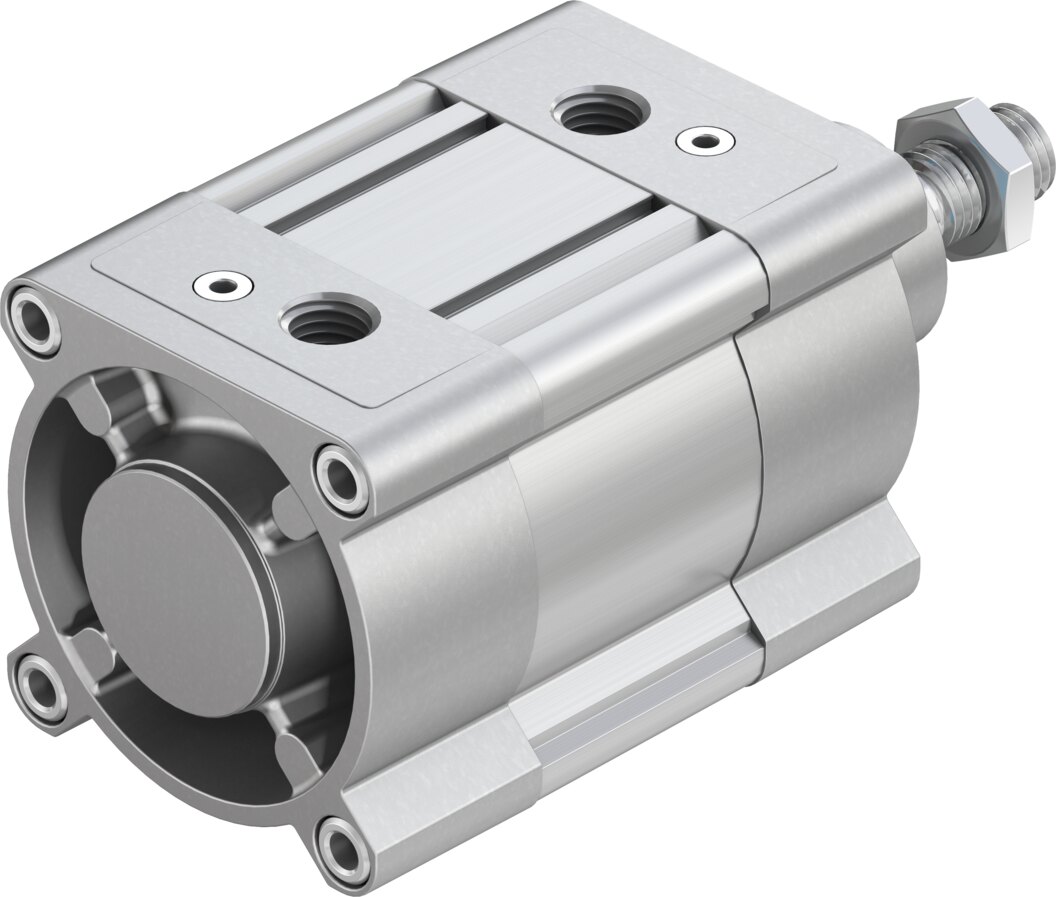

Double-acting standard cylinder Ø 100 mm stroke 450 mm DSBC-100-450-D3-PPSA-N3 - Festo 589497

Name: Double-acting standard cylinder Ø 100 mm stroke 450 mm DSBC-100-450-D3-PPSA-N3 - Festo 589497
Brand: Festo
SKU: FES-589497
Price: 424.52 EUR
Availability: InStock

Festo ✓ Original product Brand new

450 mm stroke with a Ø 100 mm piston: these are the key data of the double-acting Festo standard cylinder DSBC-100-450-D3-PPSA-N3. The code PPSA in the type stands for self-adjusting pneumatic end-position cushioning and sensing via proximity switches. It weighs 10 kg.

Net

€424.52

excl. VAT

Item FES-589497

Manufacturer no. DSBC-100-450-D3-PPSA-N3

Question about this item

Datasheet (PDF)

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Ø 100 mm piston, 450 mm stroke: these are the dimensions of the Festo standard cylinder DSBC-100-450-D3-PPSA-N3. Compressed air drives the piston both ways, so advance and return over 450 mm are powered.

Benefits

Piston Ø 100 mm, stroke 450 mm
End-position cushioning PPS with no adjustment
End positions can be sensed with proximity switches
Double-acting: force in both directions
Weight 10 kg
Clearly identified by Festo part number 589497

Applications

Typical tasks for the DSBC-100-450-D3-PPSA-N3 are clamping, ejecting and shifting over 450 mm in assembly and test systems.

Technical data

Order type	DSBC-100-450-D3-PPSA-N3
Festo part number	589497
Piston diameter	100 mm
Stroke	450 mm
Mode of operation	double-acting
Cushioning	PPS: self-adjusting pneumatic end-position cushioning
Position detection	via proximity switch
Weight	10 kg
Customs tariff number	84123100
Manufacturer	Festo
Hersteller-Nr	DSBC-100-450-D3-PPSA-N3
Zolltarifnummer	84123100
GPSR Herstellerdaten	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Artikelzustand	New
Artikel-Authentizität	Original product
Piston Ø [mm]	100
Stroke [mm]	450
Function	double-acting
Series	DSBC
Bore (mm)	100
